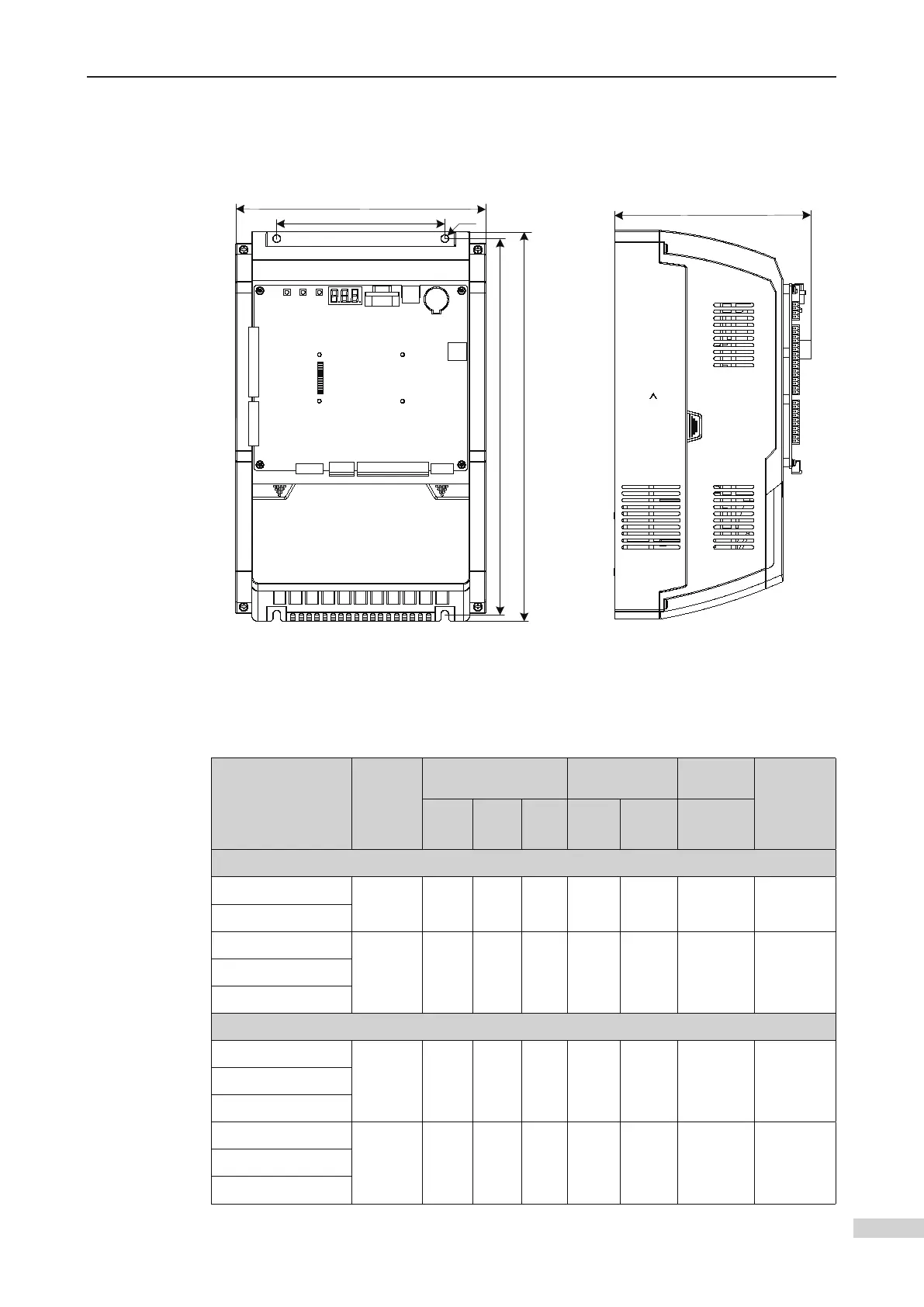

2.1.4 Mounting Dimensions Requirements
󶍾
A
W
B H
D
φ
󶙽
󶙽
Controller Model Structure
Physical Dimensions Mounting Hole
Hole
Diameter
Gross
Weight
(kg)
H
(mm)
W
(mm)
D
(mm)
A
(mm)
B
(mm)

(mm)
 󶏒 
NICE-L-C-2002
Plastic 347 223 143 150 334.5 6.5 5.5
NICE-L-C-2003
220-NICE-L-C-4007
Plastic 347 223 172.5 150 334.5 6.5 7
220-NICE-L-C-4011
220-NICE-L-C-4015
 󶏒 
NICE-L-C-4002
Plastic 347 223 143 150 334.5 6.5 5.5NICE-L-C-4003
NICE-L-C-4005
NICE-L -C-4007
Plastic 347 223 173.5 150 334.5 6.5 7NICE-L -C-4011
NICE-L -C-4015
