3 Peripheral Devices and Options
-
116
-
3.3.3 Display Board (MCTC-HCB)
As an important interface between users and the control system, the MCTC-HCB
This board can also be used as car display board.
Inovance provides many types of display boards. The following part describes only
two common types. If the types available cannot meet your requirements, you can use
a parallel-serial conversion board (HCB-B)
to make the board provided match your own. For any further requirement, refer to the
MCTC-HCB Display Board Selection Manual with data code 19010457.
Common MCTC-HCB types
Name Description Size (mm)
MCTC-HCB-H Dot-matrix display board (red) 144 × 70 × 18
MCTC-HCB-R1
Ultrathin dot-matrix display board
(red)
144 × 70 × 10
MCTC-HCB-H: Dot-matrix display board
■
Appearance and dimensions
22.9
56.
0
144.0
70.0
134.0
22.
9
39.1
34
.3
S1
CN1
JP1
JP2
JP3
JP
4
UP
DOWN
MCTC-
HCB
-H
4-Φ
4.2
9.9
22.5
1
2
MCTC-HCB-H
1 - Plastic support higher than 1 cm
2 - Self-tapping screw 4-φ4.9x30

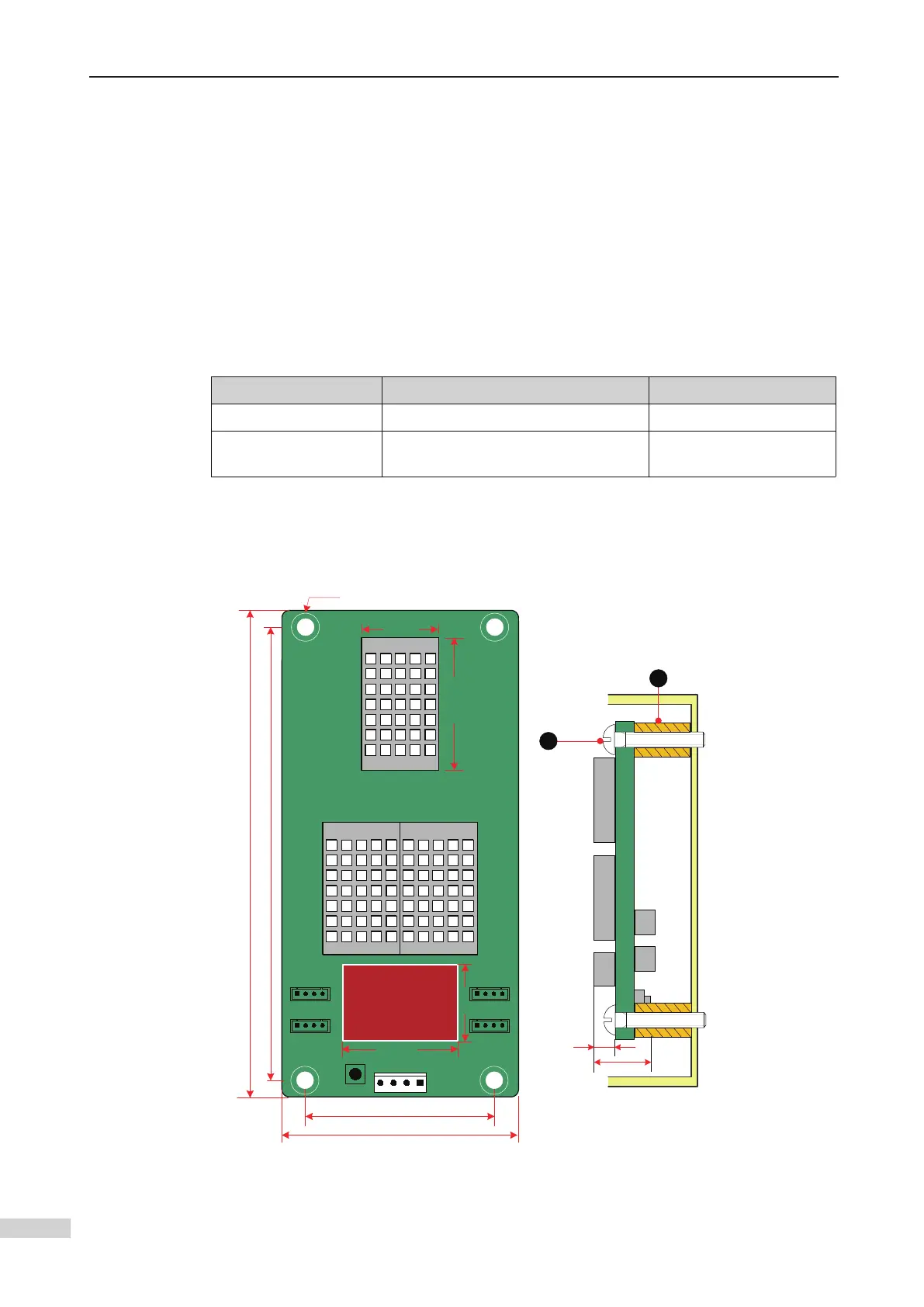

Appearance, dimensions, and installation method of MCTC-HCB-H
