Product Information
‑22‑
2.2 Components of Servo Drives and Servo Motors
2.2.1 Servo Drives in Size A (Rated Power: 0.2 kW to 0.4 kW)
CN5
CN6

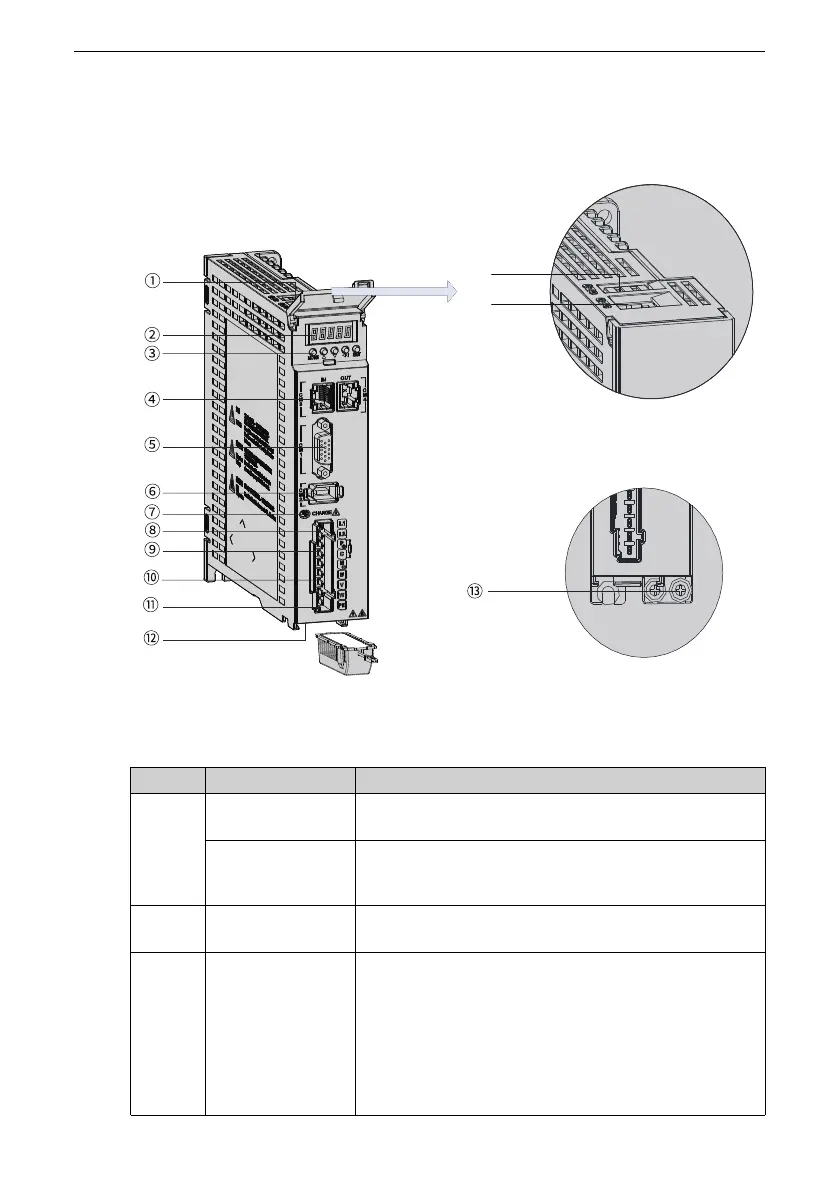

Figure 2‑1 Components of servo drives in size A (SV660FS1R6I, SV660FS2R8I)
Table 2–1 Description of components (SV660FS1R6I, SV660FS2R8I)
No. Name
Description
①
CN6 (STO safety
function terminal)
Connected to external functional safety signal for
functional safety purpose.
CN5
(communication
terminals)
Connected to RS‑232 communication instruction device.
②
5‑digit LED display
The 5‑digit 8‑segment LED display is used to show servo
system’s running state and parameter setting.
③
Keys
MODE: Used to switch parameters in sequence.
△: Used to increase the value of the blinking bit.
▽: Used to decrease the value of the blinking bit.
◁: Used to shift the blinking bit leftwards.
(Hold down: Turning to the next page when the displayed
number exceeds five digits)
SET: Used to save modifications and enter the next
menu.
