Installation
‑42‑

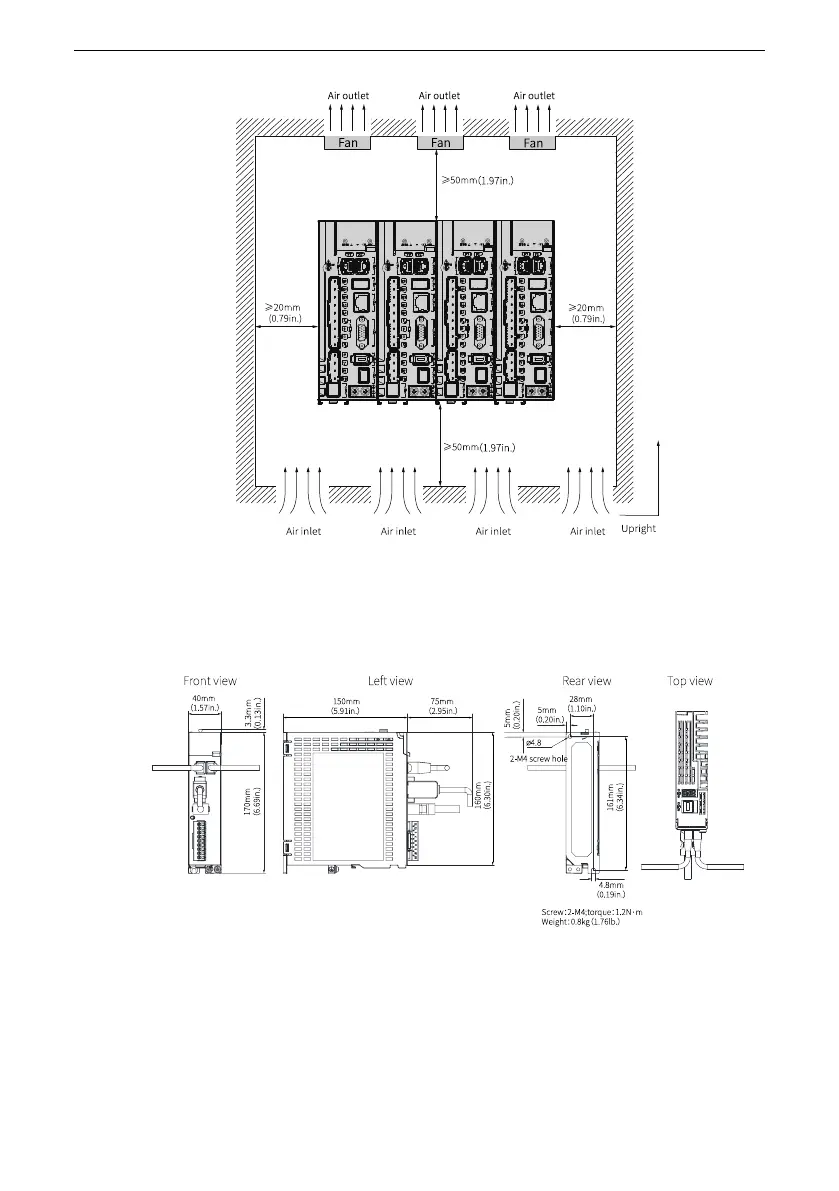

Figure 3‑4 Zero‑clearance installation
3.2.3 Installation Dimensions
Drives in Size A (Rated Power: (0.2 kW to 0.4 kW): SV660FS1R6I, SV660FS2R8I
Figure 3‑5 Dimension drawing of servo drives in size A
