1.5 Cu. Ft. Over-the-Range Convection Microwave

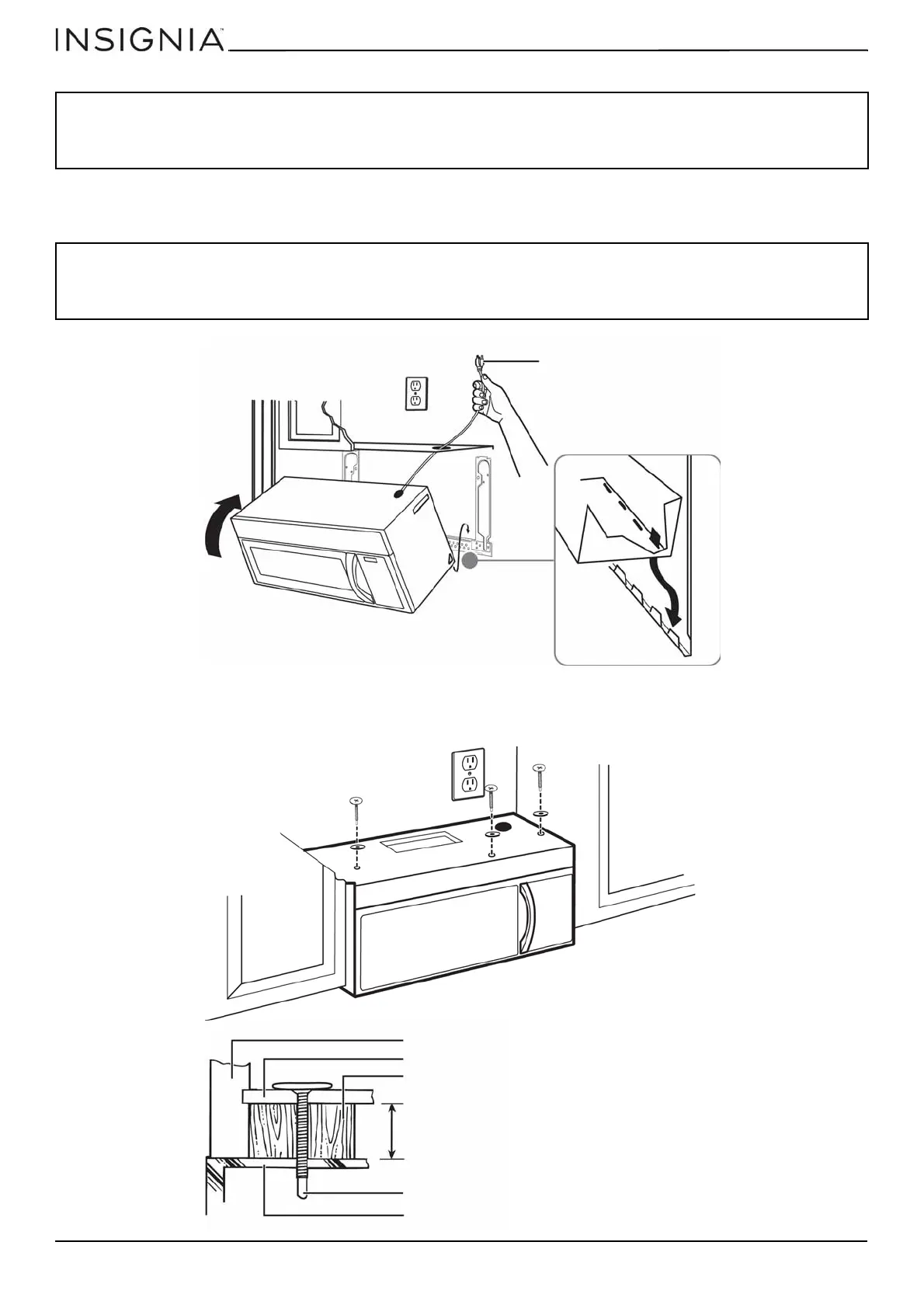

Step 8: Option B - Mount the microwave
1 If your cabinet is metal, insert the nylon grommet into the power cord hole to prevent cutting the cord.
2 Lift the microwave, tilt it forward, and hook the slots on the back bottom edge onto the four lower tabs of the
mounting plate. Rotate the front of the microwave up against the bottom of the cabinet.
3 Insert a self-aligning screw through the top, center cabinet hole and temporarily secure the microwave by turning the
screw at least two full turns (it will be fully tightened later).
4 Insert two self-aligning screws through the outer top cabinet holes, securing each screw with at least two full turns.
5 While holding the microwave up against the wall and cabinet, fully tighten the three screws.
Caution:
• For easier installation and personal safety, we recommend that two people install this microwave oven.
• Do not grip or use the handle during installation.
• To keep the power cord tight while mounting the microwave oven, thread the power cord through the hole in the bottom of the top
cabinet.
Notes:
• We recommend using filler blocks if the front of the cabinet hangs below the cabinet’s bottom shelf.
• If filler blocks are not used, damage may occur from over-tightening the screws.
• Be sure to keep the power cord tight.
• Do not pinch the cord, especially when mounting flush to the bottom of the cabinet.
Thread the power cord through the
cable hole in the top cabinet. Keep it
tight throughout steps 1-2.
Front of cabinet
Bottom of cabinet
Filler block (optional)
Self-aligning machine screw
Top of microwave
Equivalent to depth of cabinet recess
To Next Page
