1.5 Cu. Ft. Over-the-Range Convection Microwave
Step 2: Align the rear wall template
1 Use a level to make sure that the bottom of the cabinet is level.
2 Draw a vertical line down the center of the wall in the mounting space. This is where the center of your template will be.
3 Draw a horizontal line at the height of the front of your cabinet. This is where the top of your template will be. If the
bottom of your cabinet is flat, make sure that you leave space for the power cord.
4 Trim the rear wall template along the dotted line.
5 Tape the template in place so that it is centered on the vertical line and the top edge is aligned with the horizontal line.
6 Find a hole that aligns with a stud (this is C or D on the template).
Note: If the rear wall template is damaged or unusable, measure and mark the wall with the dimensions at the end of this step.
Notes:
• If installing the microwave beneath smooth, flat cabinets, make sure that you leave enough space for the power cord.
• If cabinets have decorative trim that interferes with the microwave installation, remove the trim to install the microwave properly and to
make sure that it is level.
Warning: You must mount to at least one stud.

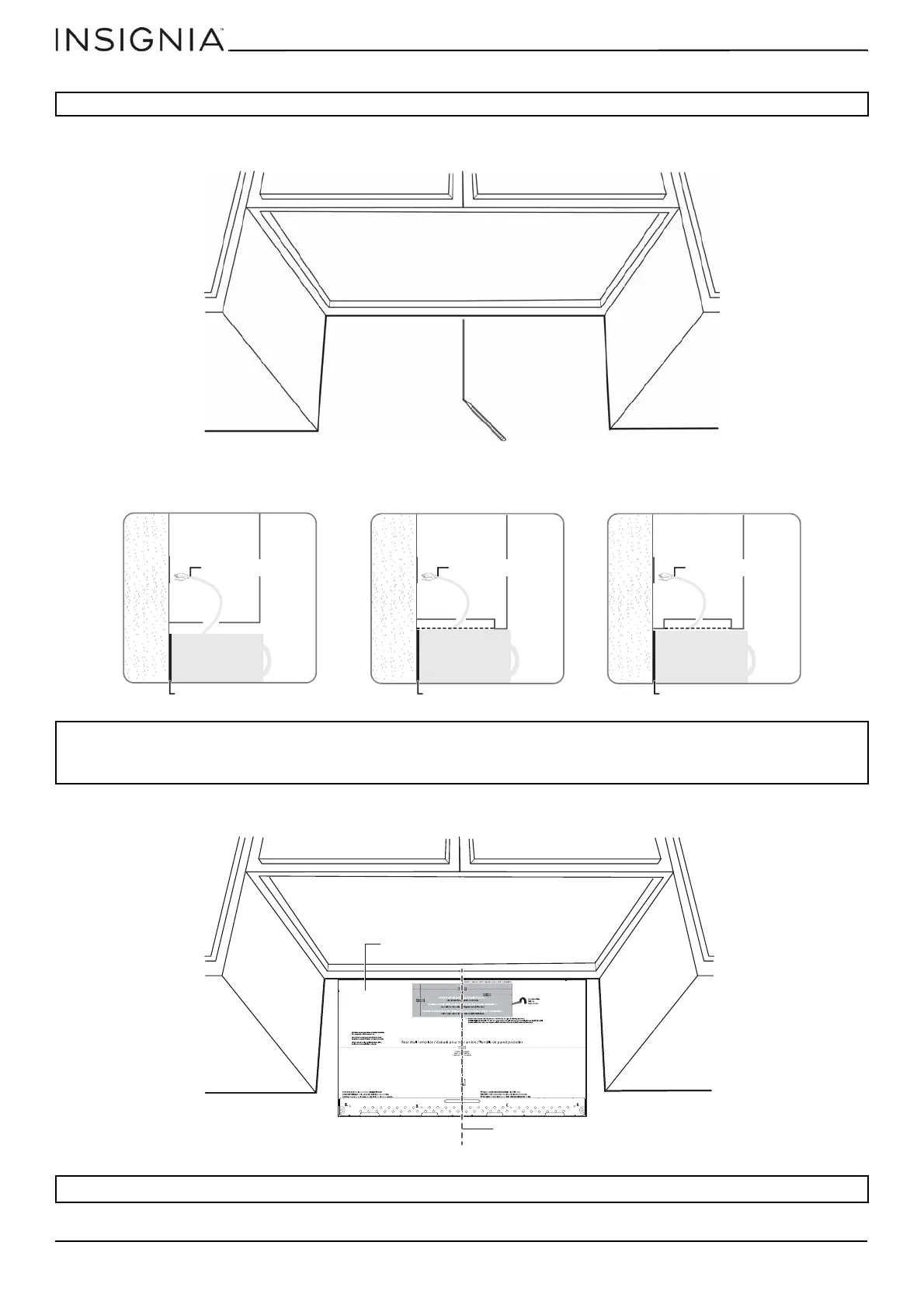

Rear wall template
Cabinet
W
A
L
L
Flat bottom:
Front overhang:
Framed:
Cabinet
Cabinet
Power cord
Power cord
Power cord
W
A
L
L
W
A
L
L
Rear wall template
Rear wall template
Vertical line in the center
Top of the template aligned
with the horizontal line
To Next Page
