Instron 2712 Series User Manual

2-3
2712-001 and 2712-013
Specifications
Table 2-2. 2712-001 and 2712-013 Dimensions
Letter
Designation Dimension
Measurement
mm (in)
A Width 60 (2.4)
B Effective length
2712-001 Upper grip
Lower grip
2712-013 Upper grip
Lower grip
90 (3.5)
125 (4.9)
90 (3.5)
90 (3.5)
C Throat depth 28 (1.1)
D Throat depth 5 (0.2)

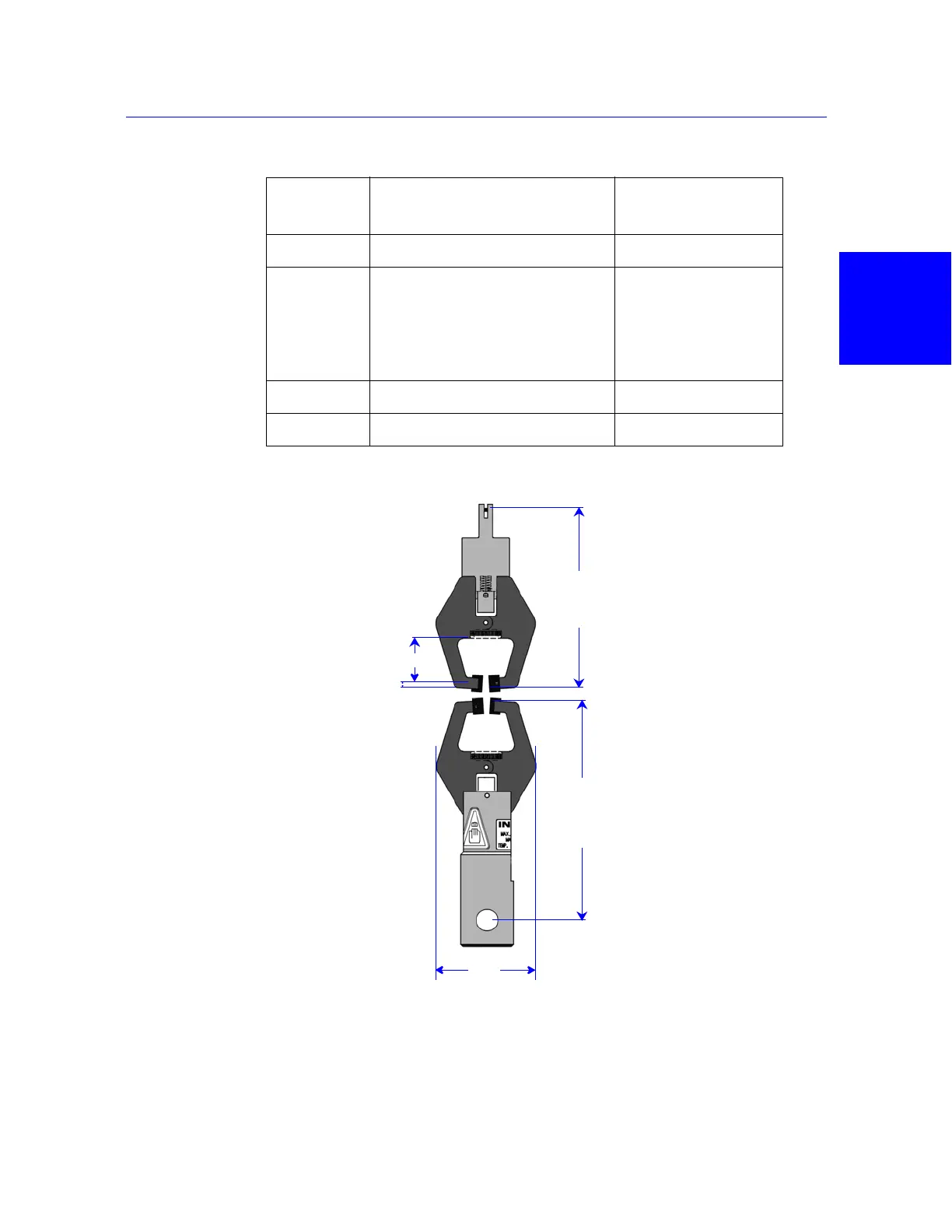

Figure 2-1. 2712-001 and 2712-013 Dimensions
A
B
B
C
D
