Installing Jaw Face Shields
Jaw face shields are available for grips 2732-008 and 2732-009.
Jaw face shields reduce the risk of pinching your fingers in the grips as they close
on a specimen. The shields are designed so that you can replace the faces with the
shields still in place.
Figure 3-6 on page 3-8 shows how to install jaw face shields. You can install the
shields using the holes on the front or back, using two M4 x 6 thumbscrews for
each shield. Adjust the shields so that the space between them is only slightly
more than the specimen thickness.

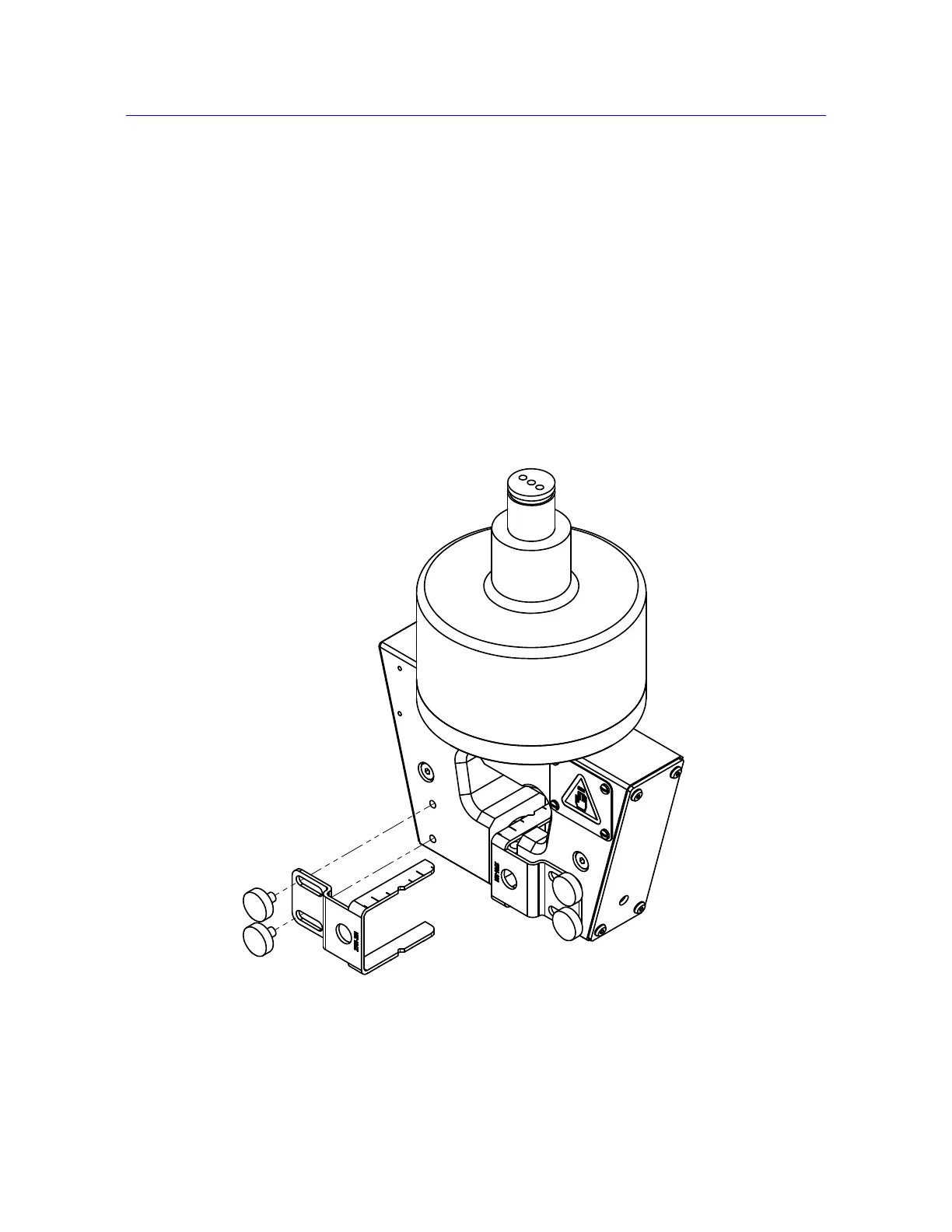

Figure 3-6. Installing Jaw Face Shields
