3-9
Connecting Pneumatics
Installation
Connecting Pneumatics
The following is a list of the possible configurations for connecting the pneumatic
grips:
• You can connect Series 2712-002 and 2712-019 to the air supply and operate
them with their integral toggle switch.
• You can connect any Series 2712 or 2732 grip to the air supply and operate it
with an optional manual foot switch.
• All grips can be connected to the air supply and operated from an optional
grip controller unit.
Grip Nozzle
All Instron pneumatic grips have a quick release type connector. Figure 3-7 on
page 3-9 illustrates the grip nozzle and hose coupling.

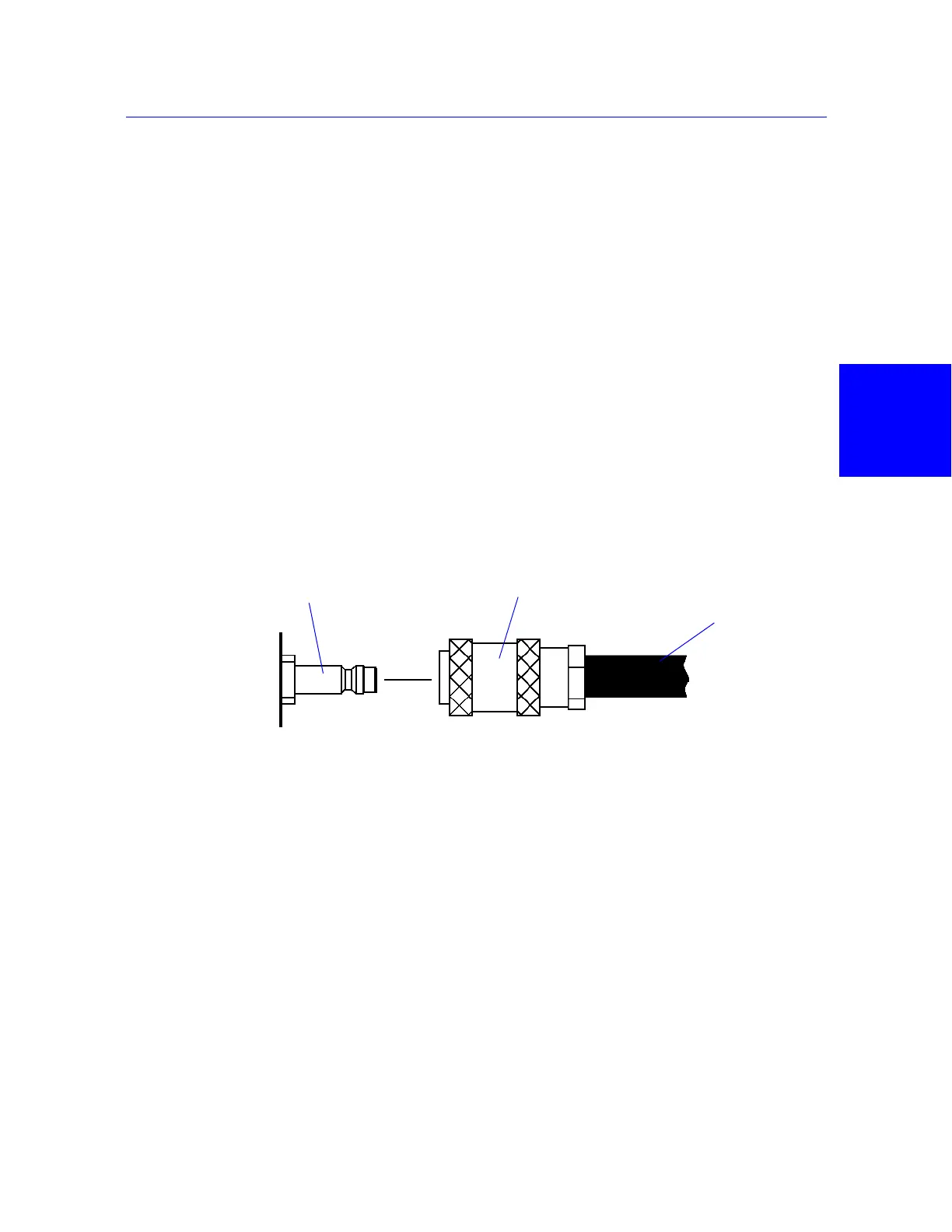

Figure 3-7. Grip Nozzle Connection
Quick connect coupling
Hose
Male fitting
