Instron 34SC-5 - Page 83

83
Adapters
Product Support: www.instron.com

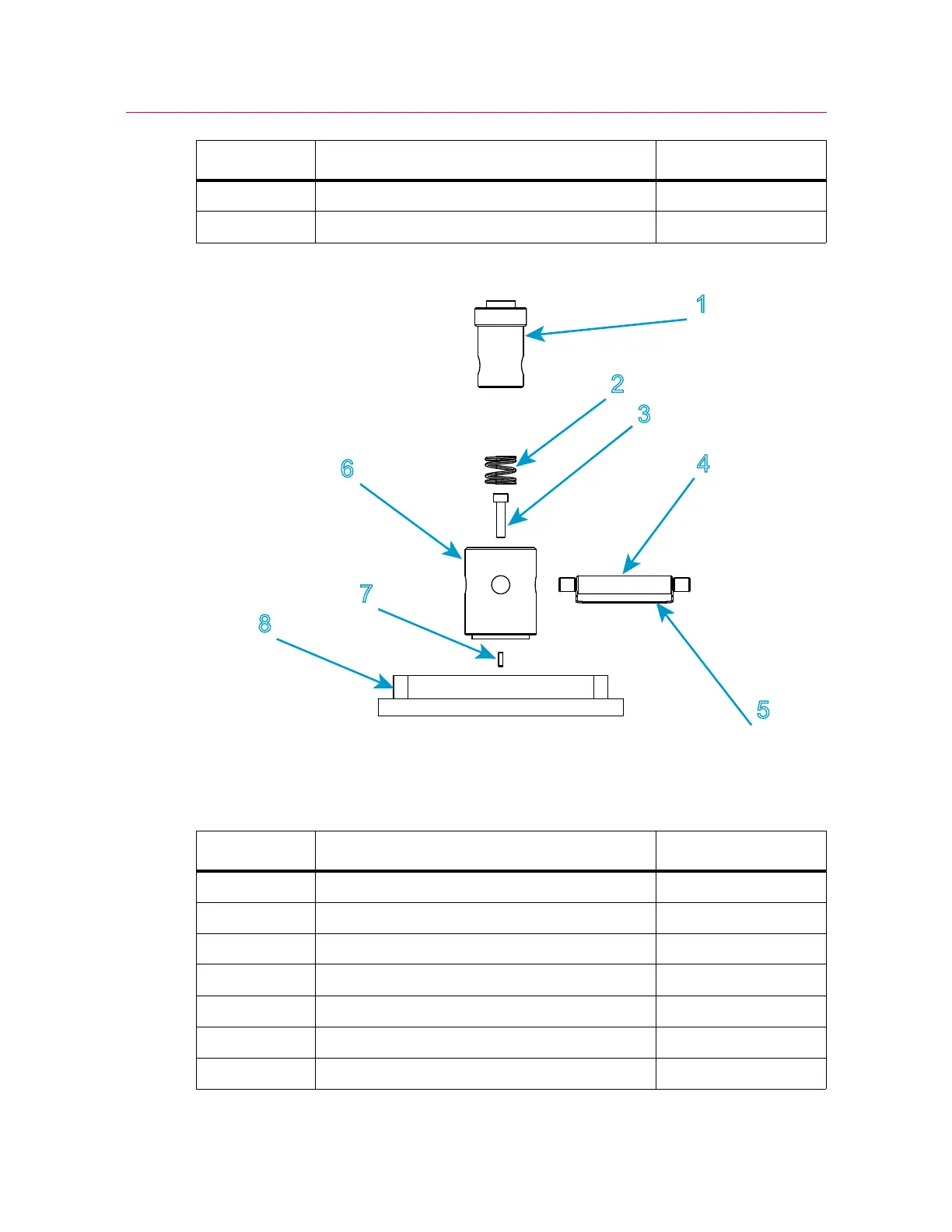

Figure 19. Type D base adapter
Legend for Figure 19
7 Load cell anti-rotation pin (x2) 705K84
8 Load frame base beam
Label Component Part number
5
4
3
1
2
6
8
7
Label Component Part number
1Grip
2 Compression spring 66-5-6
3 M6 screw 201V35
4 Clevis pin T29-515
5 Clevis pin clip T1223-1053
6 Type D base adapter T581-48
7 Load cell anti-rotation pin (x2)
1
705K84
