Chapter: Lifting and handling
52 M10-17411-EN

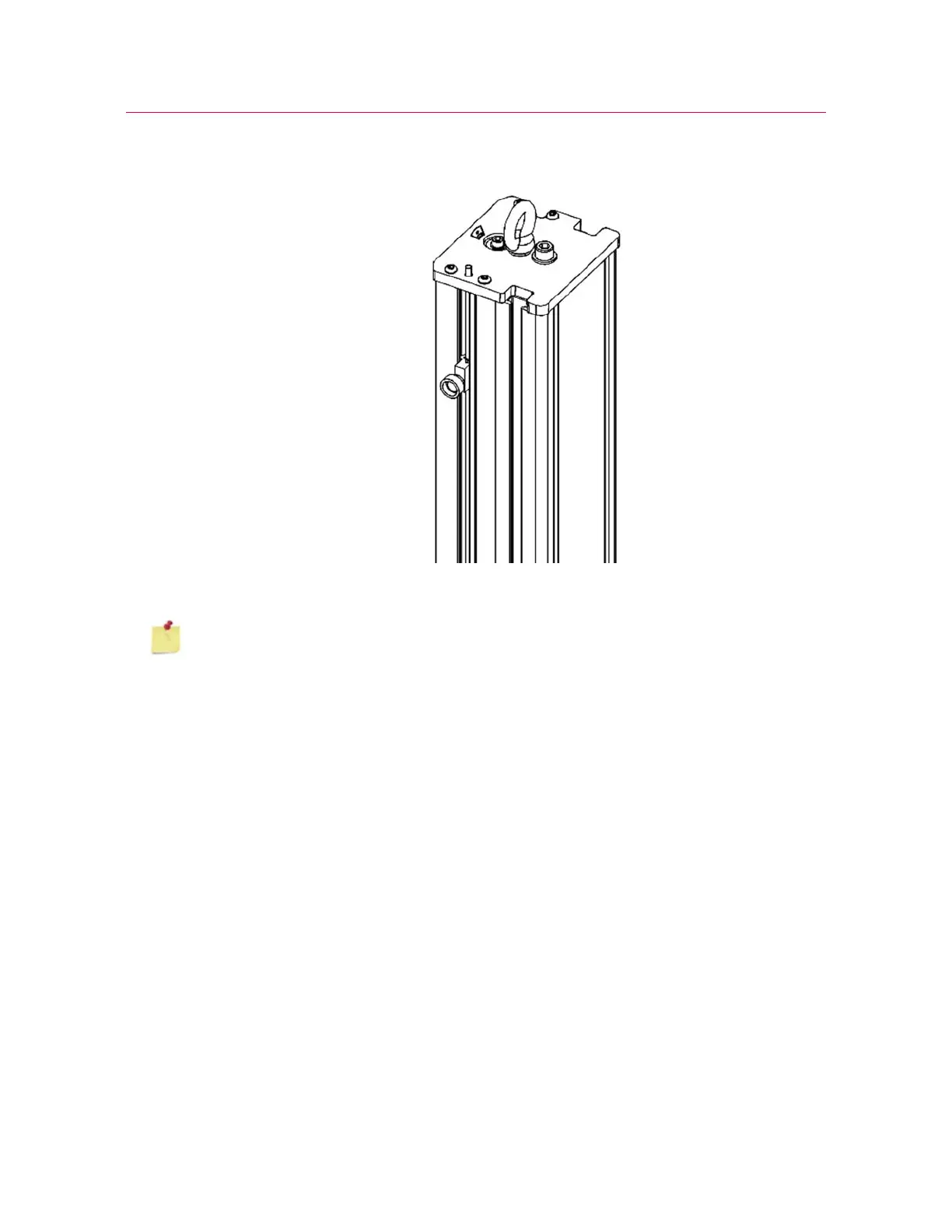

Figure 9. Eyebolt for lifting the frame
For some systems, the eyebolt is removed prior to shipping. If the eyebolt is missing
from your machine, it will be packed in an envelope inside one of the unsealed boxes,
usually in the box that contains the system documentation. Screw the eyebolt into
the top of the frame column as shown in Figure 9 on page 52.
8. Slowly and carefully lift the frame clear of the wooden pallet.
9. Move the frame to its operating location.
10. Place the load frame carefully into position.
11. Retain all packing materials until the system is satisfactorily installed and all parts,
assemblies and accessories have been located.
