Front & Rear Panels

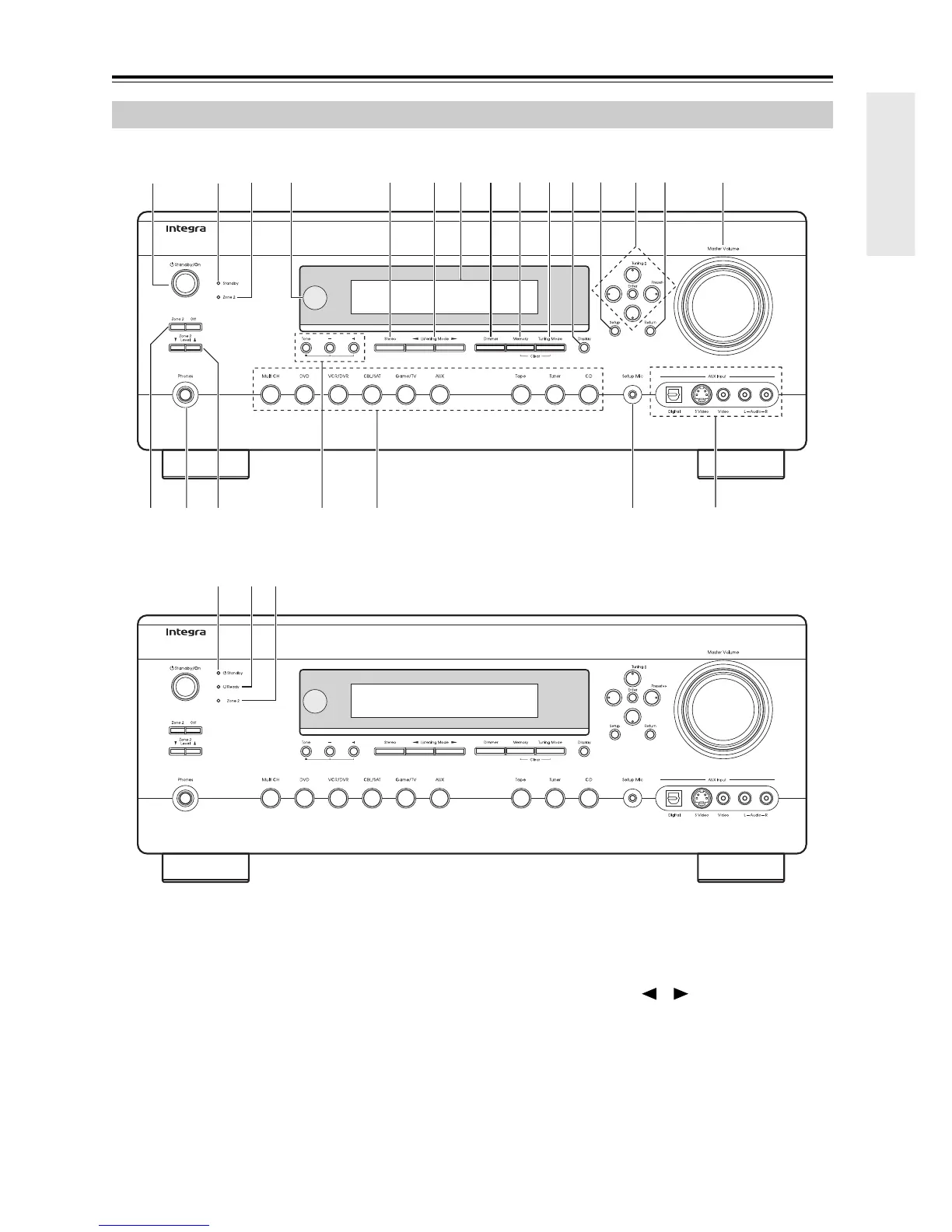

North American model
Australian model
The page numbers in parentheses show where you can find the main explanation for each item.
Standby/On button (40)
This button is used to set the AV receiver to Standby
or On.
Standby indicator (40)
This indicator lights up when the AV receiver is in
Standby mode, and it flashes while a signal is being
received from the remote controller.
Zone 2 indicator (86)
This indicator lights up when Zone 2 is selected.
Remote control sensor (12)
This sensor receives control signals from the remote
controller.
Stereo button (59)
This button is used to select the Stereo listening
mode.
Listening Mode [ ] [ ] buttons (59)
These buttons are used to select the listening modes.
Display
See “Display” on page 9.
Dimmer button (56)
Dimmer is used to adjust the display brightness.
Memory button (58)
This button is used when storing or deleting radio
presets.
