Positioning speakers
Speaker placement plays an important role in the reproduction of
Surround sound. The placement of the speakers varies depending
on the size of the room and the wall coverings used in the room.
The illustration shows an example of a layout for standard speaker
placement. Refer to this example when you position the speakers in
order to experience the best of Surround sound.

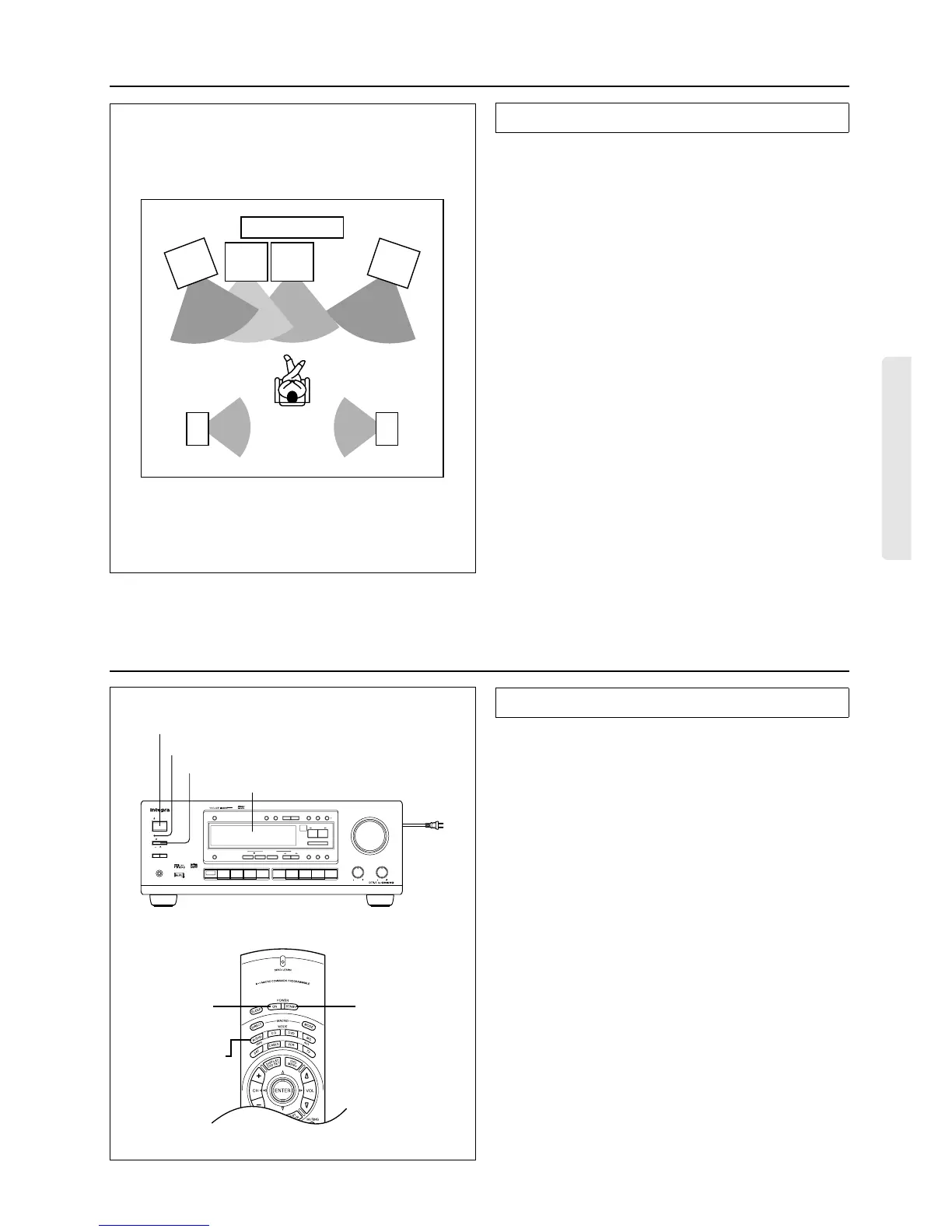

Standard speaker placement
For ideal Surround effects, all speakers should be installed. If a
center speaker or subwoofer is not connected, the sound from the
unused channel is properly distributed to the connected speakers in
order to produce the best Surround sound possible.
Front: The left, right, and center speakers should face the seated
listener and be placed at ear level. The center speaker produces a
richer sound image by enhancing the perception of the sound’s
source and movement.
Surround: Place the left and right Surround speakers 1 meter
(3 feet) above the listener’s ear level and facing toward the sides of
the room, making sure that the listener is within the speakers’ dis-
persion angle. These speakers produce the feel of a moving sound
while creating the sensation of being in the middle of the action.
Subwoofer: Install a subwoofer with a built-in power amplifier for
powerful bass sounds. The placement of the subwoofer does not
affect the final quality of the sound image too much, so you can
install it with the room layout in mind.
Refer to the speaker’s instruction manual for more details.
Positioning speakers
TV or Screen
Center
speaker
Surround
speaker
Right
Surround
speaker
Left
Listener
Sub-
woofer
speaker
Front
speaker
Left
Front
speaker
Right
Connecting the power
• Before you plug in the receiver, confirm that all connections
have been made properly.
• Turning on this receiver’s power may cause a momentary power
surge, which might interfere with other electrical equipment,
such as computers. If this happens, use a wall outlet on a differ-
ent circuit.
1. Plug the power cord into an AC wall outlet.
2. Press the POWER switch to set the receiver to Standby
mode.
The STANDBY indicator will light up.
3. Press the STANDBY/ON button to turn on the receiver. The
display will light up and the STANDBY indicator will be
turned off.
If you press the STANDBY/ON button, the receiver returns to
Standby mode.
Turning the power on from the remote controller:
1. Press the MODE AUDIO button.
2. Press the POWER ON button to turn on the power to the
DTR-5, or press the POWER STNBY button to set the
receiver in standby mode.
• You cannot use the remote controller if the POWER switch on
the receiver is set to OFF.
• Set the volume level to minimum before you turn off the power
to the receiver.
Connecting the power
OFF
ON
STANDBY
POWER
STANDBY/ON
BASS
TREBLE
PHONES
SPEAKERSAB
MASTER VOLUME
PRESET
/
MODE
ADJ
ENTER
/
SCAN
DOW
NUP
SP
/
SYS
SETUP
MODE
TUNING
UPDOWN
CH
LEVEL
MEMORY
FM
MUTE
/
MODE
LATE
NIGHT
/
FRONT
EFFECT
DISPLAY
STEREO
5
CH STEREO
DSP
LISTENING
MODE
LFE
LEVEL
CONTROL
/DTS
SURROUND
Re
-EQ
DIGITAL/
ANALOG
DIMMER
FM
AM PHONO C
D
TAPEDVD
MULTI
CH
INPUT
VIDEO 3
VIDEO 2
VIDEO 1
2. POWER switch
3. STANDBY/ON button
STANDBY indicator
Display
To wall
outlet
1.
2. POWER ON
button
1. MODE AUDIO
button
2. POWER STNBY
button
To Next Page
