7
GND
AM
FM
75
ANTENNA
C
D
PHONO
R
L
(
PLAY
)
(
REC
)
OUT
I
N
MONITOR
OUT
SUBWOOFER
PRE OUT
DVD
TAPE
VIDEO 1
VIDEO 2
VIDEO 3
I
N
I
N
I
N
OUT
I
N
R
L
V
R
L
V
REMOTE CONTROL
OPTICAL
COAXIAL 1
COAXIAL 2
SURROUND
CENTER
SPEAKER
SUB
WOOFER
MULT
I
CHANNEL I
NPUT
FRONT
CENTER
SURROUND
SPEAKERS
CAUTION: SPEAKER IMPEDANCE
6 OHMS MIN. PER EACH
SPEAKER TERMINAL
RATING:
AC120V 60Hz 3.9A
AV RECEIVER
MODEL NO.
DTR-5
MANUFACTURED IN MALA
YSIA
2-1, NISSHIN-CHO, NEYAGAWA-SHI,OSAKA,
JAPAN
R
L
R
L
R
R
L
L
R
L
R
L
R
L
R
L
DIGITAL INPUT
FRONT
SPEAKERS
A
FRONT
SPEAKERS
B
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR
AVIS
AC I
NLET
AC 120V 60Hz
SWITCHED
TOTAL 120W 1A MAX.
DVD Player
Monitor TV
Video Cassette Recorder
VIDEO IN
VDP Player
AUDIO IN
VIDEO IN
AUDIO OUT
AUDIO OUT
VIDEO OUT
VIDEO OUT
AUDIO OUTPUT
DIGITAL COAXIAL OUTPUT
VIDEO OUTPUT
DIGITAL OPTICAL OUTPUT
: signal flow
L (Left)
R (Right)
L
R
V (Video) V
Audio connection cable
Video connection cable

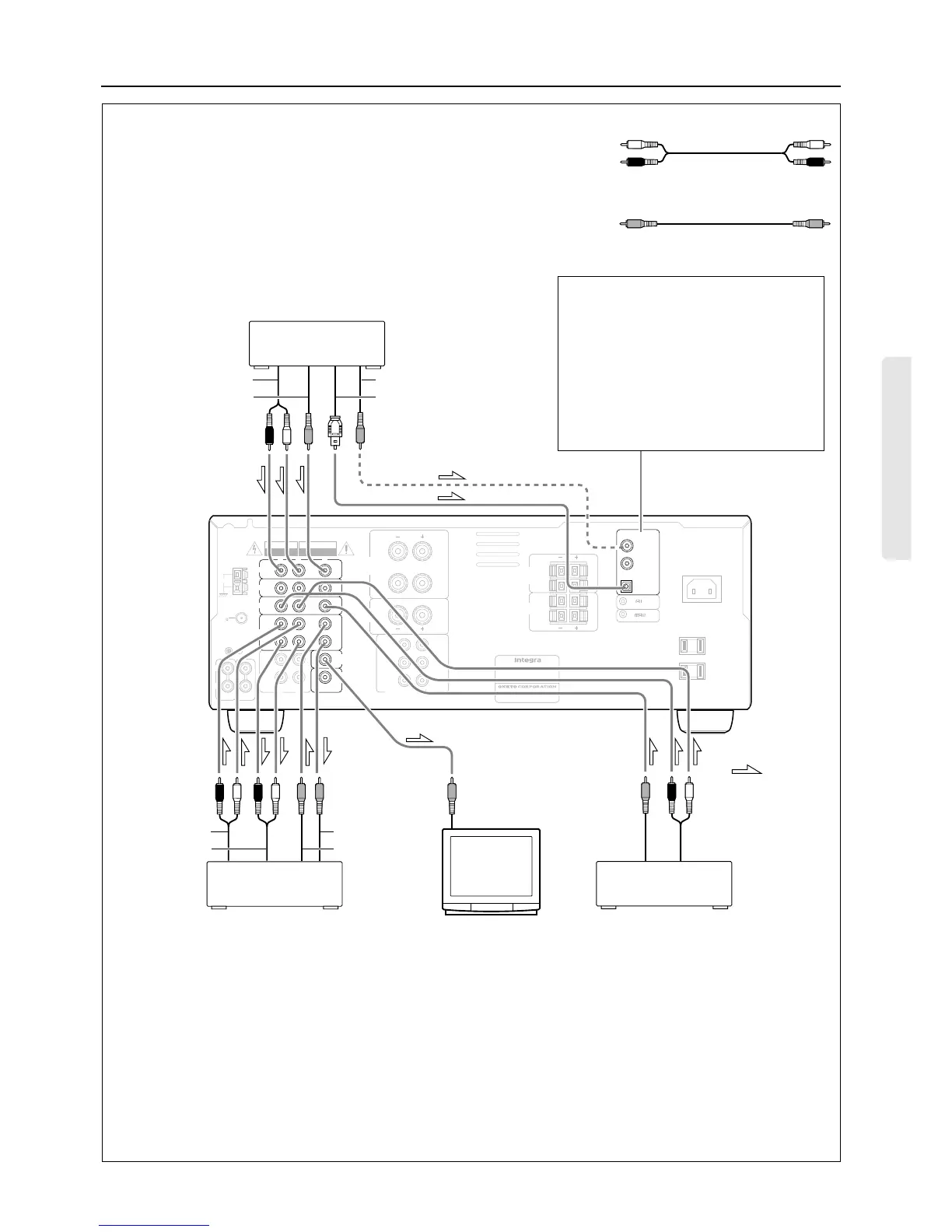

Video equipment connections
•
On each pair of input jacks, a red connector (marked R) corresponds to the right
channel, and a white connector (marked L) to the left channel.
• A yellow connector (marked V) is used for video connection.
• Please refer to the instruction manual of each component when making any con-
nections.
Notes:
• When using a playback-only VCR, connect it to VIDEO 2 or VIDEO 3. If you connect it to VIDEO 1, you need to make only the out-
put connections.
• This receiver can be used with only a monitor TV equipped with a video input jack.
• Interference may be caused between the TV and this receiver. If this interference occurs, place the receiver and the TV as far apart
as possible. We do not recommend the use of a common TV/FM antenna (see antenna section).
• A DVD or other component equipped with a digital output can be connected to this receiver. The digital connection must be used in
conjunction with an analog connection, because if the analog cable is disconnected, the audio output from TAPE OUT (REC) and
VIDEO 1 OUT will not work.
• Remove the protective cap attached to the DIGITAL INPUT (OPTICAL) jack before making the connection. When this jack is not
used, replace the protective cap.
Digital audio connections
This receiver has a powerful digital signal
processor for use with DVD players, DAT
decks, and CD players. The digital inputs,
COAXIAL 1, 2 and OPTICAL can be
assigned to individual input selector buttons,
so when an input selector button is pressed, the
assigned digital input is used instead of the
corresponding analog input. (See page 18.)
To Next Page
