Index parts and facilities

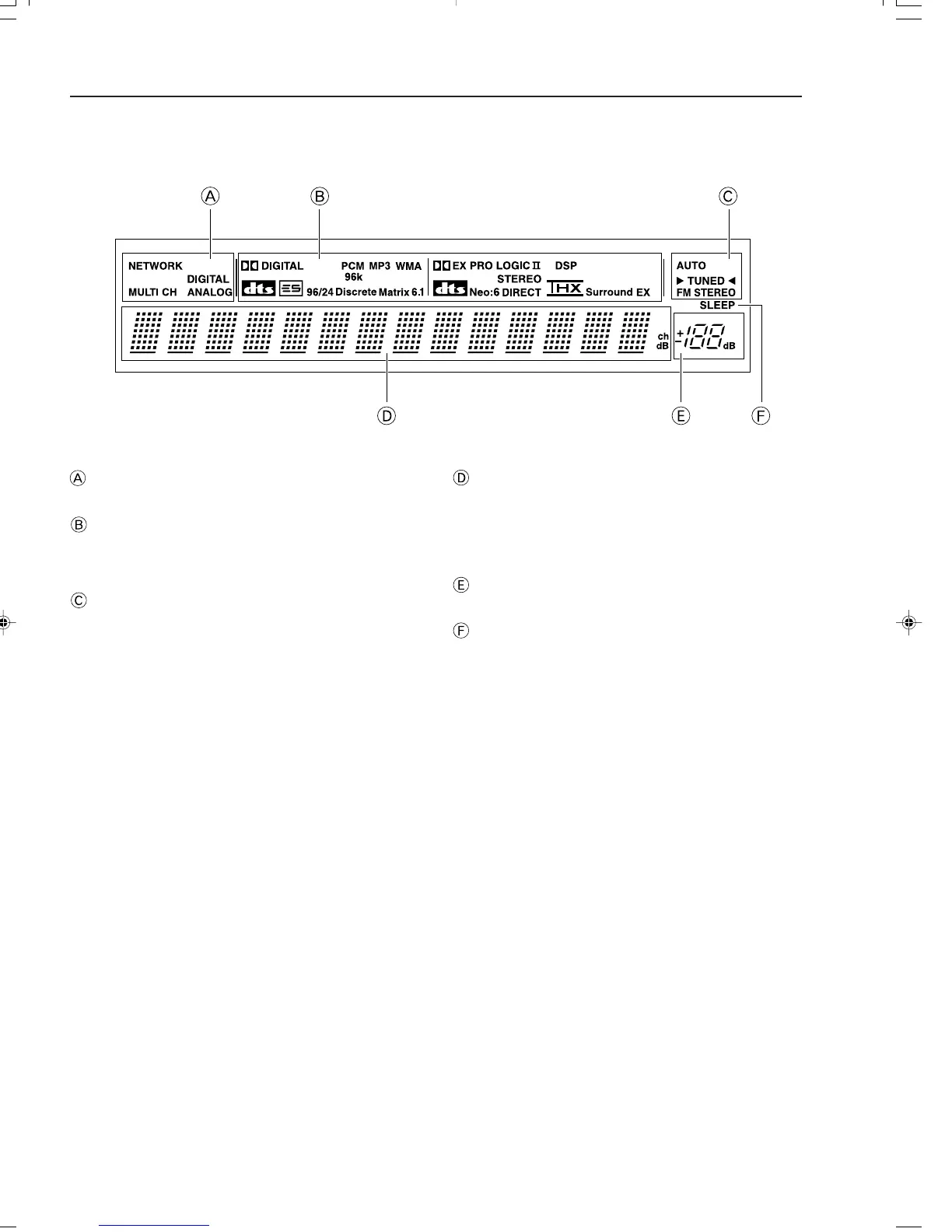

Front panel display
Input signal path indicators
Shows from which terminal the input signal is coming.
Listening mode or digital input format indicators
One of these indicators lights to show the format of the current input
source. In addition, one of the listening mode indicators lights to
indicate the current listening mode.
Tuning indicators
TUNED indicator
Lights when a radio station is received.
AUTO indicator
Lights when receiving FM broadcasts in the stereo mode. Turns
off when placed into the monaural mode.
FM STEREO indicator
Lights when an FM broadcast station is received in stereo.
Multi function display
During normal operation, shows the current input source. When the
FM or AM input is selected, shows the frequency and preset number.
When the Display button is pressed, shows the listening mode and
input source format. However, does not show the source format
when the FM or AM source is selected.
Volume display
Shows the volume level.
SLEEP indicator
Lights when the sleep timer is turned on.
