Intel NUC Board D54250WYB and Intel NUC Board D34010WYB
Technical Product Specification
26
1.7 Real-Time Clock Subsystem
A coin-cell battery (CR2032) powers the real-time clock and CMOS memory. When the
computer is not plugged into a wall socket, the battery has an estimated life of three
years. When the computer is plugged in, the standby current from the power supply
extends the life of the battery. The clock is accurate to ± 13 minutes/year at 25 ºC
with 3.3 VSB applied via the power supply 5 V STBY rail.
NOTE
If the battery and AC power fail, date and time values will be reset and the user will be
notified during the POST.
When the voltage drops below a certain level, the BIOS Setup program settings stored
in CMOS RAM (for example, the date and time) might not be accurate. Replace the
battery with an equivalent one. Figure 1 on page 13 shows the location of the battery.
1.8 Audio Subsystem
The audio subsystem supports the following features:
• Analog line-out/Analog Headphone/Analog Microphone (front panel jack)
• DMIC interface (custom solutions header), with support for mono and stereo digital
microphones
• Support for 44.1 kHz/48 kHz/96 kHz/192 kHz sample rates on all analog outputs
• Support for 44.1 kHz/48 kHz/96 kHz sample rates on all analog inputs
• Front Panel Audio Jack Support (see Figure 5 for 3.5 mm audio jack pin out):
Speakers only
Headphones only
Microphone only
Combo Headphone/Microphone

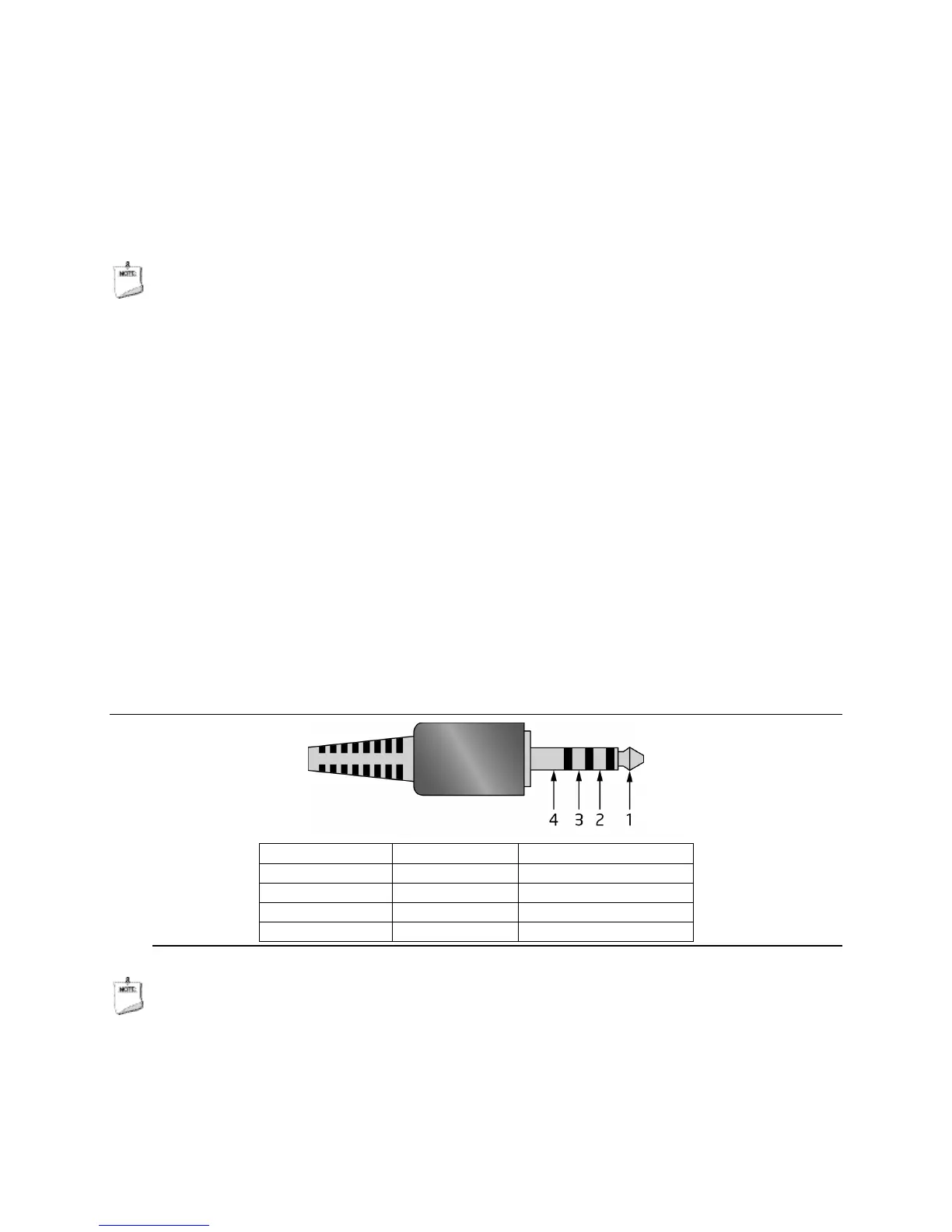

Figure 5. 4-Pin 3.5 mm (1/8 inch) Audio Jack Pin Out
NOTE
The analog circuit of the front panel audio connector is designed to power headphones
or amplified speakers only. Poor audio quality occurs if passive (nonamplified) speakers
are connected to this output.
