1.9.3 RJ-45 LAN Connector with Integrated LEDs
Two LEDs are built into the RJ-45 LAN connector (shown in Figure 5).
Item Description
A Link LED (Green)
B Data Rate LED (Green/Yellow)

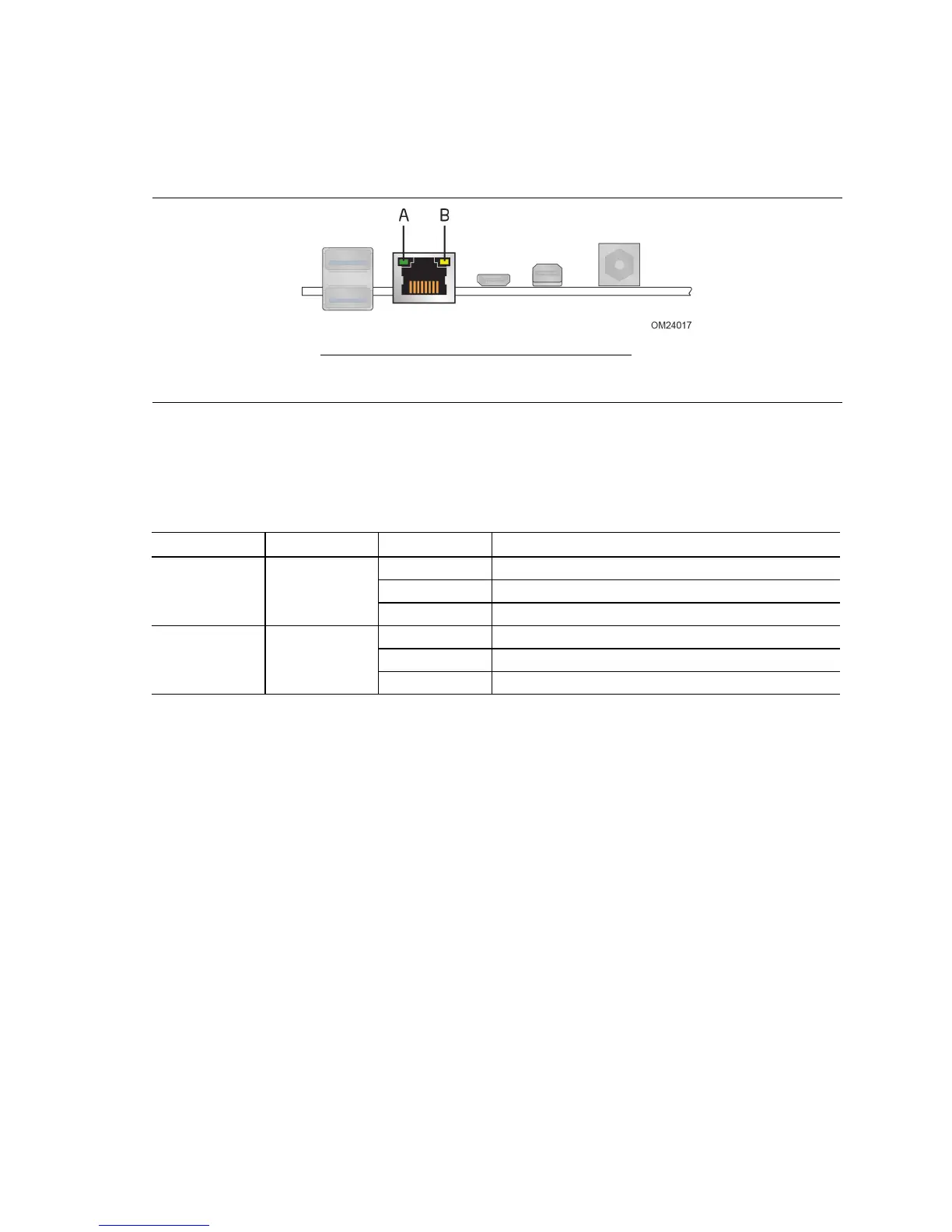

Figure 6. LAN Connector LED Locations
Table 8 describes the LED states when the board is powered up and the LAN
subsystem is operating.
Table 8. LAN Connector LED States
LED LED Color LED State Condition
Link Green
Off LAN link is not established.
On LAN link is established.
Blinking LAN activity is occurring.
Data Rate Green/Yellow
Off 10 Mb/s data rate is selected.
Green 100 Mb/s data rate is selected.
Yellow 1000 Mb/s data rate is selected.

Intel D34010WYK Specifications

General

Maximum Memory	16 GB
Graphics	Intel® HD Graphics 4400
Number of Memory Channels	2
Max Memory Bandwidth	25.6 GB/s
Number of DIMMs	2
Serial Port via Header	Yes
Intel® Visual BIOS	Yes
Consumer Infrared Rx Sensor	Yes
Form Factor	UCFF
Processor Support	4th Generation Intel Core i3/i5 Processors
Memory Type	DDR3L 1333/1600 1.35V SO-DIMM
Storage Interface	SATA
Networking	Gigabit Ethernet
Audio	Intel® HD Audio
Product Collection	Intel NUC Kit
Supported Processor	Intel® Core™ i3-4010U Processor (3M Cache, 1.70 GHz)
Graphics Output	HDMI, Mini DisplayPort
Audio Output	HDMI
Expansion Slots	1 x Half-length mini PCIe
USB Revision	USB 3.0
USB Ports	4x USB 3.0
