This section describes the board’s connectors and headers. The connectors and
headers can be divided into these groups:
• Front panel I/O connectors
• Back panel I/O connectors
• On-board I/O connectors and headers (see pages 39 and 40)
2.2.1 Front Panel Connectors

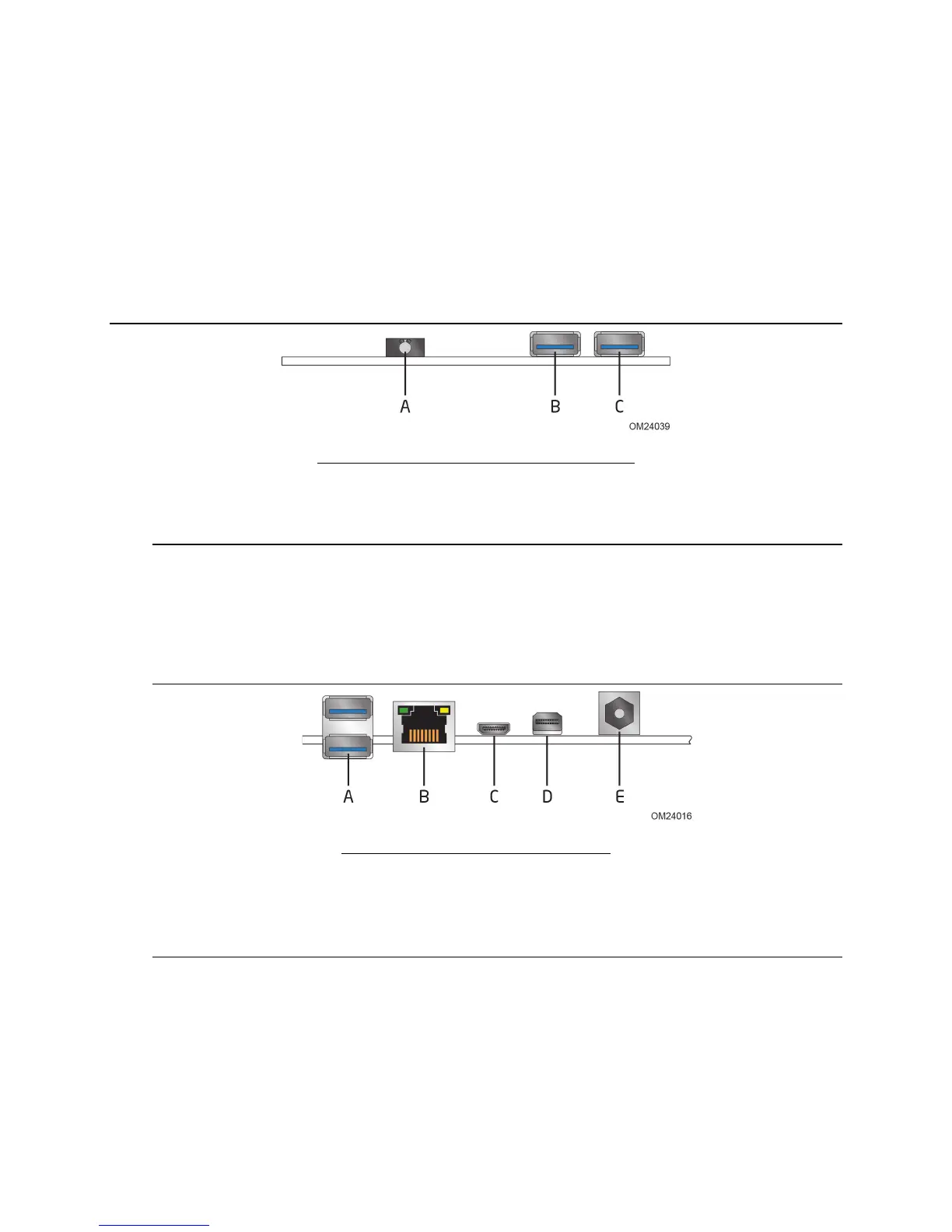

Figure 8 shows the location of the front panel connectors for the board.
Item Description
A
Front panel stereo microphone/
headphone jack
B
USB 3.0 port
C
USB 3.0 port
Figure 9. Front Panel Connectors
2.2.2 Back Panel Connectors
Figure 9 shows the location of the back panel connectors for the board.
Item
Description
A
USB 3.0 ports
B
LAN
C
Mini HDMI connector
D
Mini DisplayPort connector
E
12-19 V DC input jack
Figure 10. Back Panel Connectors

Intel D34010WYK Specifications

General

Maximum Memory	16 GB
Graphics	Intel® HD Graphics 4400
Number of Memory Channels	2
Max Memory Bandwidth	25.6 GB/s
Number of DIMMs	2
Serial Port via Header	Yes
Intel® Visual BIOS	Yes
Consumer Infrared Rx Sensor	Yes
Form Factor	UCFF
Processor Support	4th Generation Intel Core i3/i5 Processors
Memory Type	DDR3L 1333/1600 1.35V SO-DIMM
Storage Interface	SATA
Networking	Gigabit Ethernet
Audio	Intel® HD Audio
Product Collection	Intel NUC Kit
Supported Processor	Intel® Core™ i3-4010U Processor (3M Cache, 1.70 GHz)
Graphics Output	HDMI, Mini DisplayPort
Audio Output	HDMI
Expansion Slots	1 x Half-length mini PCIe
USB Revision	USB 3.0
USB Ports	4x USB 3.0
