2.2.4.6 Internal USB 2.0 Dual-Port Header (2.0 mm Pitch)
Figure 13 is a connection diagram for the internal USB header.
NOTE
• The +5 V DC power on the USB header is fused.
• Use only an internal USB connector that conforms to the USB 2.0 specification for
high-speed USB devices.

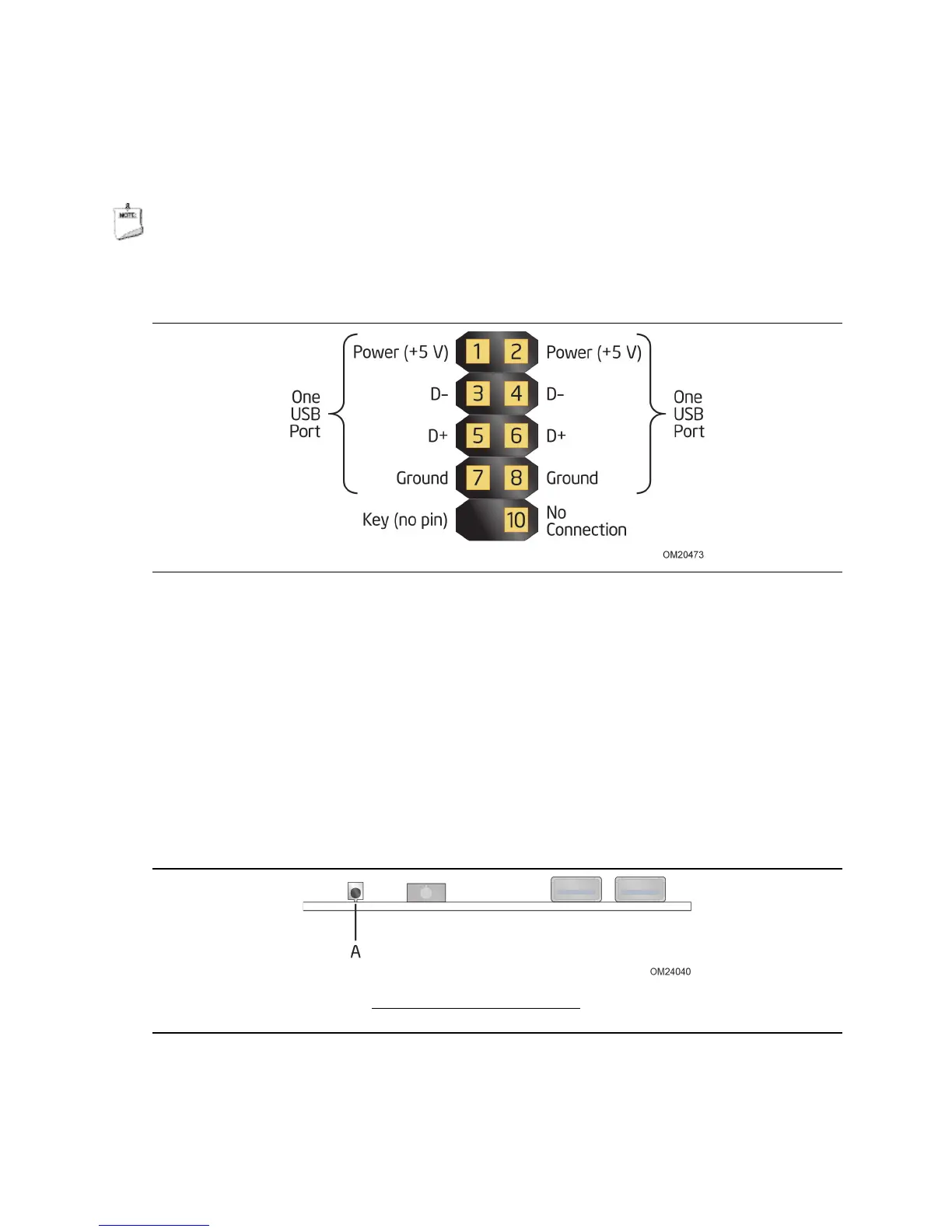

Figure 14. Connection Diagram for Internal
USB 2.0 Dual-Port Header (2.0 mm Pitch)
2.2.4.7 Consumer Infrared (CIR) Sensor
The Consumer Infrared (CIR) sensor on the front panel provides features that are
designed to comply with Microsoft Consumer Infrared usage models.
The CIR feature is made up of the receiving sensor. The receiving sensor consists of a
filtered translated infrared input compliant with Microsoft CIR specifications.
Customers are required to provide their own media center compatible remote or smart
phone application for use with the Intel NUC. Figure 14 shows the location of the CIR
sensor.
Item
Description
A
CIR Sensor
Figure 15. Location of the CIR Sensor

Intel D34010WYK Specifications

General

Maximum Memory	16 GB
Graphics	Intel® HD Graphics 4400
Number of Memory Channels	2
Max Memory Bandwidth	25.6 GB/s
Number of DIMMs	2
Serial Port via Header	Yes
Intel® Visual BIOS	Yes
Consumer Infrared Rx Sensor	Yes
Form Factor	UCFF
Processor Support	4th Generation Intel Core i3/i5 Processors
Memory Type	DDR3L 1333/1600 1.35V SO-DIMM
Storage Interface	SATA
Networking	Gigabit Ethernet
Audio	Intel® HD Audio
Product Collection	Intel NUC Kit
Supported Processor	Intel® Core™ i3-4010U Processor (3M Cache, 1.70 GHz)
Graphics Output	HDMI, Mini DisplayPort
Audio Output	HDMI
Expansion Slots	1 x Half-length mini PCIe
USB Revision	USB 3.0
USB Ports	4x USB 3.0
