Intel D34010WYK User Manual

Intel NUC Board D54250WYB and Intel NUC Board D34010WYB
Technical Product Specification
46

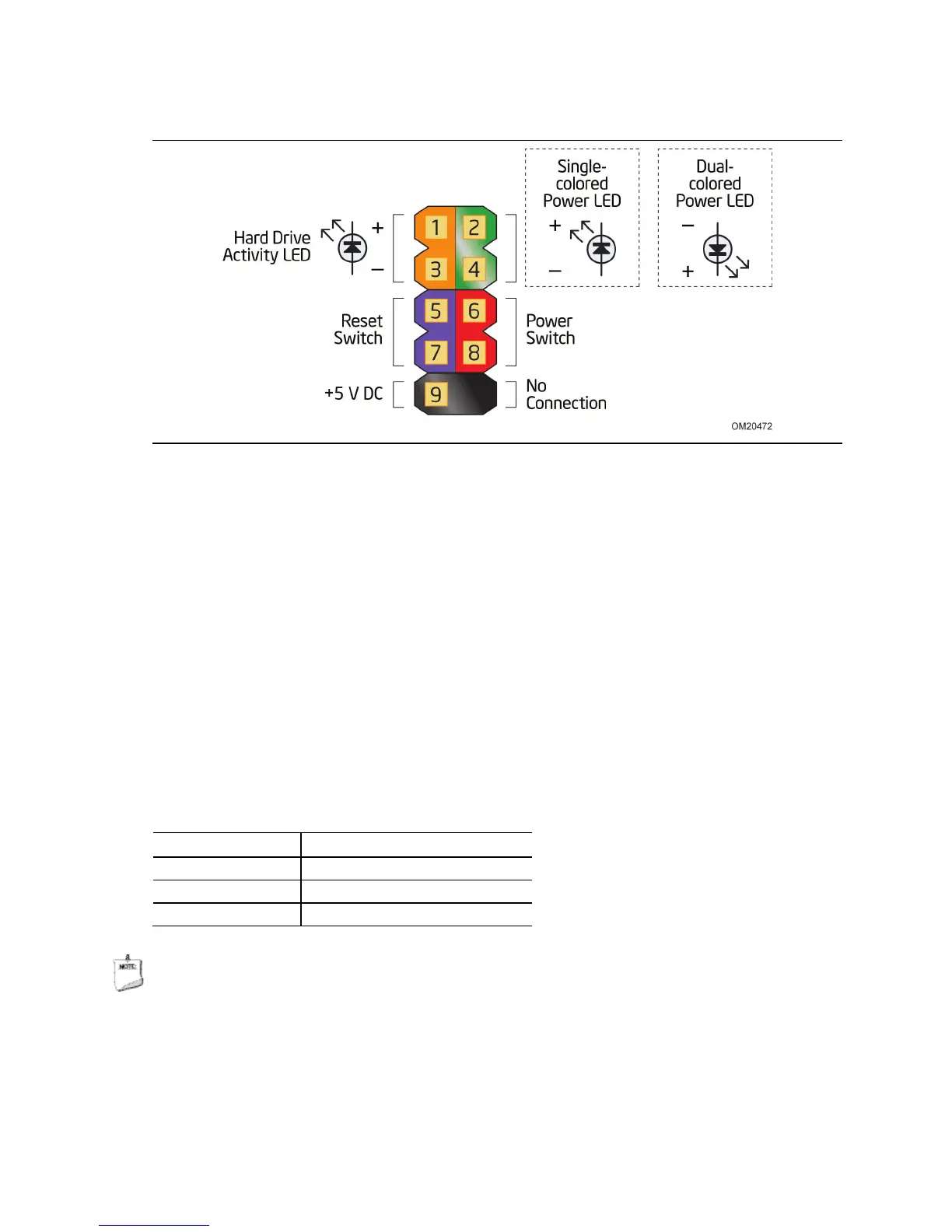

Figure 13. Connection Diagram for Front Panel Header (2.0 mm Pitch)
2.2.4.4.1 Hard Drive Activity LED Header
Pins 1 and 3 can be connected to an LED to provide a visual indicator that data is
being read from or written to a hard drive. Proper LED function requires a SATA hard
drive or optical drive connected to an onboard SATA connector.
2.2.4.4.2 Reset Switch Header
Pins 5 and 7 can be connected to a momentary single pole, single throw (SPST) type
switch that is normally open. When the switch is closed, the board resets and runs the
POST.
2.2.4.4.3 Power/Sleep LED Header
Pins 2 and 4 can be connected to a one- or two-color LED. Table 21 shows the
possible LED states.
Table 21. States for a One-Color Power LED
LED State Description
Off Power off
Blinking Standby
Steady Normal operation
NOTE
The LED behavior shown in Table 21 is default – other patterns may be set via BIOS
setup.

Intel D34010WYK Specifications

General

Maximum Memory	16 GB
Graphics	Intel® HD Graphics 4400
Number of Memory Channels	2
Max Memory Bandwidth	25.6 GB/s
Number of DIMMs	2
Serial Port via Header	Yes
Intel® Visual BIOS	Yes
Consumer Infrared Rx Sensor	Yes
Form Factor	UCFF
Processor Support	4th Generation Intel Core i3/i5 Processors
Memory Type	DDR3L 1333/1600 1.35V SO-DIMM
Storage Interface	SATA
Networking	Gigabit Ethernet
Audio	Intel® HD Audio
Product Collection	Intel NUC Kit
Supported Processor	Intel® Core™ i3-4010U Processor (3M Cache, 1.70 GHz)
Graphics Output	HDMI, Mini DisplayPort
Audio Output	HDMI
Expansion Slots	1 x Half-length mini PCIe
USB Revision	USB 3.0
USB Ports	4x USB 3.0
