Intel D34010WYK User Manual

Technical Reference
51
2.4 Mechanical Considerations
2.4.1 Form Factor
The board is designed to fit into a custom chassis. Figure 16 illustrates the mechanical
form factor for the board. Dimensions are given in inches [millimeters]. The outer
dimensions are 4.0 inches by 4.0 inches [101.60 millimeters by 101.60 millimeters].

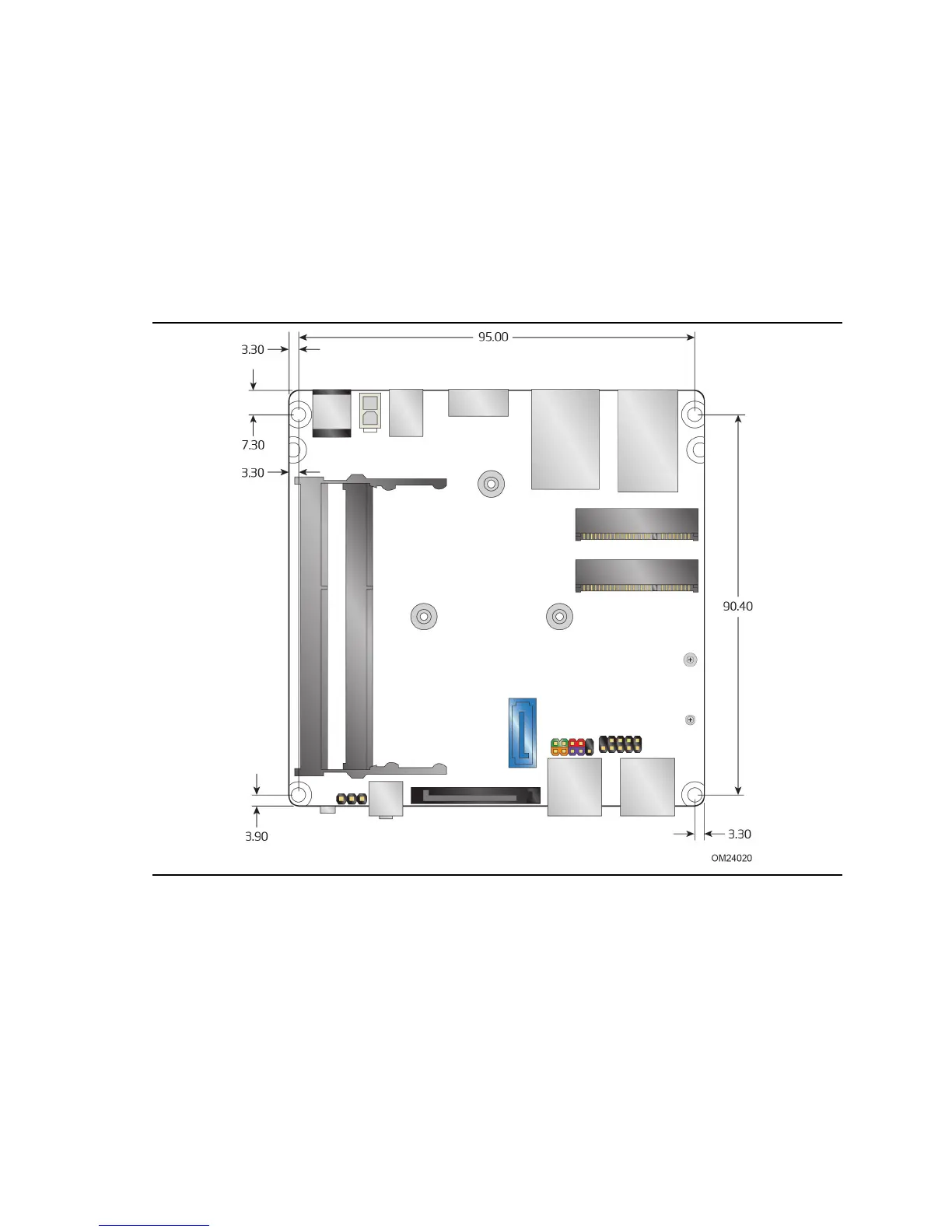

Figure 17. Board Dimensions

Intel D34010WYK Specifications

General

Maximum Memory	16 GB
Graphics	Intel® HD Graphics 4400
Number of Memory Channels	2
Max Memory Bandwidth	25.6 GB/s
Number of DIMMs	2
Serial Port via Header	Yes
Intel® Visual BIOS	Yes
Consumer Infrared Rx Sensor	Yes
Form Factor	UCFF
Processor Support	4th Generation Intel Core i3/i5 Processors
Memory Type	DDR3L 1333/1600 1.35V SO-DIMM
Storage Interface	SATA
Networking	Gigabit Ethernet
Audio	Intel® HD Audio
Product Collection	Intel NUC Kit
Supported Processor	Intel® Core™ i3-4010U Processor (3M Cache, 1.70 GHz)
Graphics Output	HDMI, Mini DisplayPort
Audio Output	HDMI
Expansion Slots	1 x Half-length mini PCIe
USB Revision	USB 3.0
USB Ports	4x USB 3.0
