Intel Ethernet X520 10GbE Dual Port KX4 Mezz User Manual

Connecting Network Cables
Connect the appropriate network cable, as described in the following sections.
Connect the UTP Network Cable

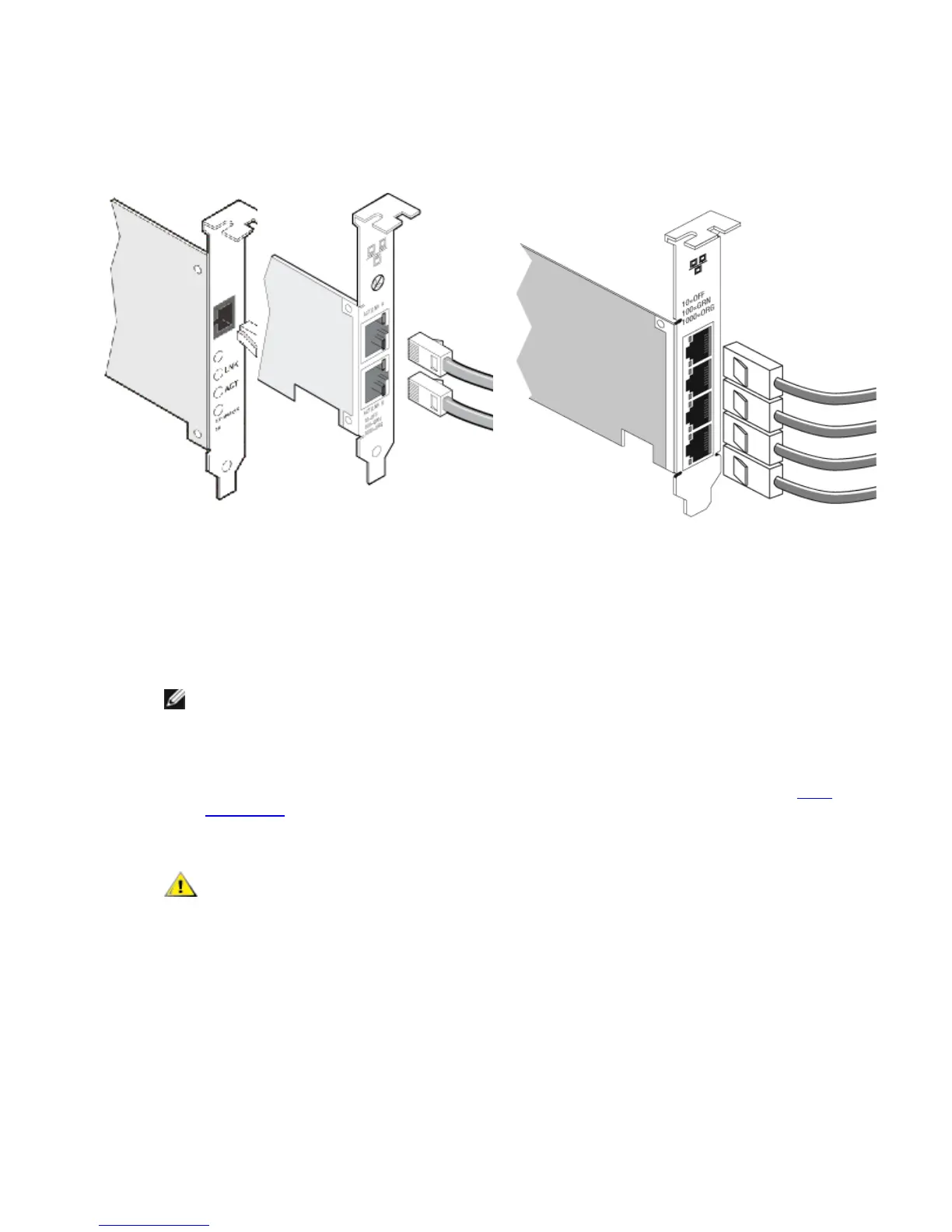

Insert the twisted pair, RJ-45 network cable as shown below.
Single-port Adapter Dual-port Adapter Quad-port Adapter
Type of cabling to use:
l
10GBASE-T on Category 6, Category 6a, or Category 7 wiring, twisted 4-pair copper:
l
Length is 55 meters max for Category 6.
l
Length is 100 meters max for Category 6a.
l
Length is 100 meters max for Category 7.
NOTE: For the Intel® 10 Gigabit AT Server Adapter, to ensure compliance with CISPR 24 and the EU’s
EN55024, this product should be used only with Category 6a shielded cables that are properly ter-
minated according to the recommendations in EN50174-2.
l
For 1000BASE-T or 100BASE-TX, use Category 5 or Category 5e wiring, twisted 4-pair copper:
l
Make sure you use Category 5 cabling that complies with the TIA-568 wiring specification. For more
information on this specification, see the Telecommunications Industry Association's web site: www.-
tiaonline.org.
l
Length is 100 meters max.
l
Category 3 wiring supports only 10 Mbps.
CAUTION: If using less than 4-pair cabling, you must manually configure the speed and duplex set-
ting of the adapter and the link partner. In addition, with 2- and 3-pair cabling the adapter can only
achieve speeds of up to 100Mbps.
l
For 100Base-TX, use Category 5 wiring.
l
For 10Base-T, use Category 3 or 5 wiring.
l
If you want to use this adapter in a residential environment (at any speed), use Category 5 wiring. If the cable
runs between rooms or through walls and/or ceilings, it should be plenum-rated for fire safety.
In all cases:
l
The adapter must be connected to a compatible link partner, preferably set to auto-negotiate speed and duplex
for Intel gigabit adapters.
l
Intel Gigabit and 10 Gigabit Server Adapters using copper connections automatically accommodate either MDI
or MDI-X connections. The auto-MDI-X feature of Intel gigabit copper adapters allows you to directly connect
two adapters without using a cross-over cable.

Intel Ethernet X520 10GbE Dual Port KX4 Mezz Specifications

General

Interface	KX4
Data Rate	10 Gbps
Form Factor	Mezzanine
Data Transfer Rate	10 Gbps
Product Type	Network Adapter
Controller	Intel 82599
PCIe Version	2.0
Virtualization	Yes
Operating Temperature	0°C to 55°C
Jumbo Frames	Supported
Ports	Dual Port
