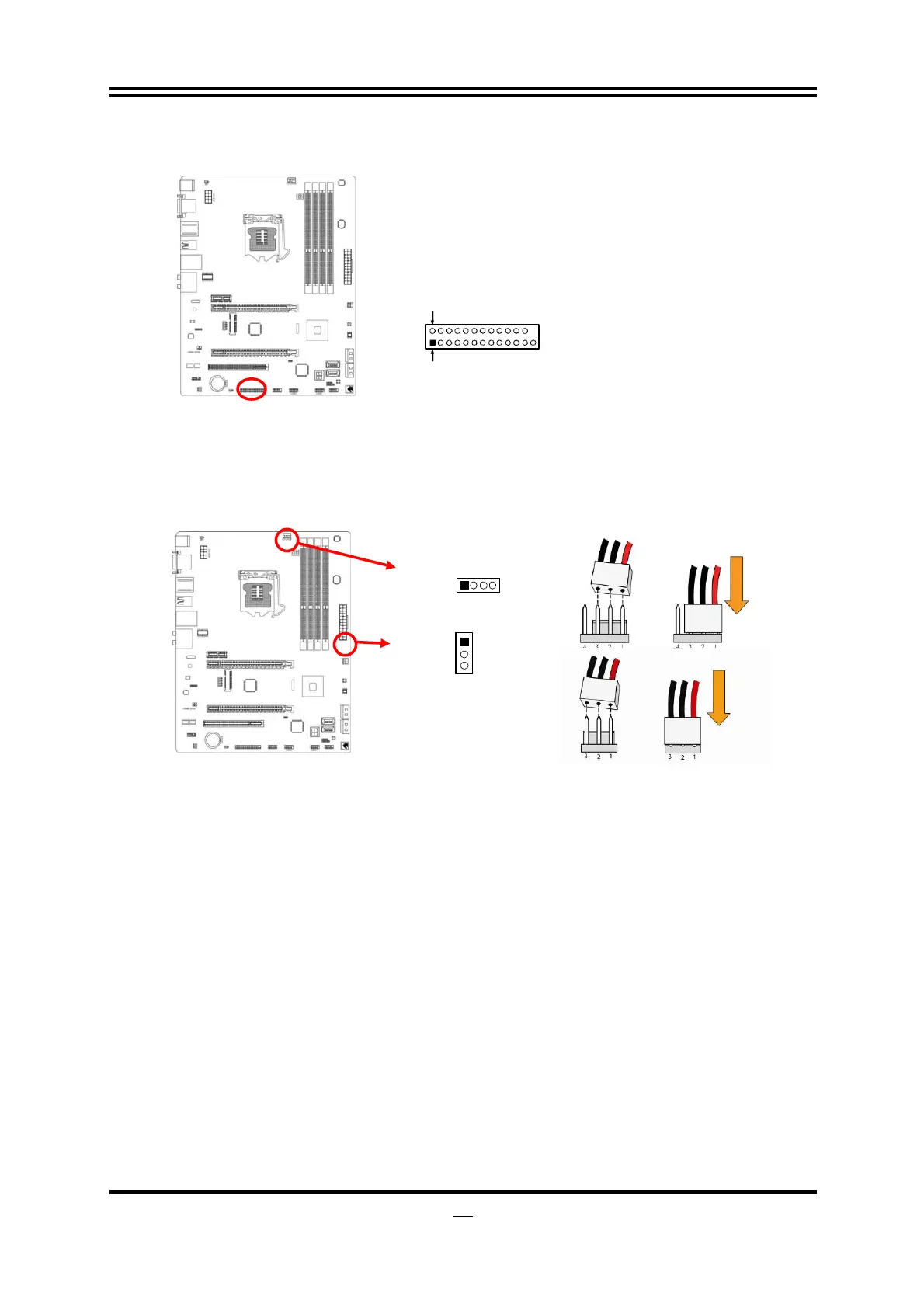

(11) Parallel COM Port header: PARALLEL
The board also provides a 25-pin parallel port header.
Pin 1
Parallel Header
Pin 2
(12) FAN Headers: SYSFAN1 (3-pin), CPUFAN (4-pin)
These connectors support cooling fans of 350mA (4.2 Watts) or less, depending
on the fan manufacturer, the wire and plug may be different. The red wire
should be positive, while the black should be ground. Please connect the fan’s
plug to the board taking into consideration the polarity of connector.
SYSFAN1
3
1
14
CPUFAN

Intel H67 Specifications

General

Socket Type	LGA 1155
Memory Type	DDR3
Max Memory Size	32 GB
SATA 6Gb/s	2
SATA 3Gb/s	4
USB 2.0 ports	14
PCIe 3.0 Support	No
Chipset	Intel H67
Integrated Graphics	Yes
