Mechanical Drawings
118 Thermal and Mechanical Design Guidelines

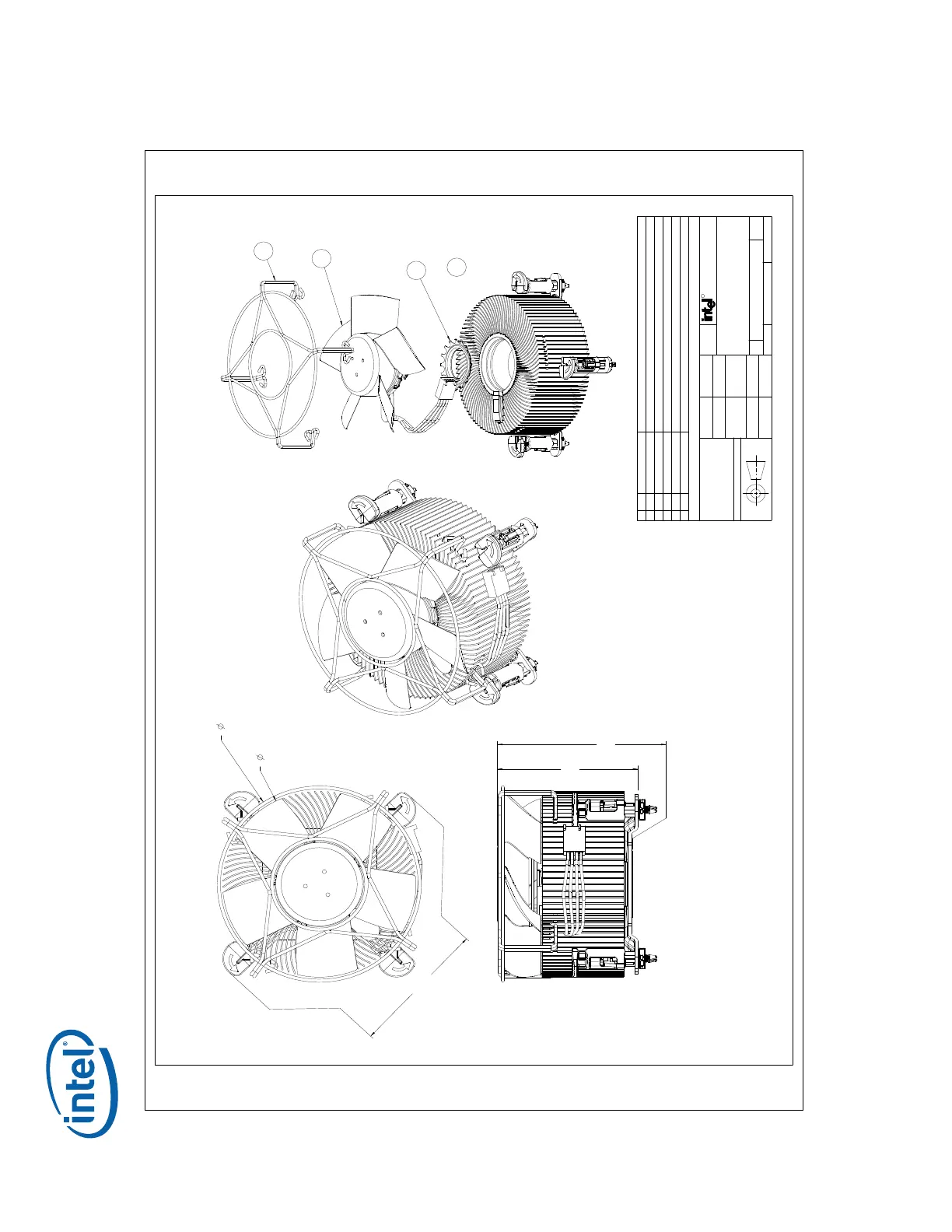

Figure 72. Intel
®
RCFH4 Reference Solution Assembly
()120
4.7[]
()95
3.740[]
()90
3.543[]
()65.42
2.576[]
()62.9
2.476[]
DEPARTMENT
R CORP.
2200 MISSION COLLEGE BLVD. P.O. BOX 58119 SANTA CLARA, CA 95052-8119
TMD
TITLE
RCFH4, MAIN ASSEMBLY
SIZE DRAWING NUMBER REV
A1 C88300 A
SCALE:
1
DO NOT SCAL E DRAWING
SHEET
1
OF
2
SEE NOTESSEE NOTES FINISHMATERIAL 09/23/ 04 DATEAPPROVED BY 09/23/ 04 09/23/ 04 DATECHECKED BY 09/21/ 04 DATEDRAWN BY 09/21/ 04 DATEDESIGNED BY
UNLESS OTHERWISE SPECIFIED
INTERPRET DIMENSIONS AND TOLERANCES
IN ACCORDANCE WITH ASME Y14.5M-1994
DIMENSIONS ARE IN MILLIMETERS
ALL UNTOLERANCED LINEAR
DIMENSIONS ± 0
ANGLES ± 0.5
THIRD ANGLE PROJECTION
PARTS LIST
DESCRIPTIONPART NUMBER
ITEM NO
QTY
RCFH4,MAIN ASSEMBLYC88300-001TOP PRESCOTT FMB2 FAN ATTACHC36448-00111 RCFH4,GUARD,WIREC87023-00121 RCH4,FAN ASSEMBLYC88297-00131 RCH4,HS,CLIP,CORE,FASTENERSC88298-00141
NOTES: 1. FOR DETAILED SPECIFICATIONS SEE COMPONENT DRAWINGS. 2. THERMAL INTERFACE MATERIAL: 0.2CC (0.4 GRAMS) SHIN-ETSU-MICRO-S1 G751 THERMAL GREASE. 3. SEE SHEET 2 FOR ASSEMBLY RECOMMENDATIONS. 4. US PATENTS PENDING.
1
2
3
4
