Intel® Thermal/Mechanical Reference Design Information
Thermal and Mechanical Design Guidelines 53
5.7 Reference Attach Mechanism
5.7.1 Structural Design Strategy
Structural design strategy for the reference design is to minimize upward board
deflection during shock to help protect the LGA775 socket.
The reference design uses a high clip stiffness that resists local board curvature under
the heatsink, and minimizes, in particular, upward board deflection (Figure 15). In
addi
tion, a moderate preload provides initial downward deflection.

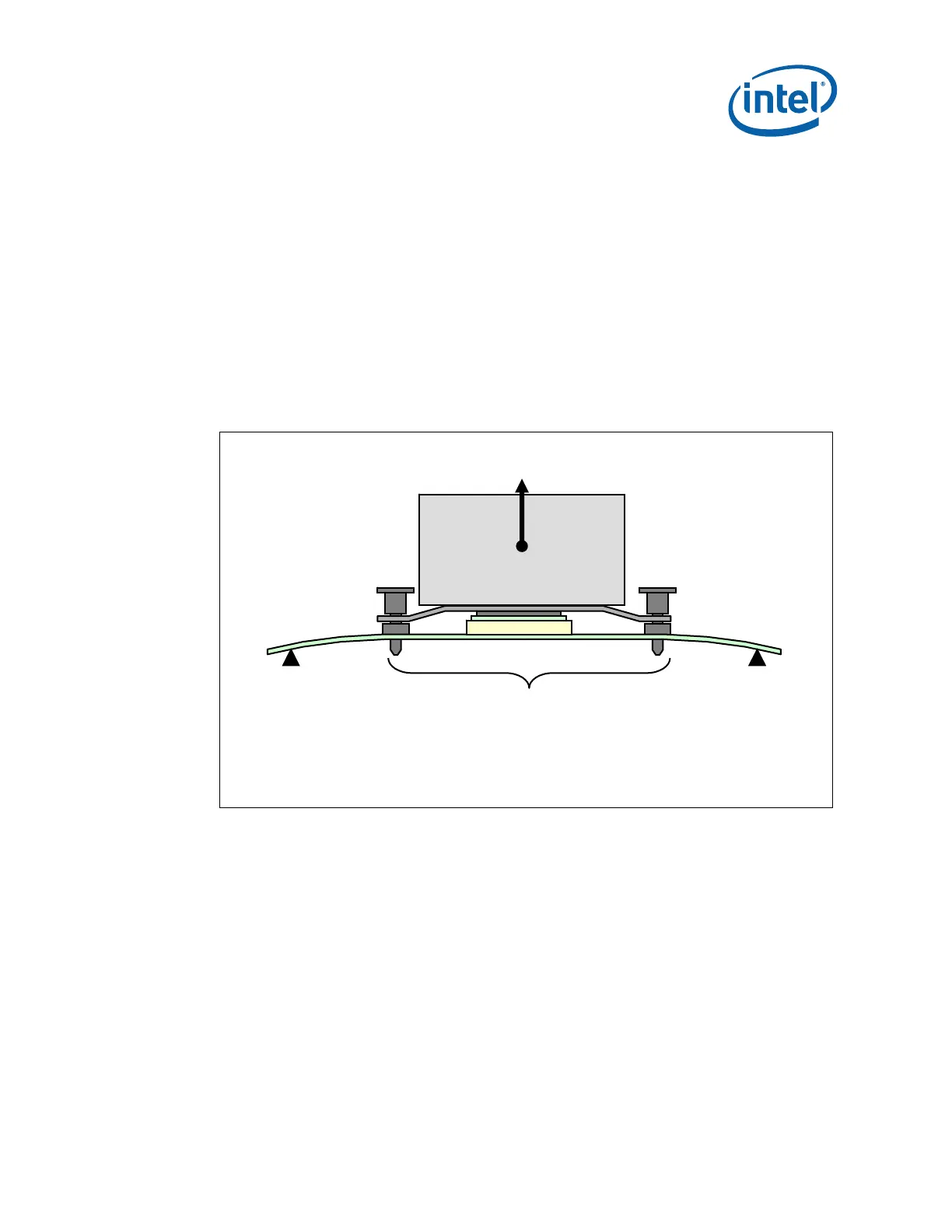

Figure 15. Upward Board Deflection During Shock
The target metal clip nominal stiffness is 540 N/mm [3100 lb/in]. The combined target
for reference clip and fasteners nominal stiffness is 380 N/mm [2180 lb/in]. The
nominal preload provided by the reference design is 191.3 N ± 44.5 N [43 lb ± 10 lb].
Note: Intel reserves the right to make changes and modifications to the design as necessary
to the reference design, in particular the clip and fastener.
Less curvature in
region under stiff clip
Shock Load
