Case Temperature Reference Metrology
92 Thermal and Mechanical Design Guidelines
24. You may need to move the solder back toward the groove as the IHS begins to
heat. Use a fine tip tweezers to push the solder into the end of the groove until a
solder ball is built up (see Figure 46 and Figure 47).

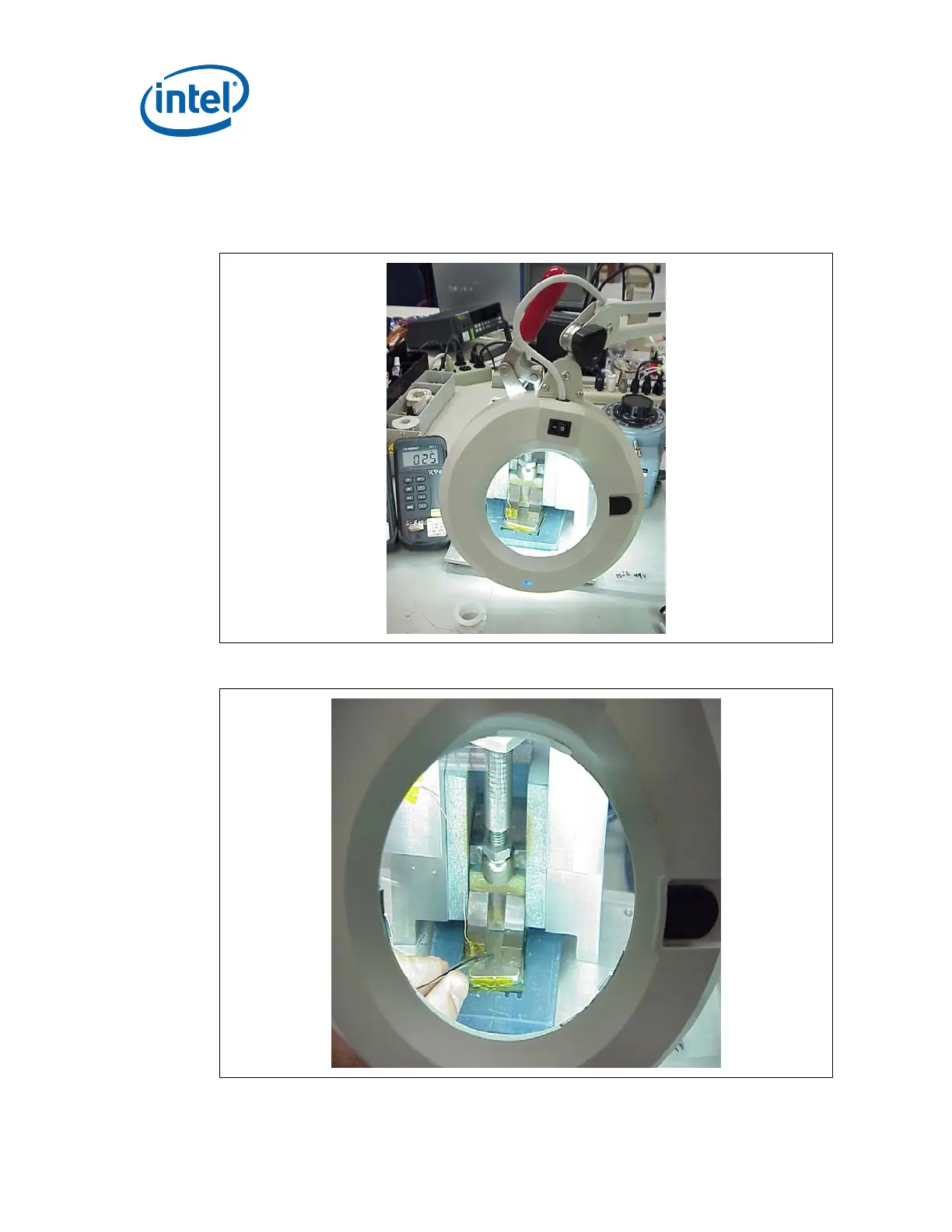

Figure 46. View Through Lens at
Solder Station
Figure 47. Moving Solder back onto Thermocouple Bead
