Intel® Server S2600WF Product Family Configuration Guide
107

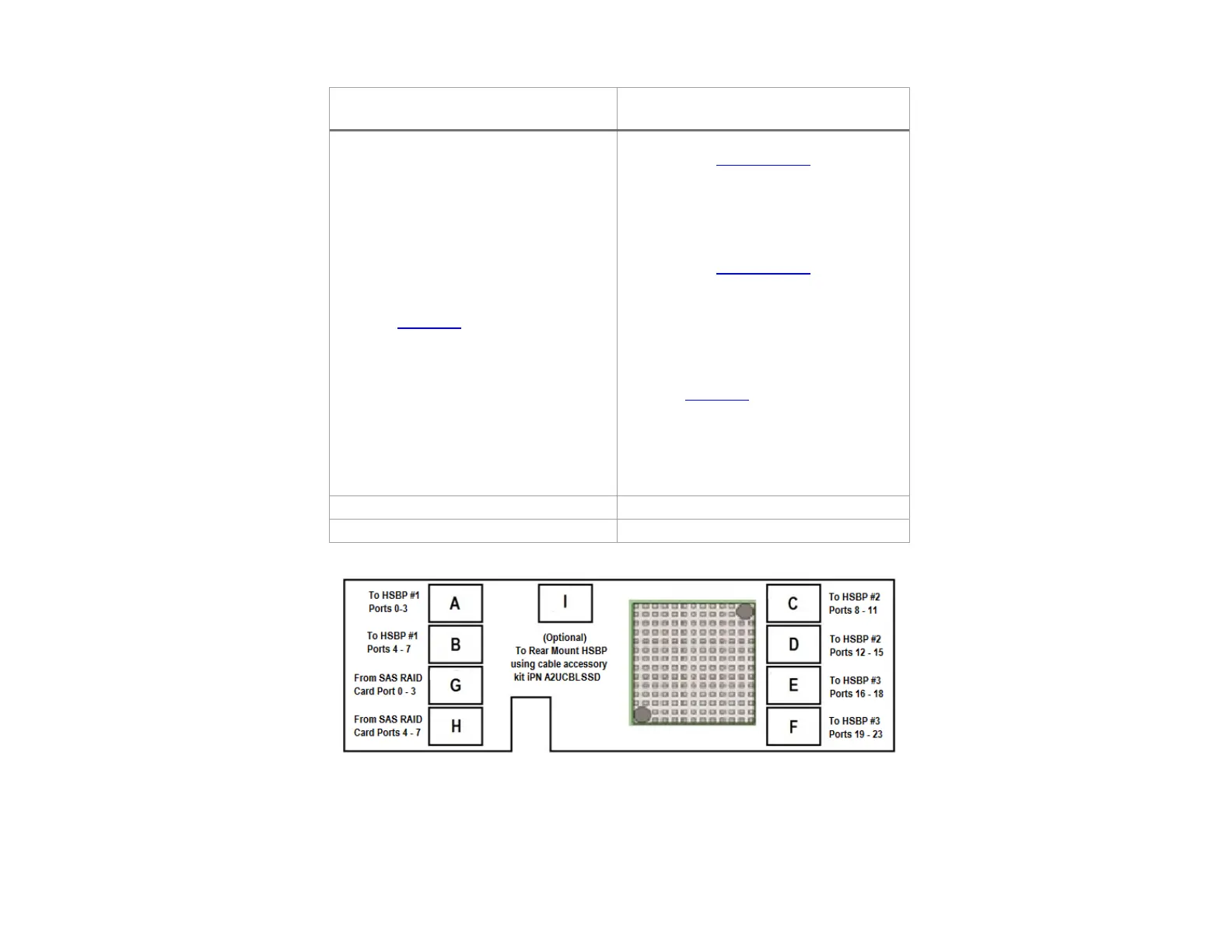

Table 66. Front mount drive cable guide
4 or 8-port Mezzanine 12Gb SAS ROC
Module to 12 Gb SAS Expander
4 or 8-port 12Gb SAS RAID PCIe* add-in
card to 12 Gb SAS Expander
12 Gb SAS Expander RES3TV360
installed:
SAS Mezz

Exp 0-3 (G)
730mm HD -- HD
SAS Mezz

Exp 4-7 (H)
730mm HD -- HD
From data above, select appropriate cable
kits from list below:
AXXCBL730HDHD
(2) 730mm cables Included in all 2.5” L6
systems
12 Gb SAS Expander RES3TV360 installed:
From Riser #1:
SAS PCIe

Exp 0-3 (G)
650mm HD -- HD
SAS PCIe

Exp 4-7 (H)
650mm HD -- HD
From Riser #2:
SAS PCIe

Exp 0-3 (G)
730mm HD -- HD
SAS PCIe

Exp 4-7 (H)
730mm HD -- HD
From data above, select appropriate cable
kits from list below:
AXXCBL650HDHD
AXXCBL730HDHD
(2) 730mm cables Included in all 2.5” L6
systems
12 Gb SAS Expander to drive bays
12 Gb SAS Expander to drive bays
Use cables included in SAS Expander Kit
Use cables included in SAS Expander Kit
Figure 30. SAS expander port mapping
