Intel® Server S2600WF Product Family Configuration Guide
70

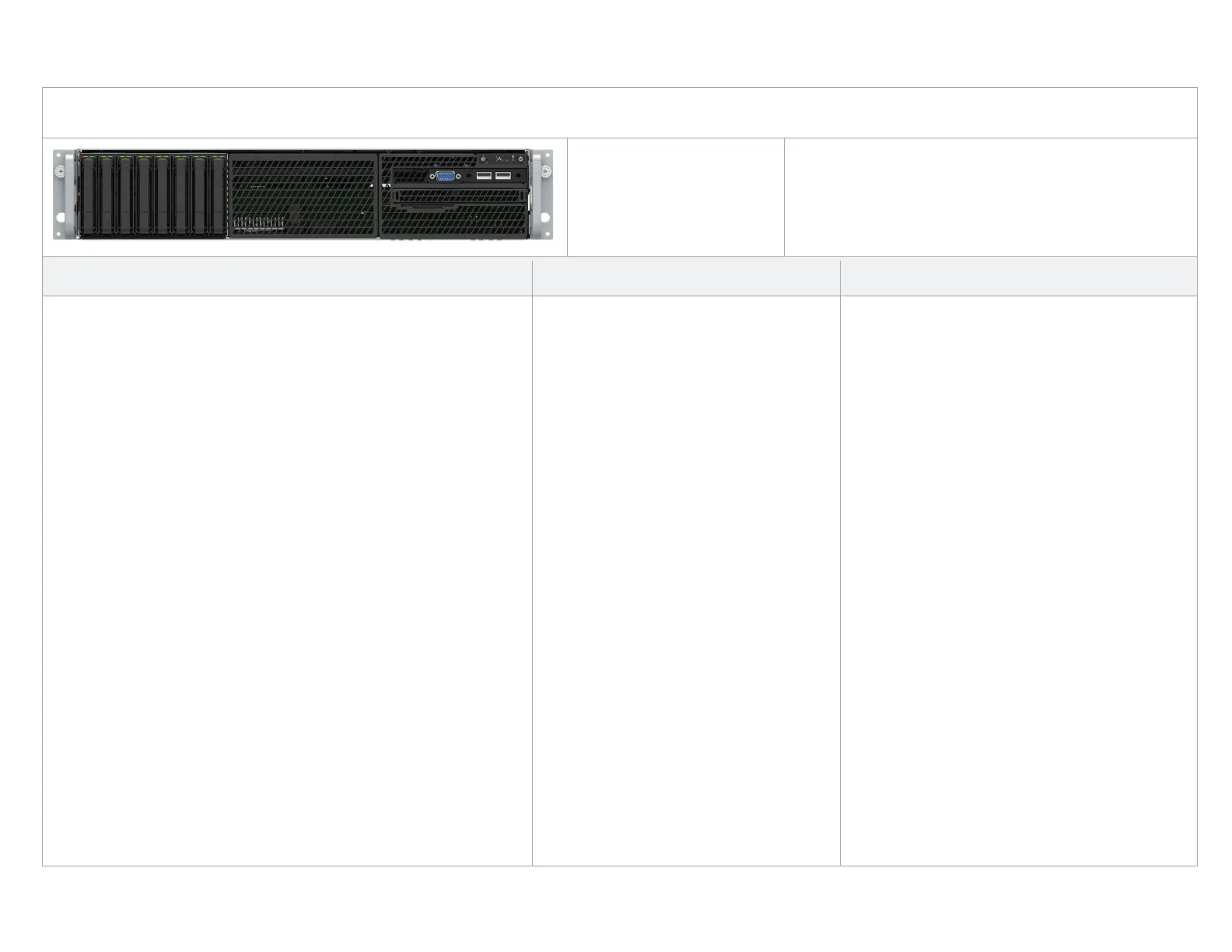

Table 35. Intel® Server System LFRB2208WFTF401 product specifications and configuration requirements
Intel® Server System LFRB2208WFTF401
2U, Intel® Server Board S2600WFTF, 8 x 2.5” SATA/SAS/NVMe* front mount drives, Intel® Xeon® Silver 4106H processor
iPC
LFRB2208WFTF401
MM#
974993
UPC
00735858388764
EAN
5032037137317
MOQ
1
Product type
L9 integrated system
Chassis form factor
2U rack mount
Packaged gross wt.
22.8 kg (50.2 lb)
Un-packaged net wt.
16.7 kg (36.2 lb)
Chassis dimensions
712 x 439 x 89 mm (L x W x H)
Package dimensions
983 x 577 x 260 mm (L x W x H)
Included
Required Items (sold separately)
Optional Accessories (sold separately)
(1) – 2U Chassis with Quick Reference Label affixed to top cover
(1) – Intel® Server Board S2600WFTF (dual 10GbE LAN) – iPC S2600WFTF
(2) – Intel® Xeon® Silver 4106H processor
(2) – 16 GB, RDIMM, DDR4, 2666 memory module – iPN J26609-002
(1) – Intel® Remote Management Module 4 Lite 2 – iPC AXXRMM4LITE2
(2) – PCIe* riser card brackets. Includes:
o (2) 3-slot PCIe* riser cards – iPC A2UL8RISER2
o (1) 2-slot low profile PCIe* riser card – iPC A2UX8X4RISER
(8) – 2.5” hot-swap drive bays with drive carriers and blanks. Includes:
o (1) SAS/NVMe combo backplane – iPC F2U8X25S3PHS
o (8) 2.5” hot-swap drive tool less carriers – iPC FXX25HSCAR3
(1) – Standard control panel assembly (board only – iPC FXXFPANEL2)
o 300 mm front panel cable – iPN H34381-xxx
(1) – Front I/O panel assembly (1 x VGA and 2 x USB)
o 620 mm USB 3.0 cable – iPN H76899-xxx
o 400 mm video cable – iPN H62114-xxx
(1) – RFID antenna – iPN H69566-xxx
(1) – 250 mm backplane I2C cable – iPN H91166-xxx
(2) – 730 mm mini SAS HD cable – iPC AXXCBL730HDHD
(1) – 400/525/675 mm backplane power cable – iPN H82108-XXX
(1) – Standard 2U air duct – iPN H90554-xxx
(6) – Hot-swap system fans – iPC FR2UFAN60HSW
(8) – DIMM slot blanks – iPN G75158-00x
(2) – 1300W AC power supply module – iPC AXX1300TCRPS
(2) – AC power cord retention strap assembly – iPN H23961-00x
(2) – CPU heat sinks – iPC FXXCA78X108HS
(2) – Standard CPU carrier – iPN H72851-xxx
(1) – 3x Intel® RAID Maintenance Free Backup unit mounting bracket –
iPN H18238-00x
(1) – 250 mm fixed mount SSD power cable – iPN J29245-xxx
Spares for each screw type included
• Power cord(s) – See Section 5.6
• Rack mount kit – See Section 5.7
Note: By default the front drive bays are cabled to
onboard SATA only ports. An add-in SAS card or
module is needed to support SAS devices.
• Intel® Ethernet Network Adapter for OCP* - See
Chapter 5.4 for available options
• Intel® 12G SAS RAID module and Intel® RAID
Maintenance Free Backup unit - See Chapter 5.5
for available options
• SAS data cables – Depending on the location of
the SAS data controller, new data cables may be
necessary. See Chapter 4.
• PCIe* OCuLink data cables (1 per NVMe* drive) -
See Chapter 4
• 8 x 2.5” drive bay module upgrade kit – See
Section 4.7 for available options
• SATA upgrade key for Intel® Embedded Server
Technology 2 RAID 5 support – iPC RKSATA4R5
• Rear mount hot-swap drive bay accessory kit –
iPC A2UREARHSDK2
• ECC DDR4 memory (RDIMM or LRDIMM)
• Storage drives
See Chapters 5 and 6 for all available accessory
options.
