Intel® Server S2600WF Product Family Configuration Guide
71

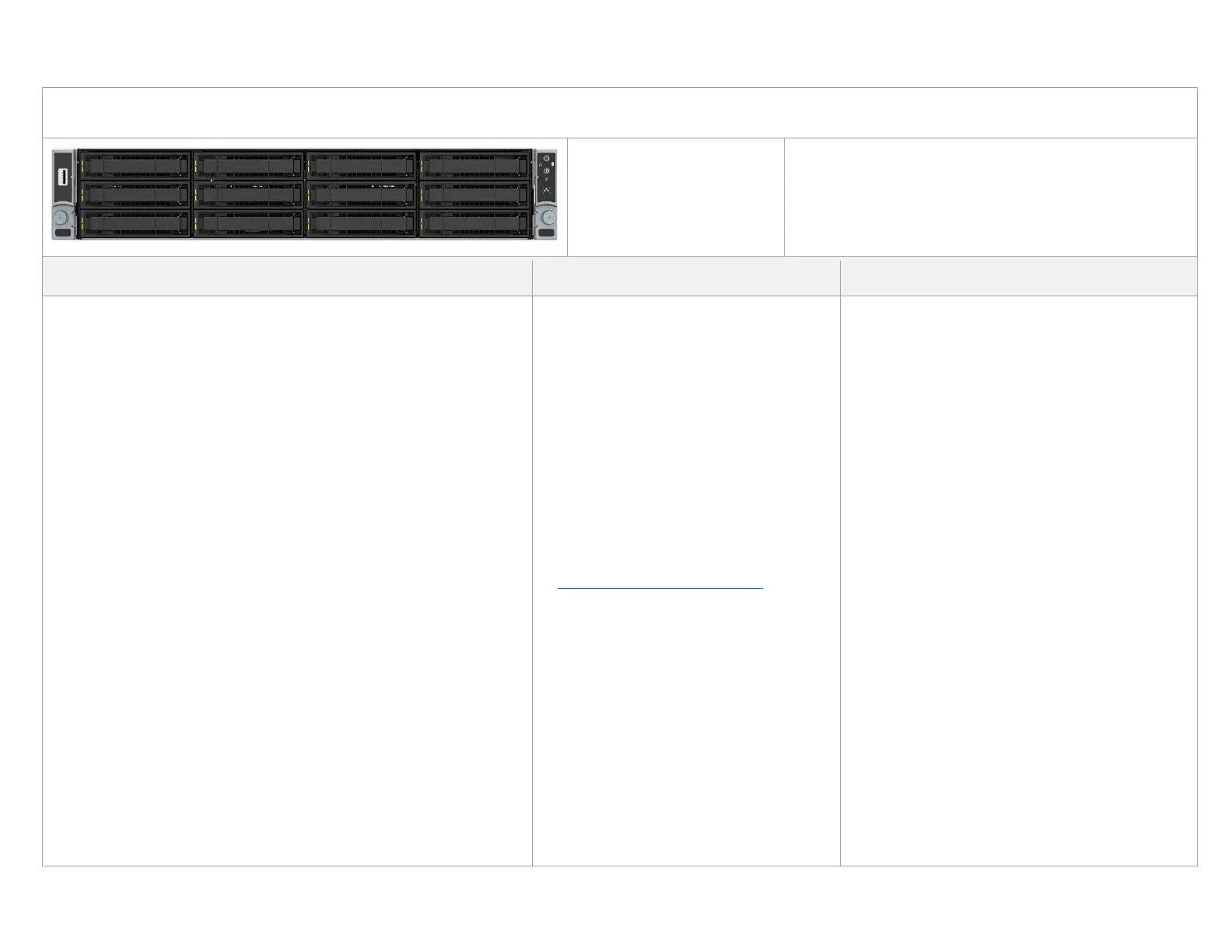

Table 36. Intel® Server System R2312WF0NP product specifications and configuration requirements
Intel® Server System R2312WF0NP
2U, Intel® Server Board S2600WF0, 12 x 3.5” HDD or 12 x 2.5” SATA/SAS front mount drives (support for up to 2 NVMe* drives)
iPC
R2312WF0NP
MM#
975812
UPC
00735858344821
EAN
5032037105538
MOQ
1
Product type
L6 integrated system
Chassis form factor
2U rack mount
Packaged gross wt.
23.4 kg (51.5 lb)
Un-packaged net wt.
16.9 kg (37.1 lb)
Chassis dimensions
712 x 439 x 89 mm (L x W x H)
Package dimensions
983 x 577 x 260 mm (L x W x H)
Included
Required Items (sold separately)
Optional Accessories (sold separately)
(1) – 2U Chassis with Quick Reference Label affixed to top cover
(1) – Intel® Server Board S2600WF0 (no onboard LAN) – iPC S2600WF0
(2) – PCIe* riser card brackets. Includes:
o (2) 3-slot PCIe* riser cards – iPC A2UL8RISER2
o (1) 2-slot low profile PCIe* riser card – iPC A2UX8X4RISER
(12) – 3.5” hot-swap drive bays with drive carriers and blanks. Includes:
o (1) SAS/NVMe combo backplane – iPC F2U12X35S3PH
o (12) 3.5” hot-swap drive tool less carriers – iPC FXX35HSCAR3
(1) – Storage rack handle assembly – iPC A2UHANDLKIT
o 1 set storage rack handles
o Mini front panel (board only – iPN G28538-xxx)
o 410 mm front panel cable – iPN H26893-xxx
o 640 mm front panel USB 2.0 cable iPN H20005-xxx
(1) – 175 mm Backplane I2C cable – iPN H91172-xxx
(1) – 800 mm Mini SAS HD cable – iPC AXXCBL800HDHD
(1) – 875 mm mini SAS HD cable – iPC AXXCBL875HDHD
(1) – 950 mm mini SAS HD cable – iPC AXXCBL950HDHD
(1) – 525/675 mm backplane power cable – iPN H82097-xxx
(1) – Standard 2U air duct – iPN H90554-xxx
(6) – Hot-swap system fans – iPC FR2UFAN60HSW
(16) – DIMM slot blanks – iPN G75158-00x
(1) – Power supply bay blank insert
(2) – AC power cord retention strap assembly – iPN H23961-00x
(2) – CPU heat sinks – iPC FXXCA78X108HS
(2) – CPU heat sink “NO CPU” Mylar* spacer insert – iPN J16115-XXX
(2) – Standard CPU carrier – iPN H72851-xxx
(2) – Chassis handle (1 set) installed – iPN H18229-xxx
(1) – 3x Intel® RAID Maintenance Free Backup unit mounting bracket –
iPN H18238-00x
(1) – 250 mm fixed mount SSD power cable – iPN J29245-xxx
Spares for each screw type included
• Power supply module(s) (choose one type)
– (2) common modules required for
redundancy
o 1300W AC power supply module –
iPC AXX1300TCRPS
o 1100W AC power supply module -
iPC AXX1100PCRPS
o 750 W DC power supply module -
iPC AXX750DCCRPS
• Power cord(s) – See Section 5.6
• Rack mount kit – See Section 5.7
• (1) or (2) 1
st
or 2
nd
Intel® Xeon® processor
Scalable family (support for 2
nd
Gen Intel
Xeon processor Scalable family requires a
system software stack update from
http://downloadcenter.intel.com
)
• ECC DDR4 memory (RDIMM or LRDIMM)
Note: By default the front drive bays are cabled to
onboard SATA only ports. An add-in SAS card or
module is needed to support SAS devices.
• Intel® Ethernet Network Adapter for OCP* - See
Chapter 5.4 for available options
• Intel® 12G SAS RAID module and Intel® RAID
Maintenance Free Backup unit - See Chapter 5.5
for available options
• SAS data cables – Depending on the location of
the SAS data controller, new data cables may be
necessary. See Chapter 4.
• PCIe* OCuLink data cables (1 per NVMe* drive) -
See Chapter 4
• SATA upgrade key for Intel® Embedded Server
Technology 2 RAID 5 support – iPC RKSATA4R5
• Rear mount hot-swap drive bay accessory kit –
iPC A2UREARHSDK2
• Storage drives
See Chapters 5 and 6 for all available accessory
options.
