Intel® Server S2600WF Product Family Configuration Guide
86

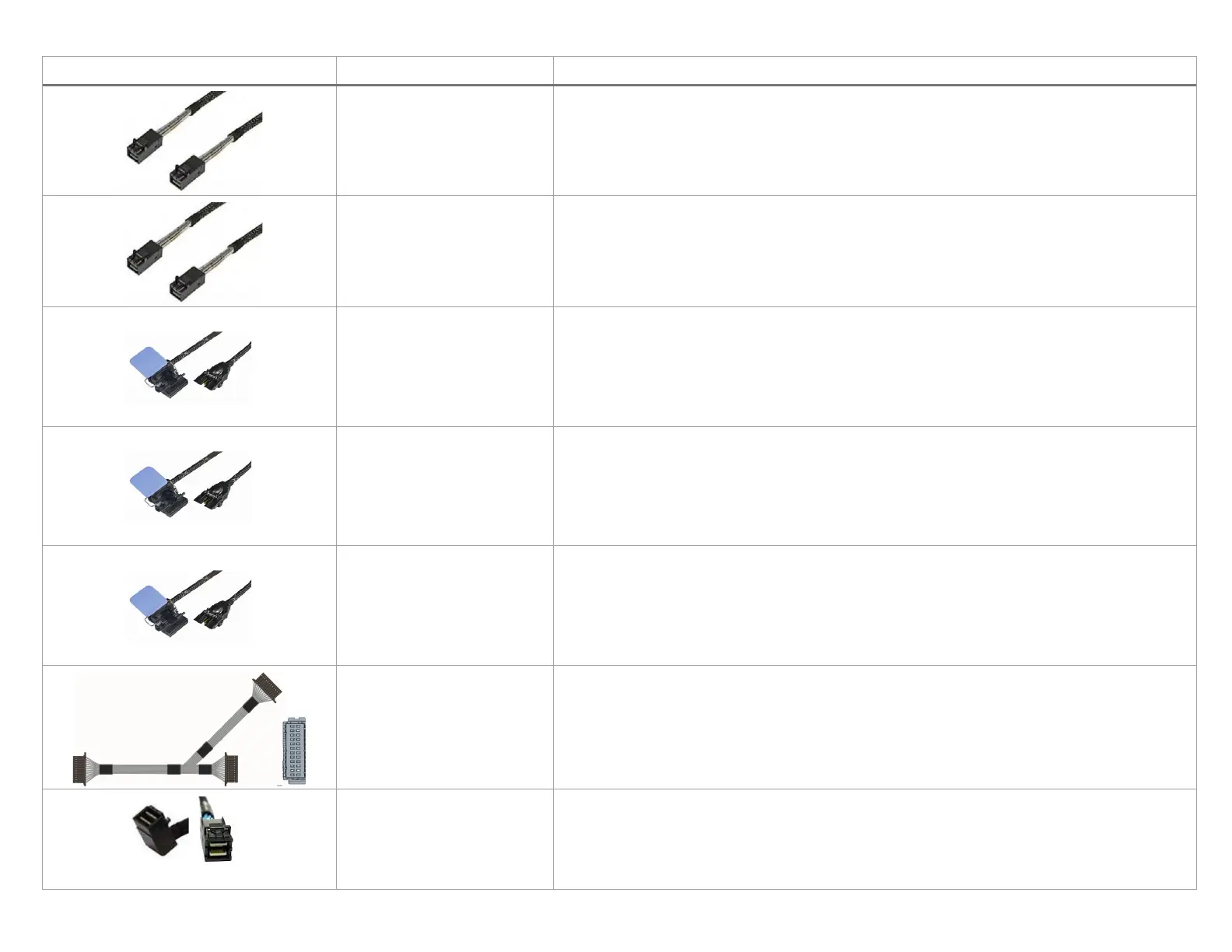

730 mm long, cable kit (2 cables included) straight SFF8643 to straight SFF8643
Used in multiple systems as spare and/or accessory (R1208, R2208, R2308)
650 mm long, cable kit (2 cables included) straight SFF8643 to straight SFF8643
Used as accessory when installing 12G ROC module in R1208 for optimal cabling. (longer cable
may be used)
Accessory/Spare cable kit – 235 mm long (iPN H79272-xxx), 1 cable included
• This is an accessory cable for IFT Carrier Kit AWF1PFABKITP. A required cable to connect fabric
processor #2 to the PCIe add-in IFT Carrier card installed to Riser #2
• This is a replacement cable for IFT Carrier kit AWF1PFABKITM.
Spare cable kit – 235 mm long (iPN H79267-xxx), 1 cable included
This is a replacement cable for IFT Carrier kit AWF1PFABKITP.
Updated 10/19
Accessory cable kit - 370 mm long (iPN H79275-xxx), 1 cable included
This is an accessory cable for IFT Carrier Kit AWF1PFABKITM. A required cable to connect fabric
processor #2 to the Mezzanine IFT Carrier card.
Update 10/19
430 mm long, spare cable kit (1 cable included), bundled straight 430mm, 2x12 HFI Sideband Y
Cable, Single Intel® Omni-Path Sideband IFT Carrier to dual Intel Omni-Path CPU connectors
Used to connect SB Intel Omni-Path IFT Carrier board or Mezzaine to the server board in support
of fabric processors
650 mm long, spare/accessory cable kit (2 cables included), straight HD Mini SAS SFF8643
connector to right angle HD Mini SAS SFF8643 connector
Used in a R1208 as a spare and/or accessory to connect on-board mSAS-HD connectors to the
HSBP connector for drives 0-3
Not compatible with SAS ROC Modules with vertical connectors in 1U systems
