Intel® Server Board S2600CO Family TPS Functional Architecture Overview
Revision 1.0 39
Intel order number G42278-002

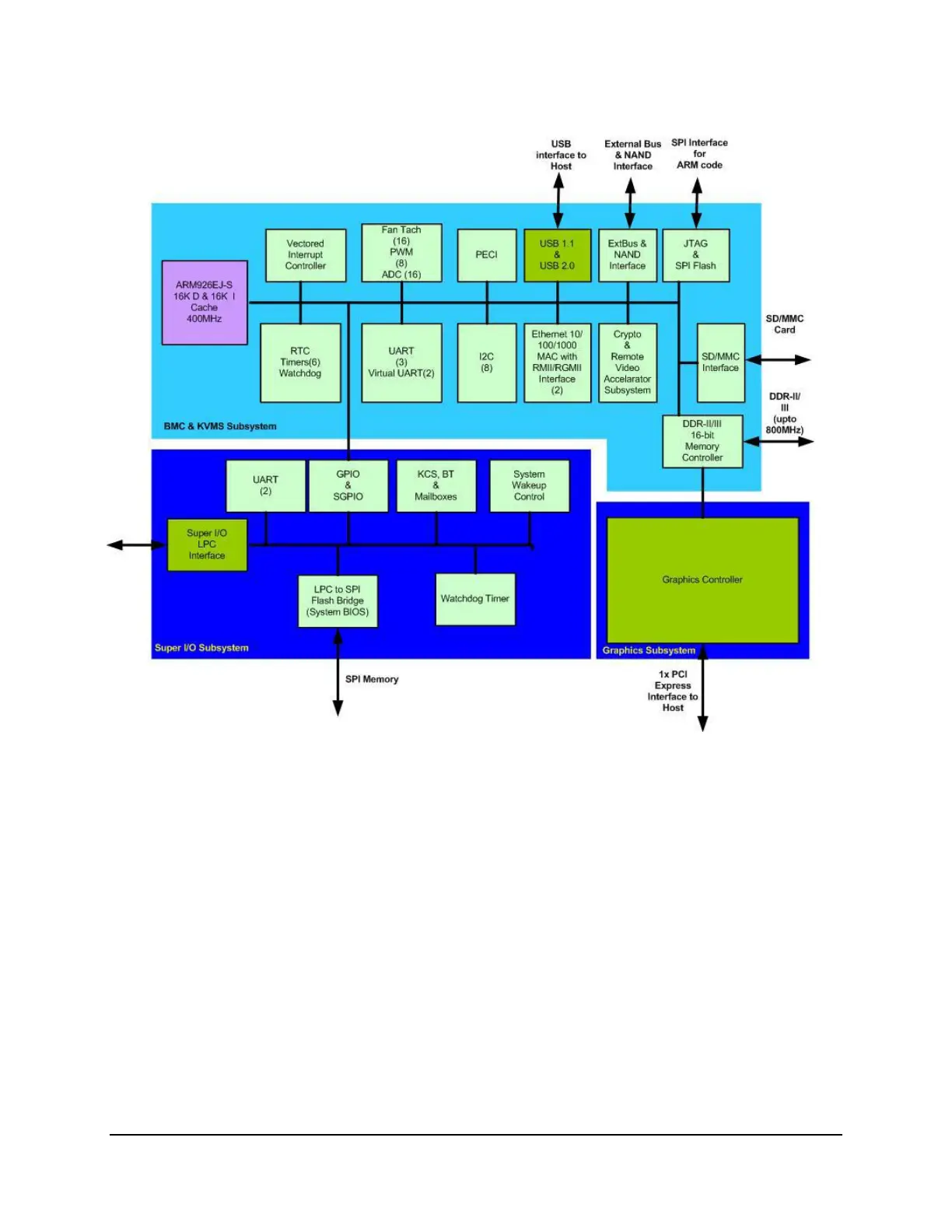

Figure 18. Integrated BMC Hardware
3.4.1 Super I/O Controller
The integrated super I/O controller provides support for the following features as implemented
on the server board:
 Two Fully Functional Serial Ports, compatible with the 16C550
 Serial IRQ Support
 Up to 16 Shared direct GPIO’s
 Serial GPIO support for 80 general purpose inputs and 80 general purpose outputs
available for host processor
 Programmable Wake-up Event Support
 Plug and Play Register Set
 Power Supply Control
 Host SPI bridge for system BIOS support
