Functional Architecture Overview Intel® Server Board S2600CO Family TPS
38 Revision 1.0
Intel order number G42278-002
functions no longer decode I/O, memory, or PCI configuration space. Also, no interrupts
or power management events are generated from the disabled functions.
3.4 Integrated Baseboard Management Controller Overview
The server board utilizes the I/O controller, Graphics Controller, and Baseboard Management
features of the Server Engines* Pilot-III Server Management Controller. The following is an
overview of the features as implemented on the server board from each embedded controller.
Intel® C600
Series Chipset
Integrated
BMC
LPC (33MHz)
USB 2.0 (480Mbs)
SMBUS PORTS
NC-SI PORT 0 (RGMII)
VIDEO RGB
RMM4 Dedicated NIC
Module Connector
SERIAL PORT 1
2x5 HDR
TPM
Connector
SERIAL PORT 0
PCIe Gen1 x1
DRAM
16MB
iBMC SPI
Flash
DRAM
128MB
DDR3
USB 1.1 (12Mbs)
USB[10]
USB[3]

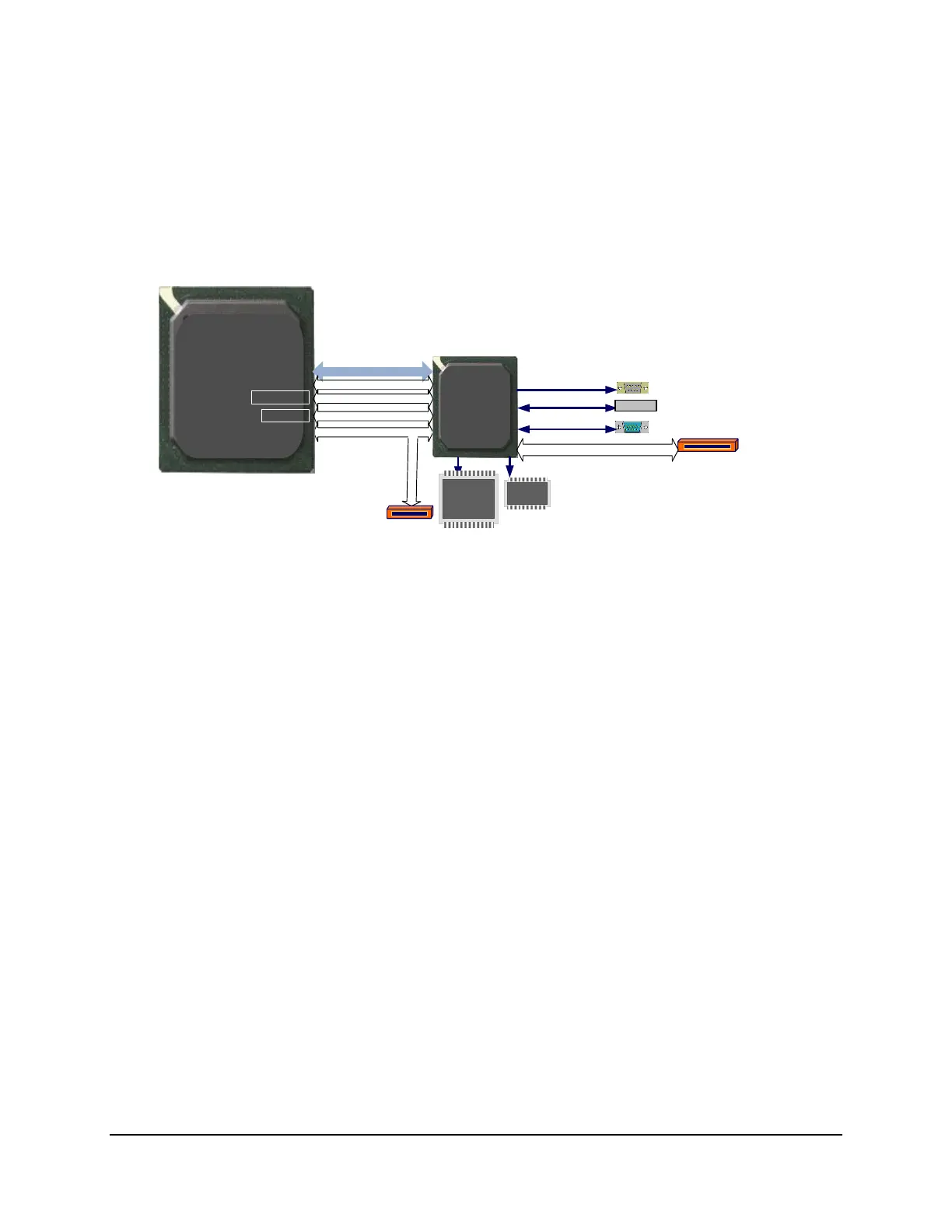

Figure 17. Integrated BMC Functional Block Diagram
