Appendix B: Compatiable Intel® Server Chassis Intel® Server Board S2600CO Family TPS
Revision 1.0
Intel order number G42278-002

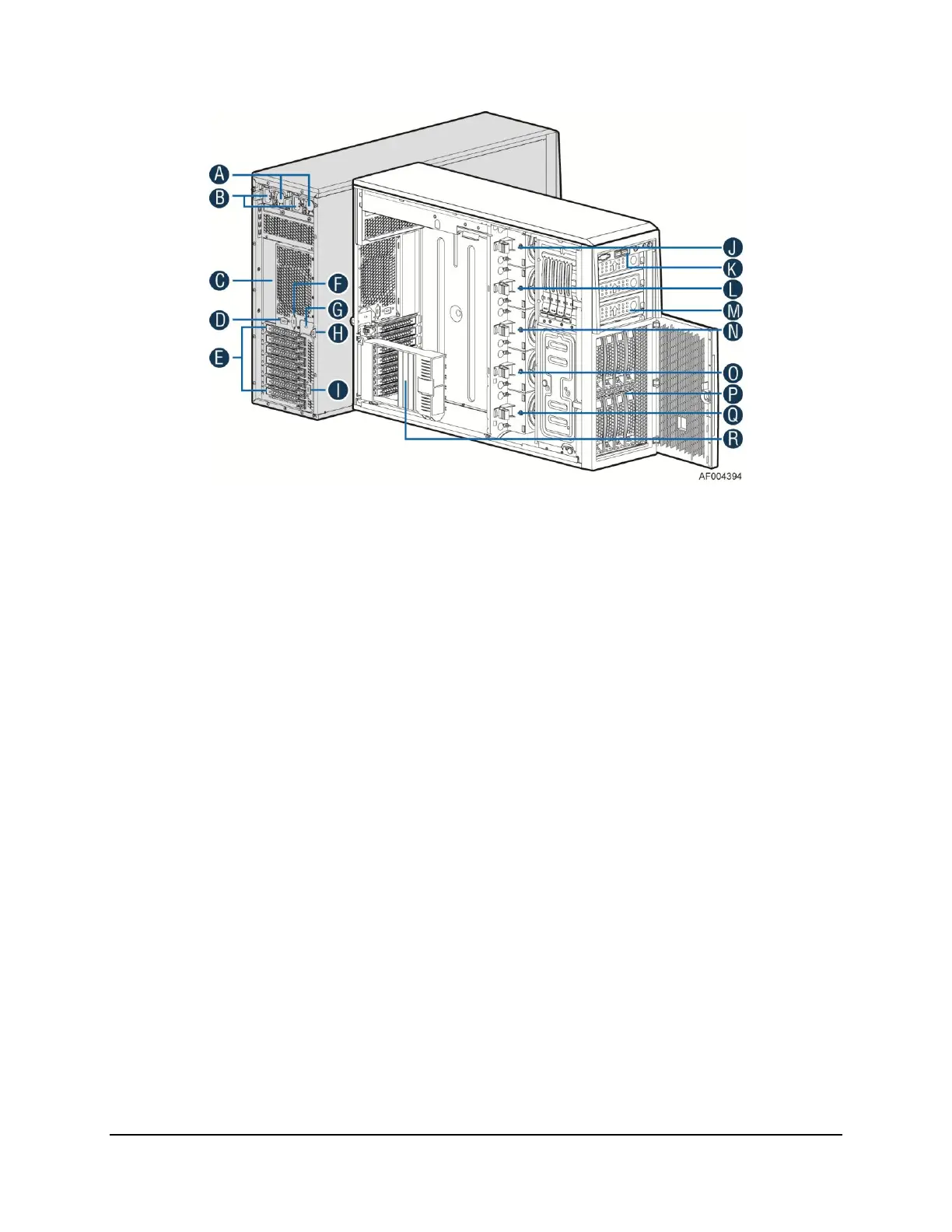

A. 750-W Hot Swap Power Supply (Two)
B. AC Input Power Connector (Two)
C. I/O Ports
D. Alternate RMM4 Knockout
E. PCI Add-in Board Slot Covers
F. Serial Port Knockout
G. A Kensington* Cable Lock Mounting Hole
H. Padlock Loop
I. Alternate RMM4 Knockout
J. Hot-swap System Fan 5
K. Front Control Panel
L. Hot-swap System Fan 4
M. 5.25’’ Peripheral Bays
N. Hot-swap System Fan 3
O. Hot-swap System Fan 2
P. 8x3.5’’ Hot-swap HDD Cage
Q. Hot-swap System Fan 1
R. PCI Card Retainer
Figure 30. Intel
®
Server Chassis P4308XXMHGC
