Intel® Server Board S2600CO Family TPS Platform Management Functional Overview
Revision 1.0 61
Intel order number G42278-002
 Baseboard temperature sensors
 CPU DTS-Spec margin sensors
 DIMM thermal margin sensors
 Exit air temperature sensor
 Global aggregate thermal margin sensors
 SSB (Intel
®
C600 Series Chipset) temperature sensor
 On-board Ethernet controller temperature sensors (support for this is specific to the
Ethernet controller being used)
 Add-in Intel SAS/IO module temperature sensor(s) (if present)
 Power supply thermal sensors (only available on PMBus-compliant power supplies)

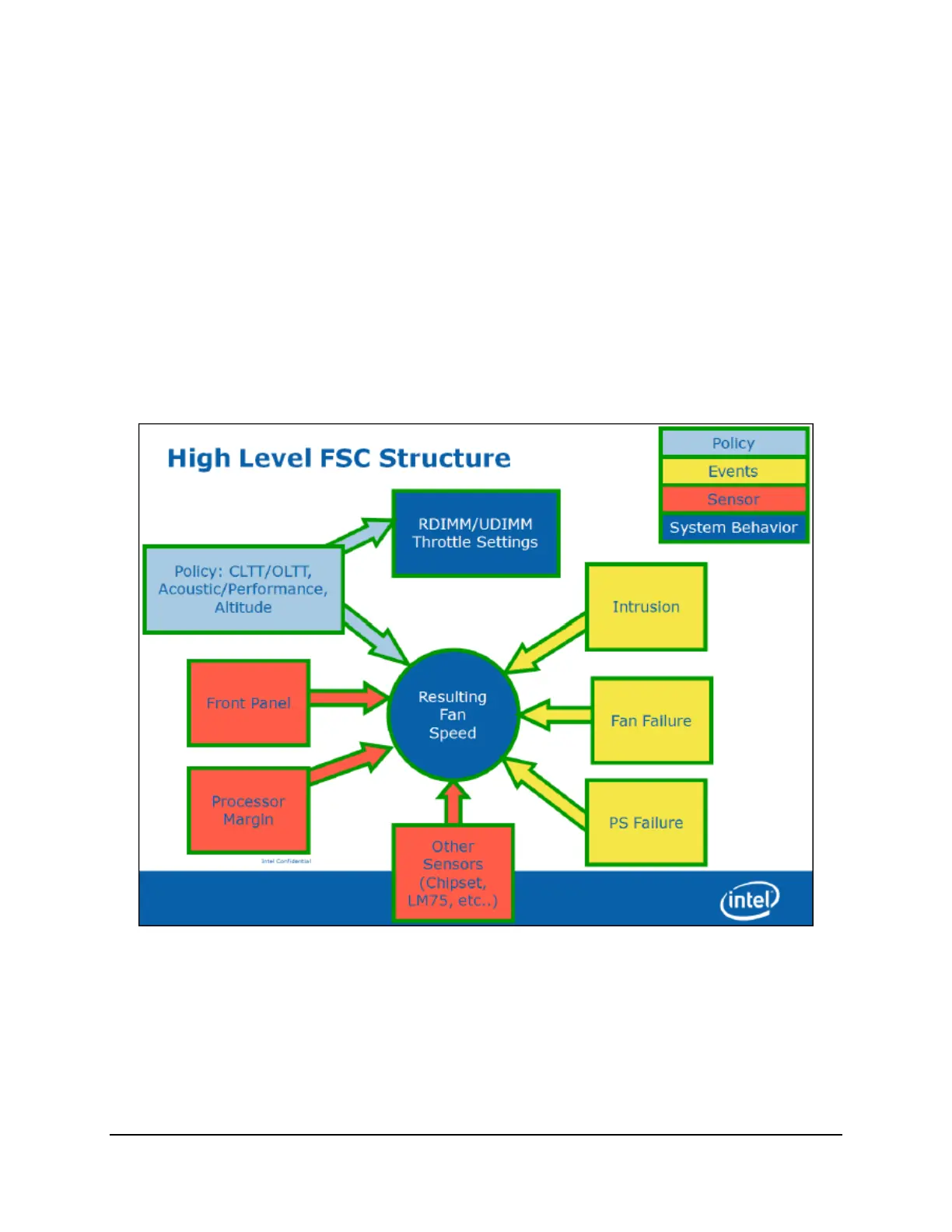

The following illustration provides a simple model showing the fan speed control structure that
implements the resulting fan speeds.
Figure 20. High Level Fan Speed Control Structure
