1 Server Board Features
This chapter briefly describes the main features of the Intel
®
Server Board S5000PSL.
This chapter provides a photograph of the product, a list of the server board features, and
diagrams showing the location of important components and connections on the server
board.

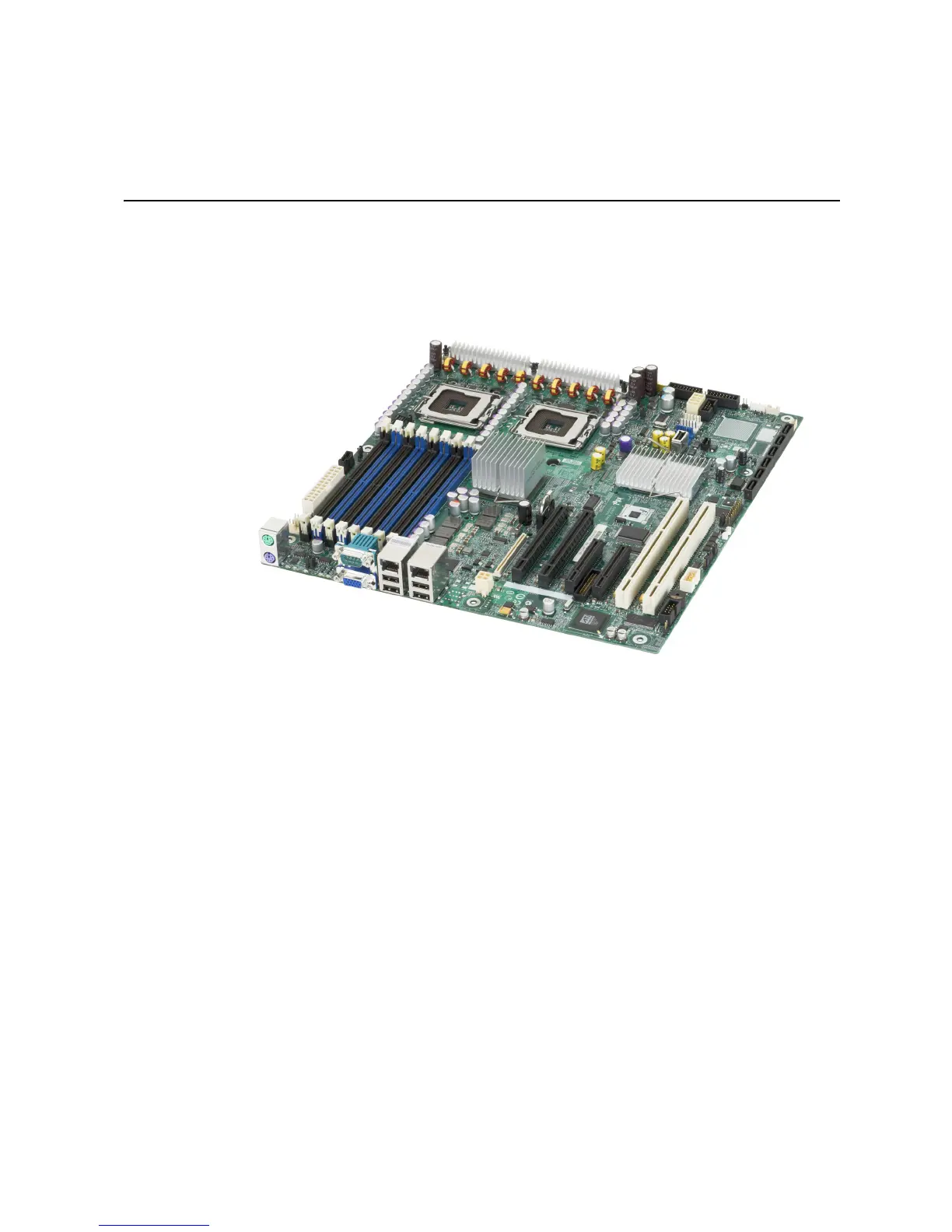

Figure 1. Intel
®
Server Board S5000PSL

Intel S5000PSL Specifications

General

Socket Type	LGA 771
Chipset	Intel 5000P
Maximum Memory	32 GB
RAID Support	RAID 0, 1, 10, 5
Network	Dual Gigabit Ethernet
Serial Ports	1
Parallel Port	1
Product Type	Server Board
CPU Supported	Intel Xeon 5000 series
Memory Slots	8
Memory Type	DDR2
SATA	6 SATA 3.0 Gb/s ports
Integrated LAN	Intel 82563EB
Graphics	ATI ES1000
Power Connector	24-pin ATX 8-pin EPS12V
