Intel
®
Server Board S5000PSL 41

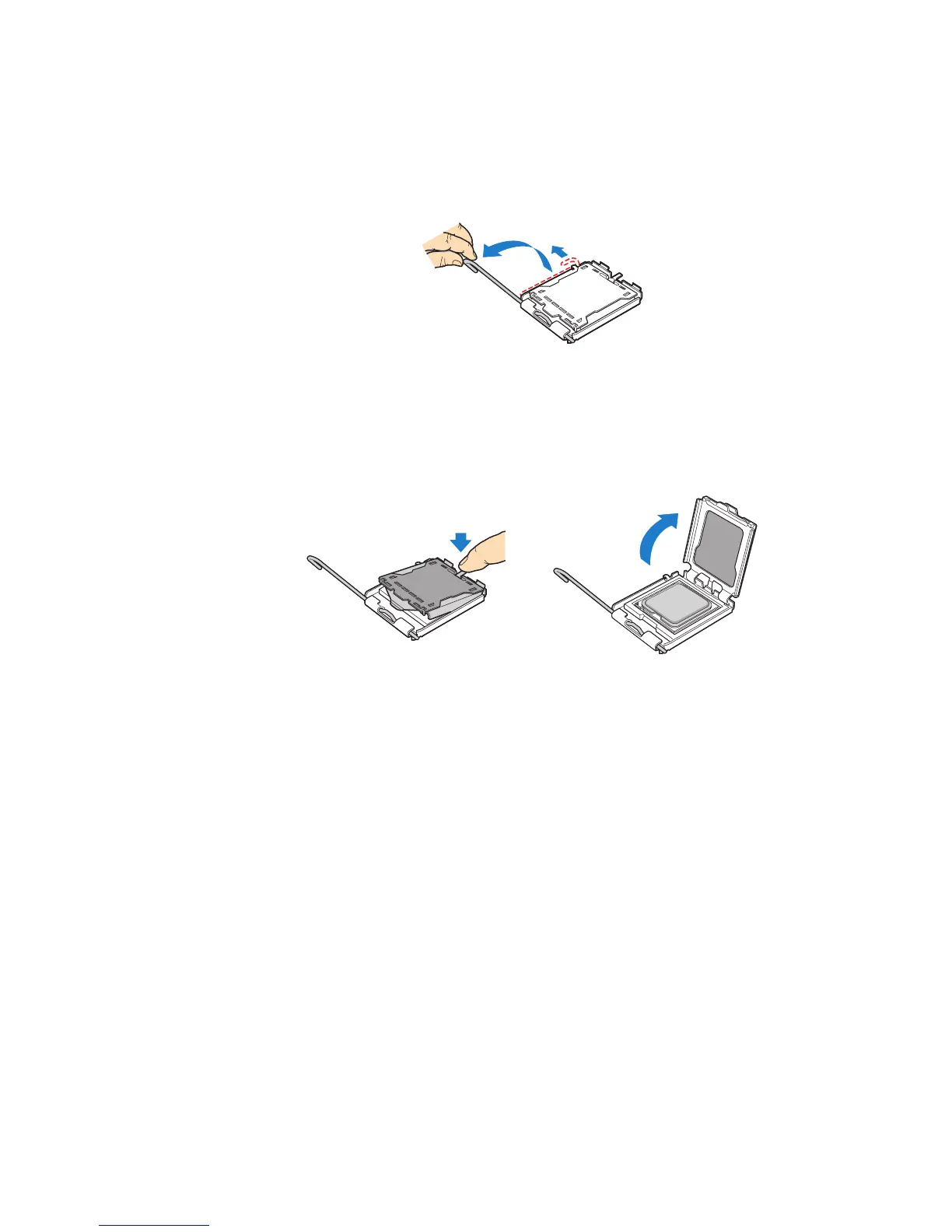

10. Push down on the lever attached to the processor socket. While holding the lever
down, pull it towards the center of the board to disengage the lever from the hook.
Fully open the lever. See Figure 18.
Figure 18. Opening Processor Socket Lever
11. Push down on the rear tab of the load plate to swing the front of the load plate up
slightly. Fully open the load plate. See Figure 19.
Figure 19. Opening Load Plate
AF000095
AF000415
To Next Page
