12 Intel
®
Server Board S5000PSL
Back Panel Features
The diagram and table show the back panel connectors and LEDs. For information about
the LEDs, see “Intel® Light-Guided Diagnostics” on page 9.

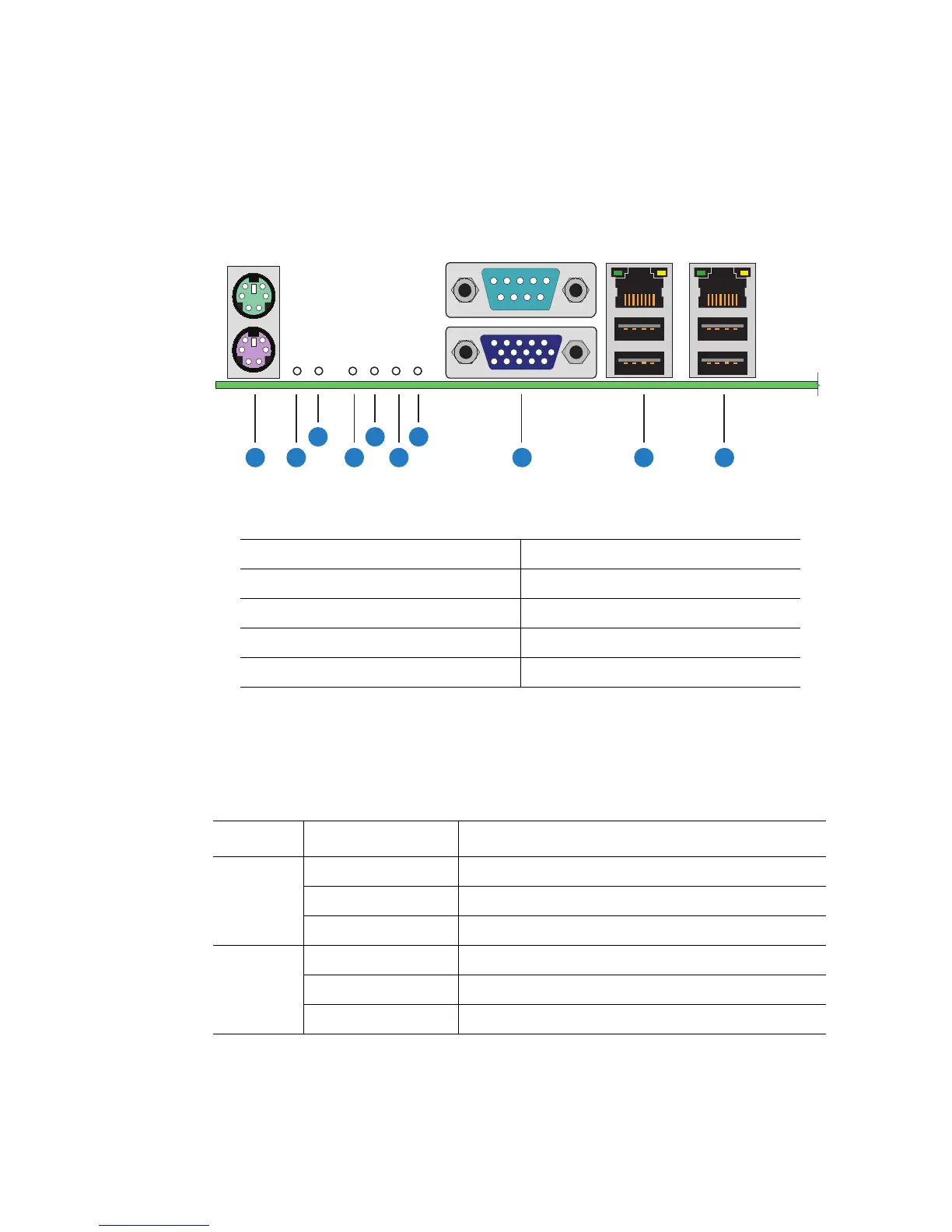

Figure 4. Back Panel Connectors and LEDs
The NIC LEDs at the right and left of each NIC provide the following information.
A. Mouse (top), Keyboard (bottom) F. Bit 1 LED (POST LED)
B. Status LED G. LSB LED (POST LED)
C. ID LED H. Serial A (top), Video (bottom)
D. MSB LED (POST LED) I. NIC1 (top), two USB (bottom)
E. Bit 2 LED (POST LED) J. NIC 2 (top), two USB (bottom)
Table 3. NIC LEDs
LED LED State Description
Left Off No network connection is in place
Solid green Active network connection is in place
Blinking green Transmit / receive activity is occurring
Right Off 10 Mbps connection (if left LED is on or blinking)
Solid green 100 Mbps connection
Solid amber 1000 Mbps connection
AF000421
A H I JB D F
C E G
