30
Intel
®
Server Board S5000PSL
5.
Locate the DIMM sockets (see
Figure
9
).
6.
Disconnect and remove any components
necessary to access the DIMM sockets.
See the documentation that came with your
chassis for instructions on removing
chassis components.

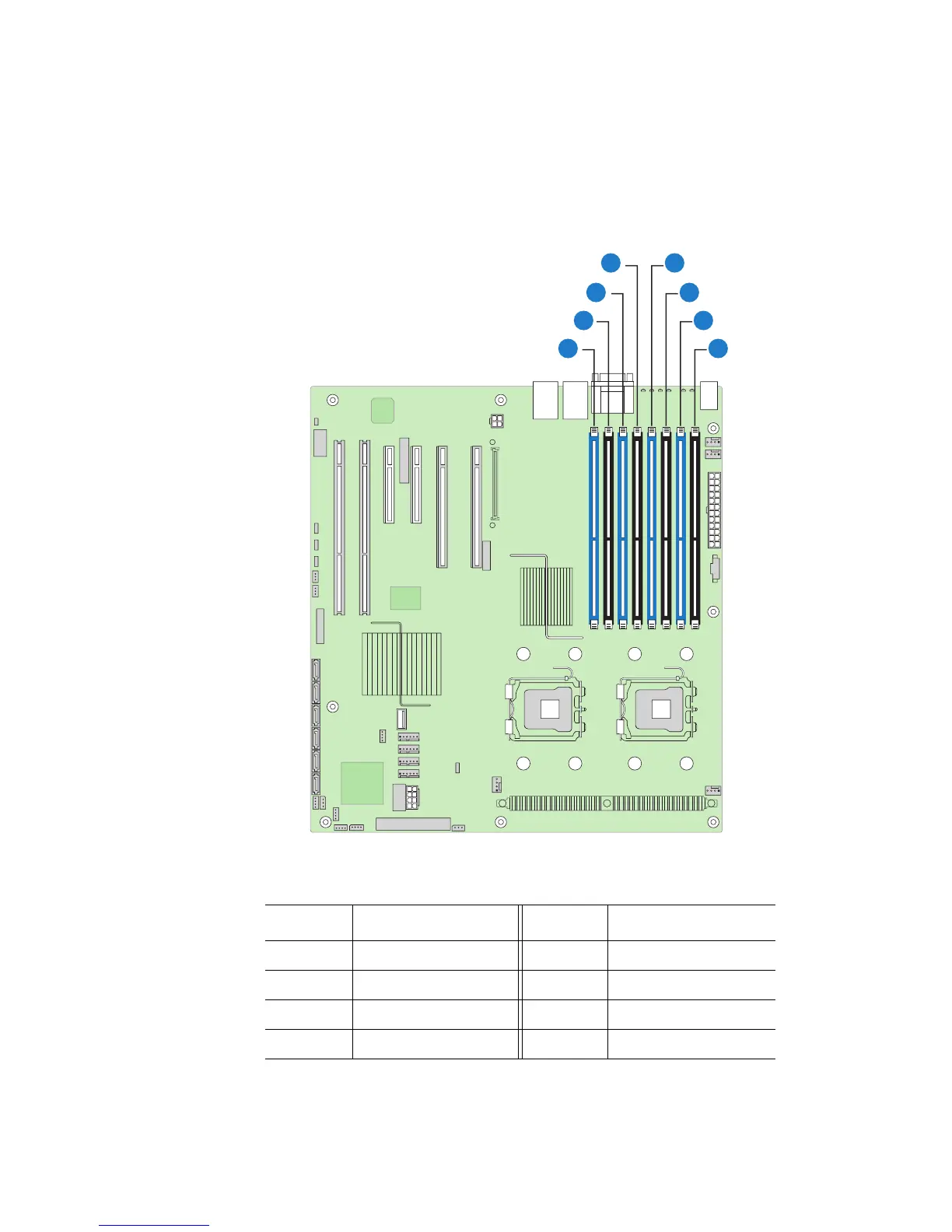

Figure 9. Locating DIMM Soc
kets
Callout
DIMM Socket
Callout
DIMM Socket
A.
DIMM_A1
E.
DIMM_C1
B.
DIMM_A2
F
.
DIMM_C2
C.
DIMM_B1
G.
DIMM_
D1
D
.
DIMM_B2
H.
DIMM_D2
AF000093
A
B
C
D
E
F
G
H
47
