Intellian i4 Inland User Manual

16
Intellian Satellite TV Antenna Systems
Mounting the Antenna
Attach the antenna by using the hex head bolts (M8X35L), M8 spring
washers, and M8 flat washers supplied.

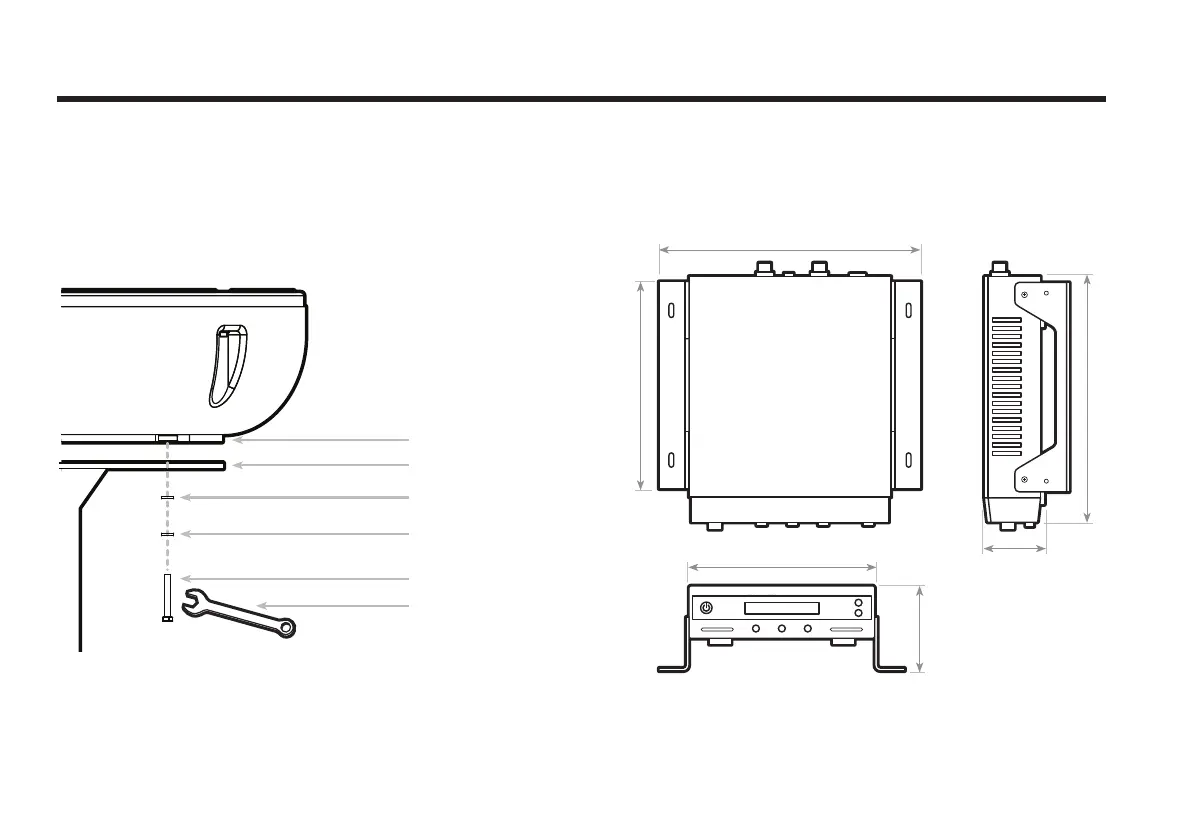

Figure 12 : Mounting the Antenna
Radome Base
Deck
M8 Flat Washer
M8 Spring Washer
M8 Hex. Bolt
13mm Spanner
ACU Dimensions
Installing the ACU
5.4 cm (2.1”)
5.5 cm (2.2”)
22.8 cm (9”)
17.8 cm (7”)
21.7 cm (8.5”)
18.5 cm (7.3”)
Figure 13 : Dimension of ACU
