Adjusting the LNB Skew Angle
(Linear Polarization Only)
LNB Skew Angle
The LNB skew angle only needs to be adjusted when the target satellite
is linear polarized. In order to receive the maximum satellite signal level,
the LNB skew angle must be adjusted according to the calculation of
current GPS location and target satellite.
It only needs to be adjusted when changing from one satellite to
another, or when the vessel has traveled a significant geographic
distance. It should NOT need to be readjusted if the vessel stays in the
same location and is operating on the same satellite.
Adjust Skew angle Manually
Polarization of your Intellian i4 Inland antenna must be accomplished
manually by the following steps.
• Remove the upper part of Radome after switching power OFF.
• Loosen 4 bolts of the connection of LNB and feed horn.
• Turn LNB to place it to the angle indicated on the back of the feed horn.
• Tighten the 4 bolts.
- +
- +

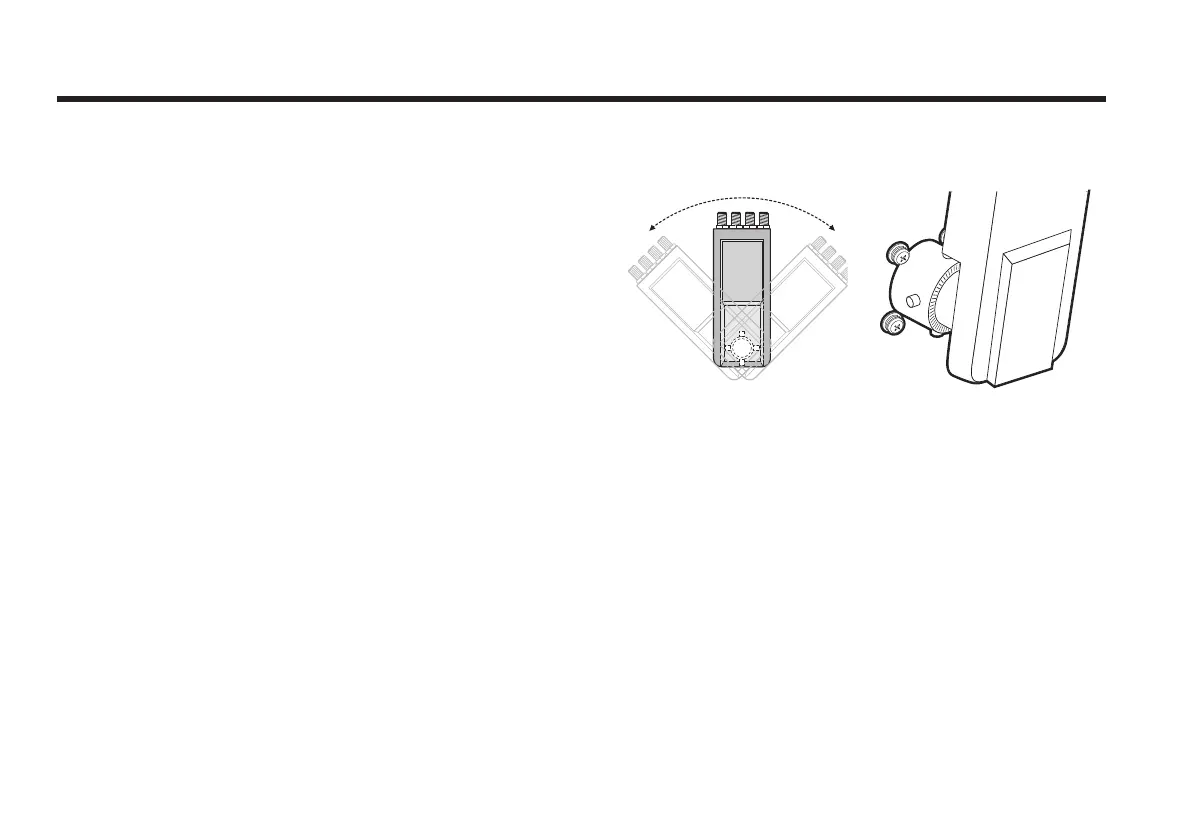

Figure 19 : Manual LNB Skew Angle Adjustment
