Intellian i4 Inland - Program Initialing and Serial Port Setup

49
Program Initialing and Serial Port Setup
Data communication between the ACU and antenna must be established as the first step in order to start setting your antenna.
Command Buttons
• Baud Rate Setting – To display data communication speed.
• Communication Status Display – To display data communication between ACU and PC.
• Serial Port Setting – To select serial port to be used.
• Connect / Disconnect – To establish connection between ACU and PC.

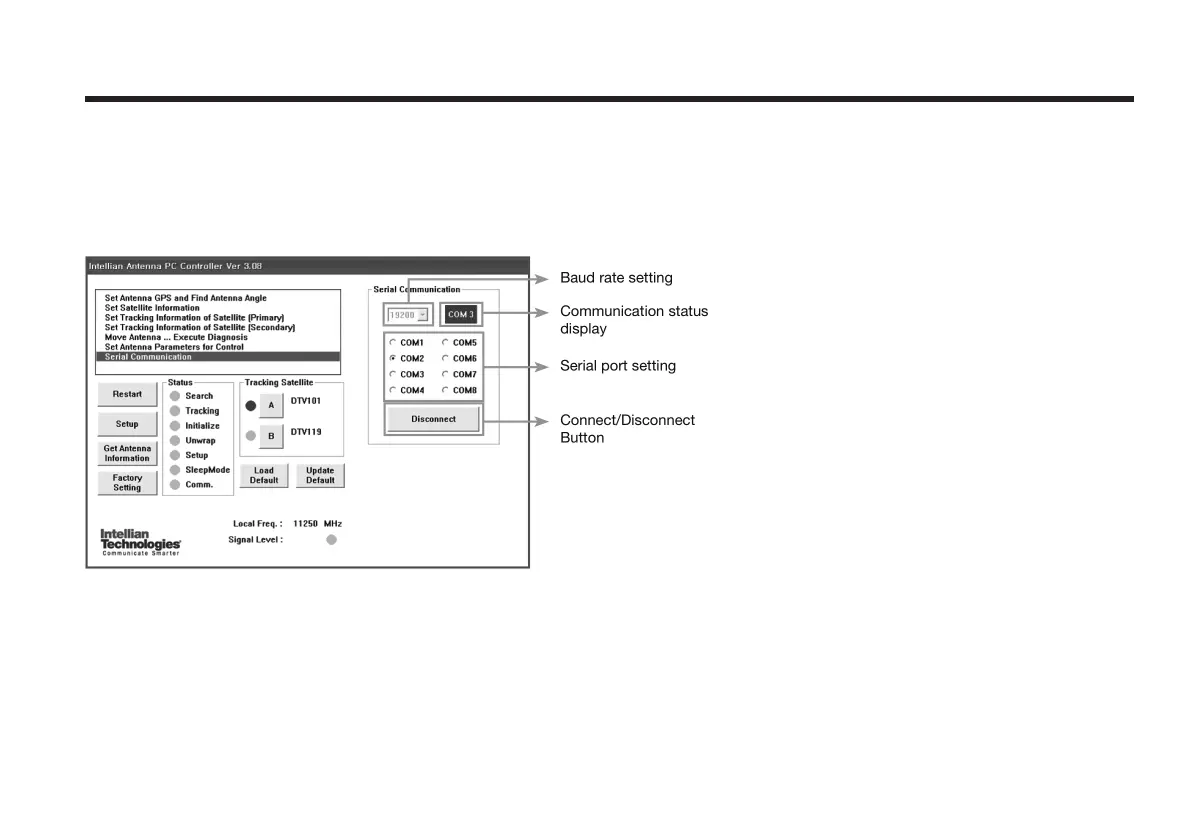

Figure 22 : Setup for Serial Communication
