52
Intellian Satellite TV Antenna Systems
Controller Menus
Set Antenna GPS and Find Antenna Angle
Antenna makes use of GPS information to search satellite faster. More precise the GPS information is, quicker
the antenna is able to search for a satellite. The method to input information into GPS is to push “Set GPS”
button after keying in the latitude and longitude information on “City GPS”. Pushing “Add City” button stores the
GPS information. By selecting the stored region in the list box, the GPS information of each region is displayed.
The Intellian satellite TV antenna system utilizes GPS data to locate the satellite faster.
Command Buttons
• Load GPS Files – Reads various city information from the GPS files.
• Add City – Adds the name of city and its GPS information to GPS files.
• Delete City – Deletes the name of city and its GPS information from the GPS files.
• Set GPS – Inputs the indicated GPS information on display to antenna.
• Find Angles & Skew Antenna GPS – Finds the current antenna angle and
skew angle in relation
to the longitude (orbit position) of satellite and antenna current GPS.
• Find Angles & Skew City GPS – Finds the current antenna angle and
skew angle in relation to the longitude (orbit position) of satellite and city GPS.

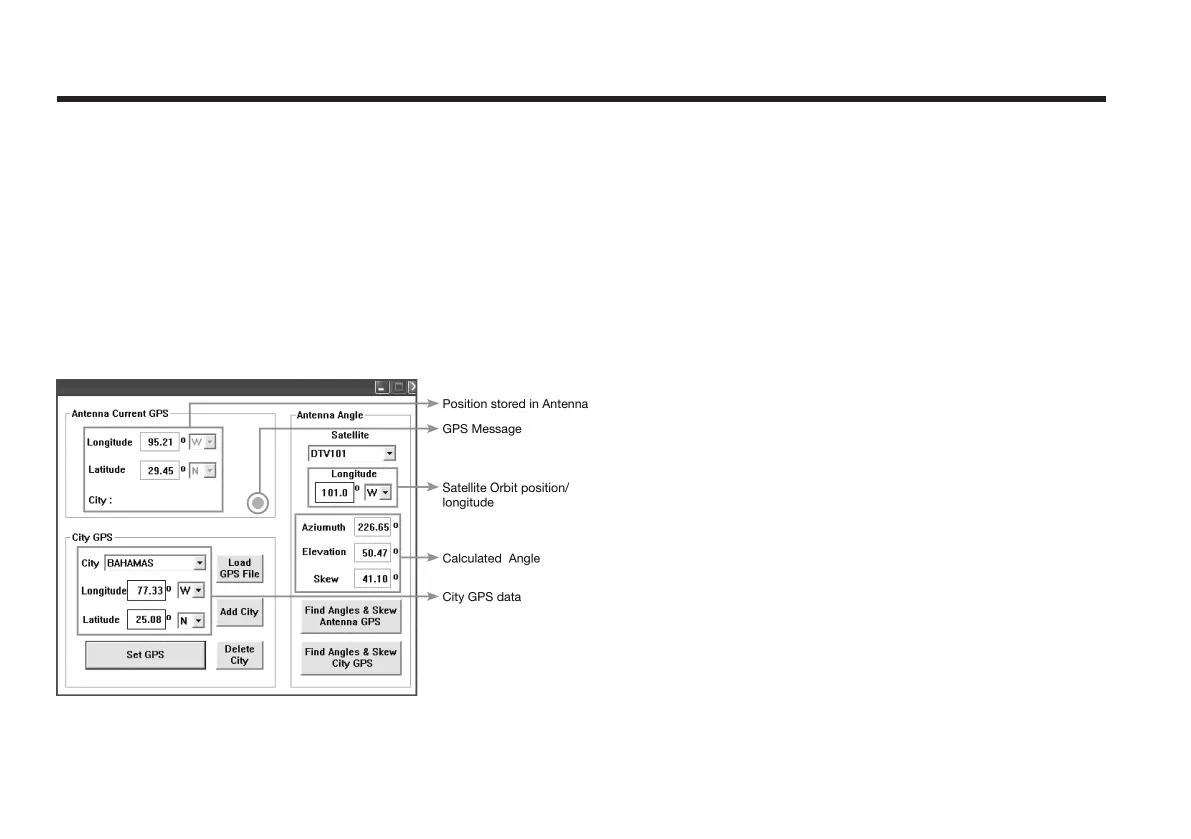

Figure 27 : Antenna Angle and GPS Information
