48
Intellian Satellite TV Antenna Systems
Introduction
GUI Software of Intellian i3/i3L/i4/i4P has been created for the user to easily set up the antenna by using the user’s
personal computer. Using the GUI program enables the user to easily monitor and modify the information of antenna,
satellite and GPS. Additionally, the detailed diagnostic methods of the antenna are provided by the GUI program.
Operation Using PC Controller Program

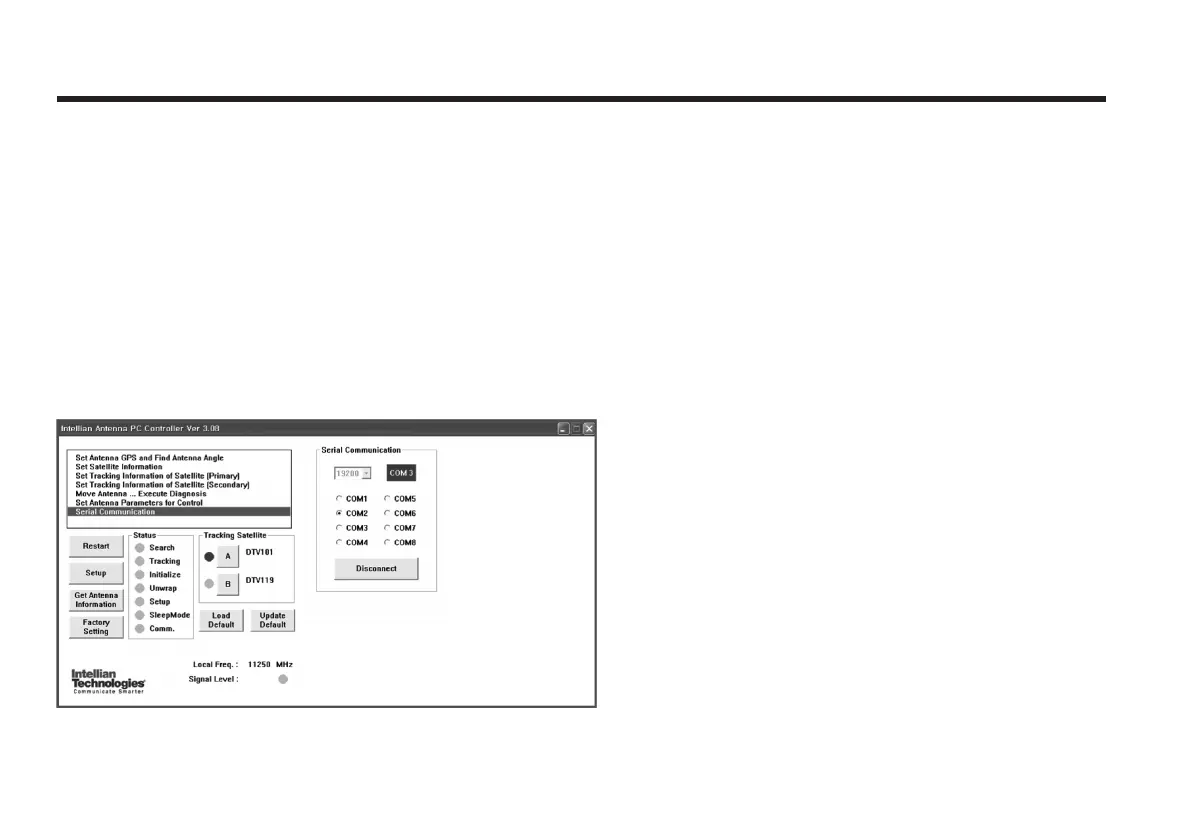

Figure 21 : Intellian Antenna PC Controller Program
To start this GUI program,
1. Connect one end of PC serial cable to the serial port on the computer.
2. Connect the other end of the PC serial cable to the “PC INTERFACE” on the rear of ACU.
3. Execute GUI program by inserting the supplied CD-ROM into the CDROM drive of the computer.
To Next Page
