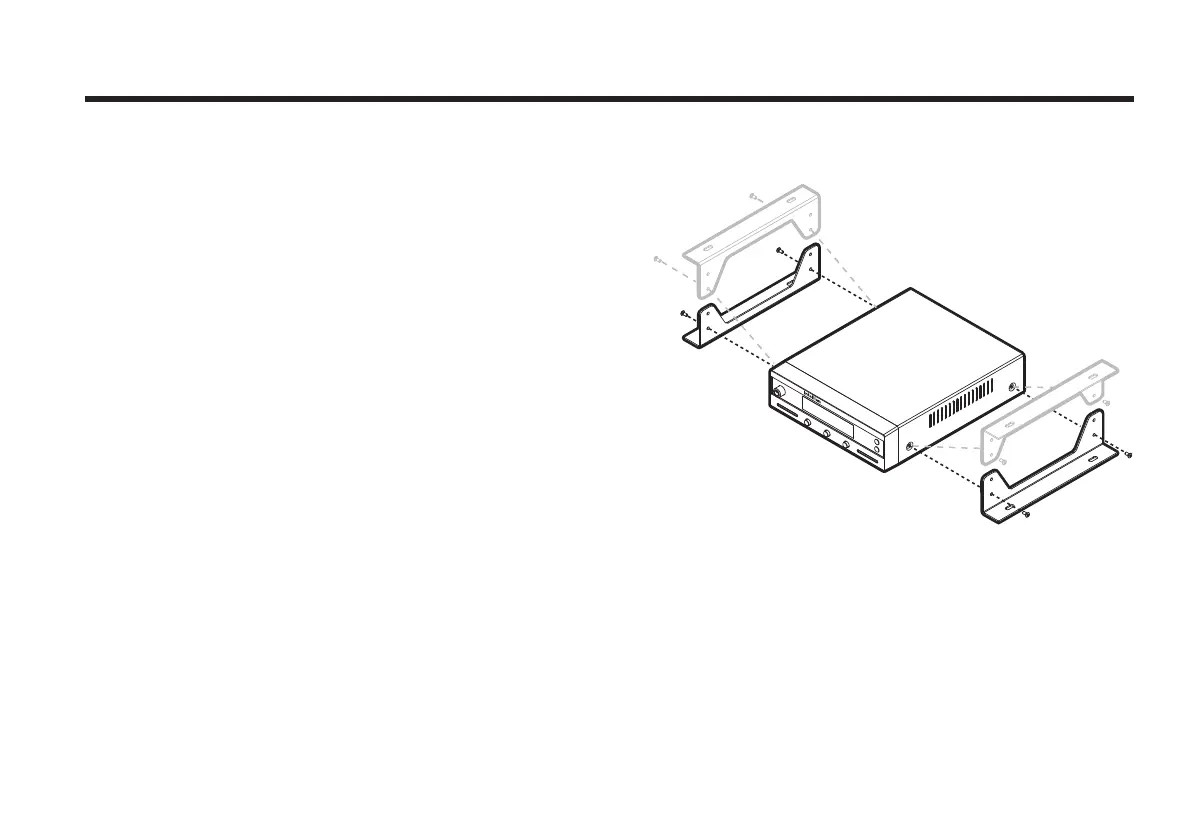

Figure 14 : Installation of ACU
Selecting ACU Installation Site
The ACU should be installed below deck, in a location that is:
• Dry, cool, and ventilated.
• Easy access from your main TV viewing area.
To Install the ACU
1. The ACU should be installed using the two supplied mounting
brackets which allow for a top or bottom mounting configuration.
2. Using the self tapping screws supplied, attach the mounting brackets
to the sides of the ACU.
3. Place the ACU in the location where it is going to be installed.
4. Connect the cables to the rear of the ACU.
5. Use a pencil to mark the 4 hole positions (two on each side), and
use the appropriate drill bit to drill.
To Next Page
