60
Intellian Satellite TV Antenna Systems
1. Refer to the drawing on the right.
2. Rotate antenna left and right slowly until the limit switch is pressed.
3. Turn the antenna by 360° to the reverse direction.
4. Insert the restraint foam to secure the pedestal in position with the bottom
radome.
5. Cover upper part of radome. Be careful not to touch the reflector
when assembling upper part of radome.
6. Pack Intellian i4 Inland into the original package box.
NOTE : Don’t rotate it quickly, or you may damage the antenna limit system.
Preparation for Transportation
This is to describe how to prepare the antenna internally for transportation.
The following procedures to secure the antenna shall be strictly observed to protect it from being damaged during transportation.

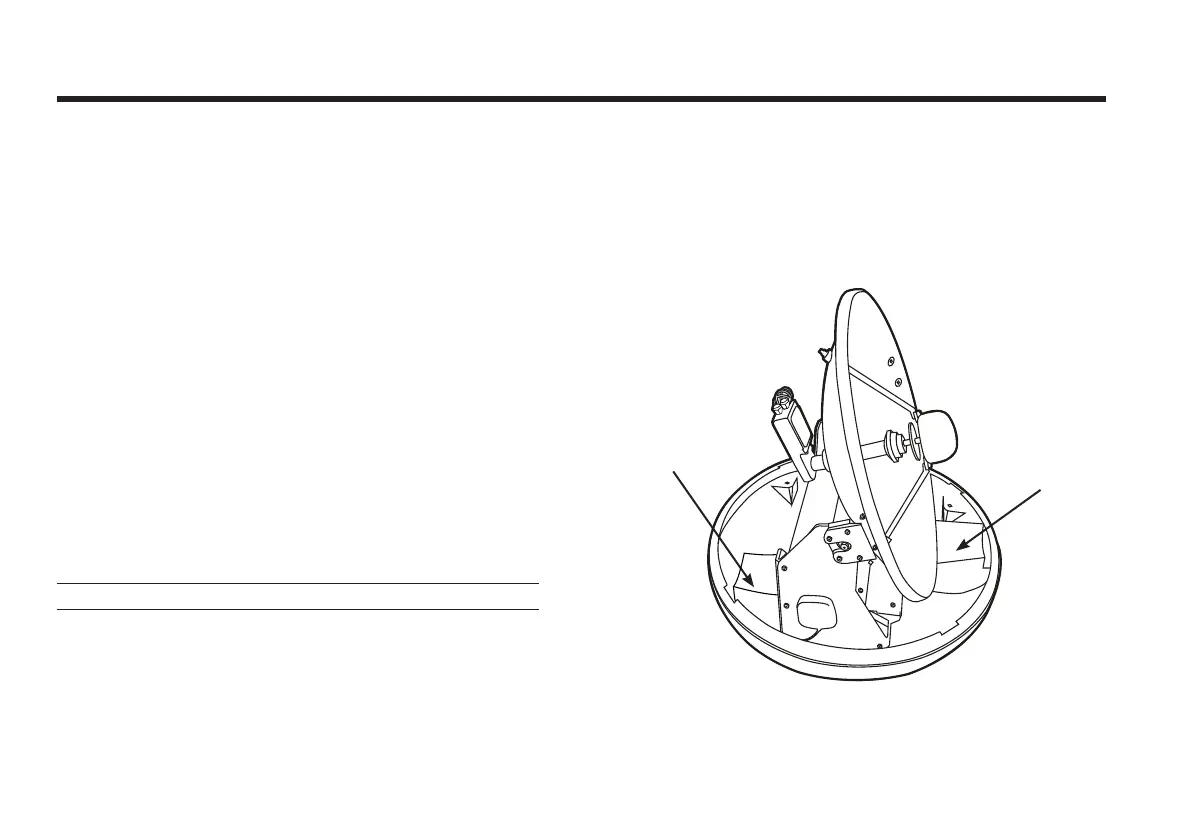

Figure 34 : Preparation for Transportation
Shipping Foam
Shipping Foam
