Basic System Conguration of Intellian Inland
For your satellite TV system to function properly, the system will have
to be connected with all of the provided components as shown on the
right. (Refer to the next chapter ‘Installation’ in this manual for more
detailed connection instructions). Separate purchase of a satellite
receiver and a TV is required.

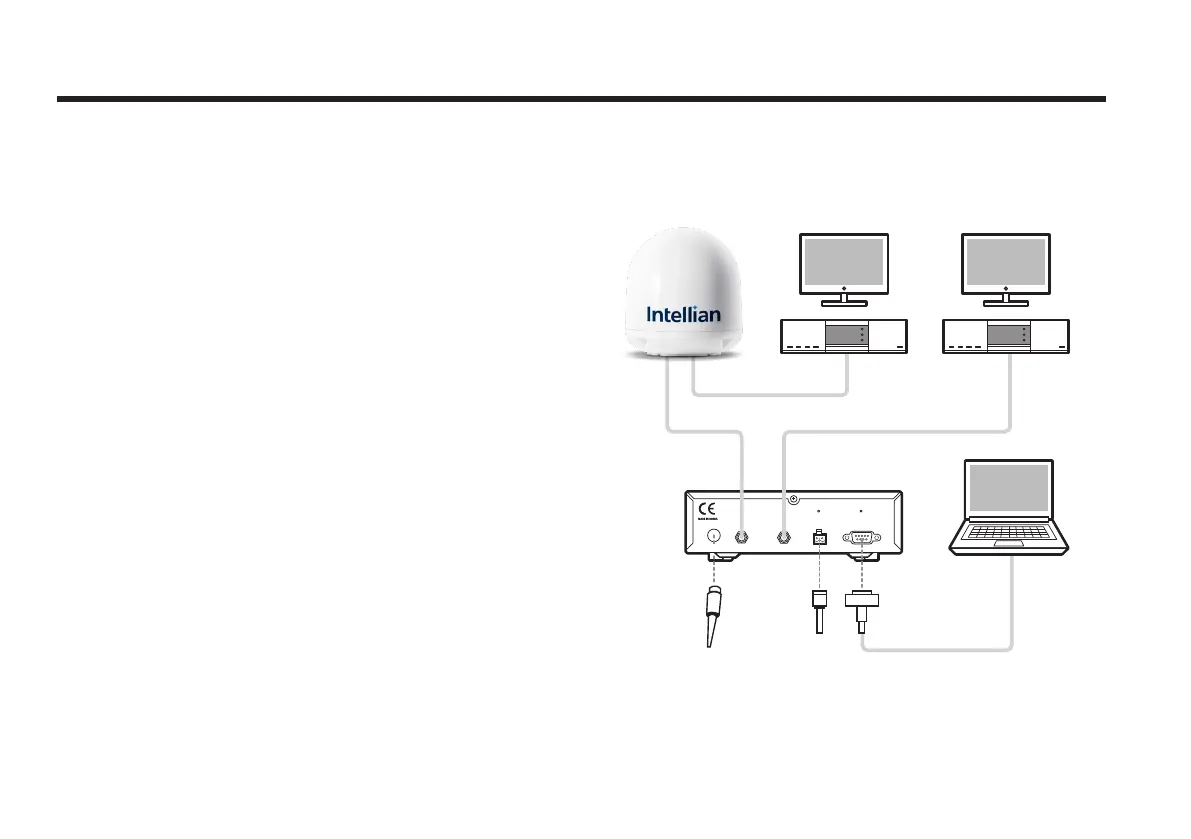

Figure 1 : Basic Conguration
FG - +
+ -
TV
(Not Supplied)
ACU
Adapter
( AC 110~220V )
NMEA GPS
PC (Not Supplied)
Satellite Receiver
(Not Supplied)
NMEA PC INTERFACE
Satellite Receiver
(Not Supplied)
ANT RF1
RECEIVER
TV
(Not Supplied)
DC 24V

Intellian i4 Inland Specifications

General

Brand	Intellian
Model	i4 Inland
Category	Antenna
Language	English
