19
Twin Receivers Connection
You can connect two Receivers for your antenna as shown in the following
diagram. However, only one of the Receivers can be configured as a two
satellite receiver.
The other Receiver needs to be configured as a one satellite receiver.
The two satellite receiver determines which satellite is tracked, while the
other receiver can watch any channel which is available from the tracked
satellite.
As in the single Receiver option the RF cables from the antenna base plate
should be connected to ‘LNB’, ‘ANT’, or ‘Satellite In’ on the rear panel of
Receiver.

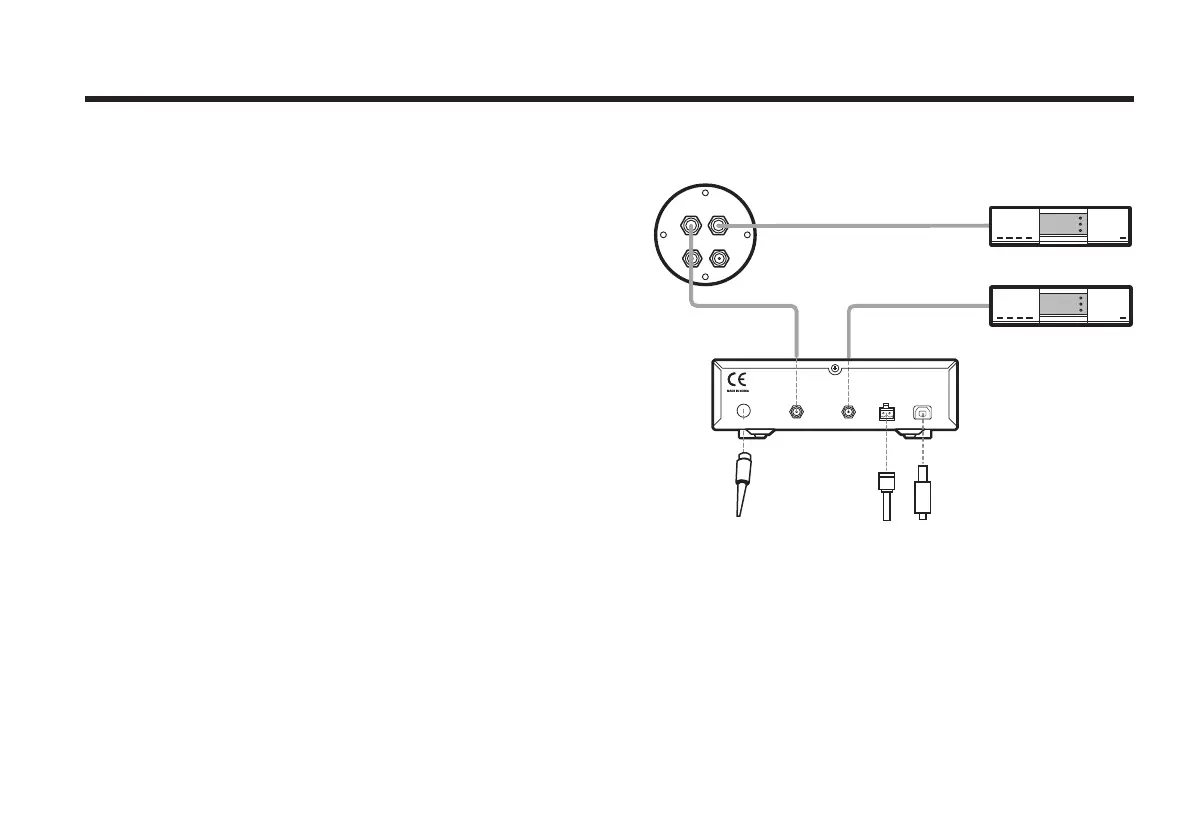

Figure 16 : Twin-Receivers Conguration
IRD1 (Not Supplied)
FG - +
Antenna
ACU
Receiver
Adapter
( AC 110~220V )
+ -
NMEA GPS
NMEA PC INTERFACE
USB Cable
RF3 RF4
RF1 RF2
DC 24V
ANT RF1
RECEIVER
IRD2 (Not Supplied)
To Next Page
