t100W/t100Q – Marine Satellite Television System
14
System Package

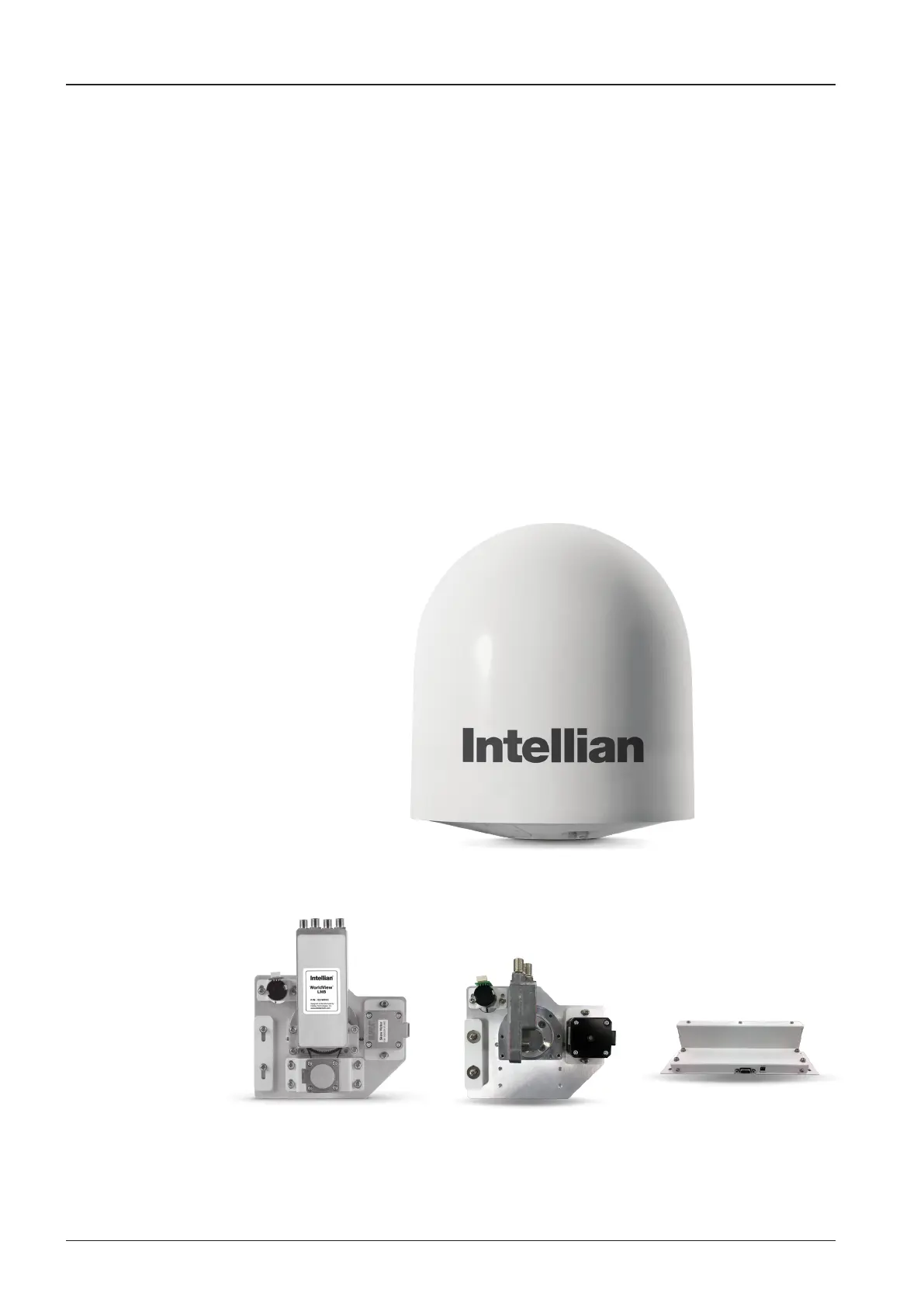

The Intellian t100W/t100Q consists of two major units, an antenna
assembly unit and the antenna control unit.
Antenna Unit
The antenna unit includes an antenna pedestal inside a radome assembly unit. The
pedestal consists of the satellite antenna main dish and sub-reector module with
the WorldView
TM
LNB module(t100W) or the Universal Quad LNB module(t100Q)
mounted on a stabilized pedestal.
The Quattro Switching Module(QSM) can be changed to quad or quattro mode,
making it compatible with all multiswitches.
The radome protects the antenna pedestal assembly unit from the severe marine
environment.
WorldView
TM
LNB module
(For t100W model)
Universal Quad LNB module
(For t100Q model)
Quattro Switching
Module(QSM)
(For t100W/t100Q model)
