Intellian t100W User Manual

t100W/t100Q – Marine Satellite Television System
34
Mounting the ACU
NOTE: Ensure that the cable's length is long enough to allow the ACU to be pulled
out from the rack.
Intellian supplies two types of mounting methods (a)19” Rack Mount Type and (b)
Table Mount Type to mount your ACU.

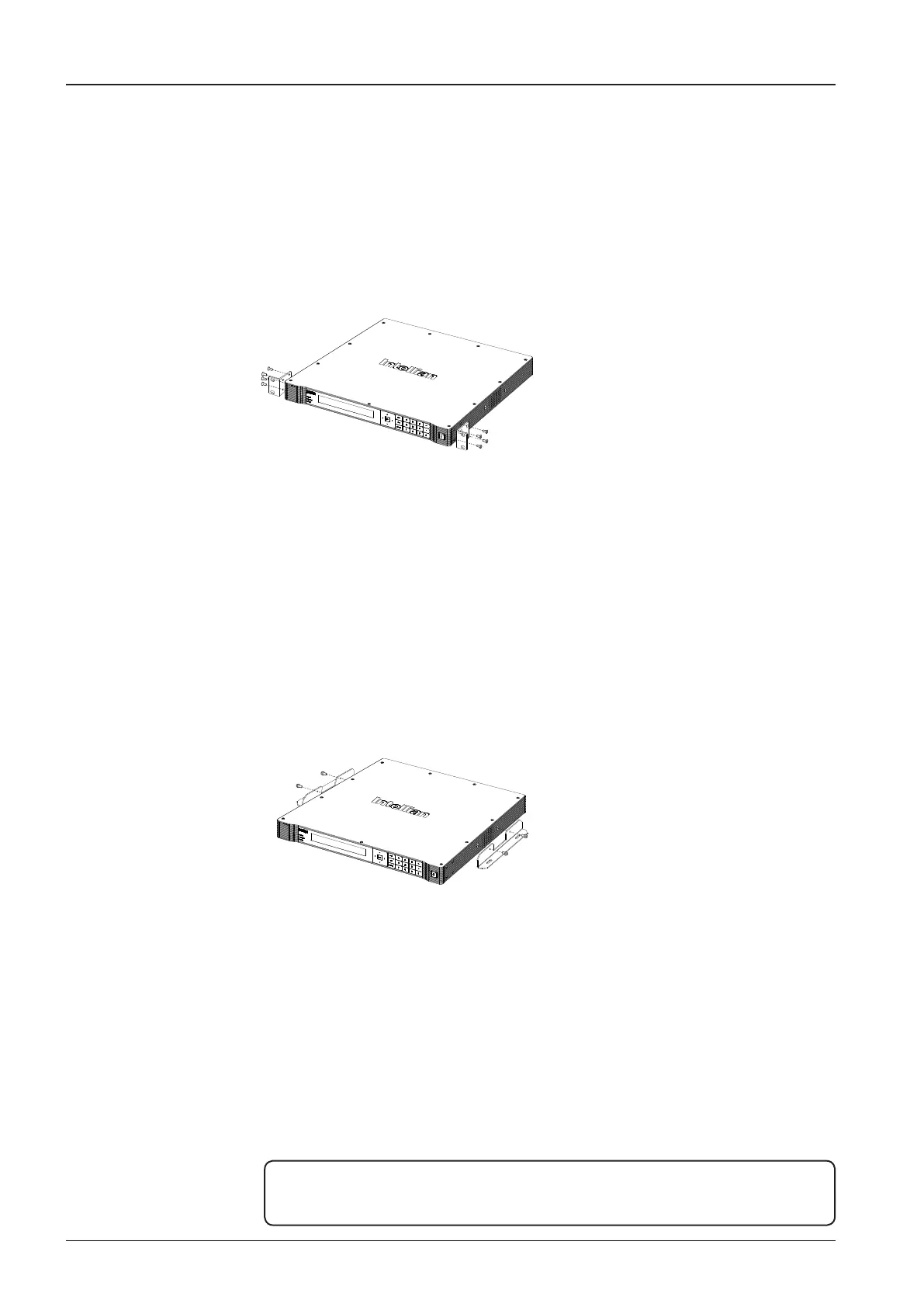

Figure 01. 19" Rack Mount Type
Figure 02. Table Mount Type
19” Rack Mount Type
- The ACU should be installed using the two supplied Rack Mounting Brackets
which allow for a side 19” rack mounting conguration.
- Using the Flat Head Screw supplied, attach the mounting brackets to the sides of
the ACU.
- Place the ACU in the location where it is going to be installed.
- Connect the cables to the rear of the ACU.
Table Mount Type
- The ACU should be installed using the two supplied Table Mounting Brackets
which allow for a top or bottom mounting conguration.
- Using the Sems Bolt supplied, attach the mounting brackets to the sides of the
ACU.
- Place the ACU in the location where it is going to be installed.
- Using a pencil to mark the 4 hole positions (2 each side), and use the appropriate
drill bit to screw down the brackets.
- Connect the cables to the rear of the ACU.
