INSTALLING THE ACU
ACU Dimensions
Selection of ACU Installation Site
• The ACU should be installed below deck, in a location that is:
• Dry, cool, and ventilated.
• Easily accessible from your main TV viewing area.

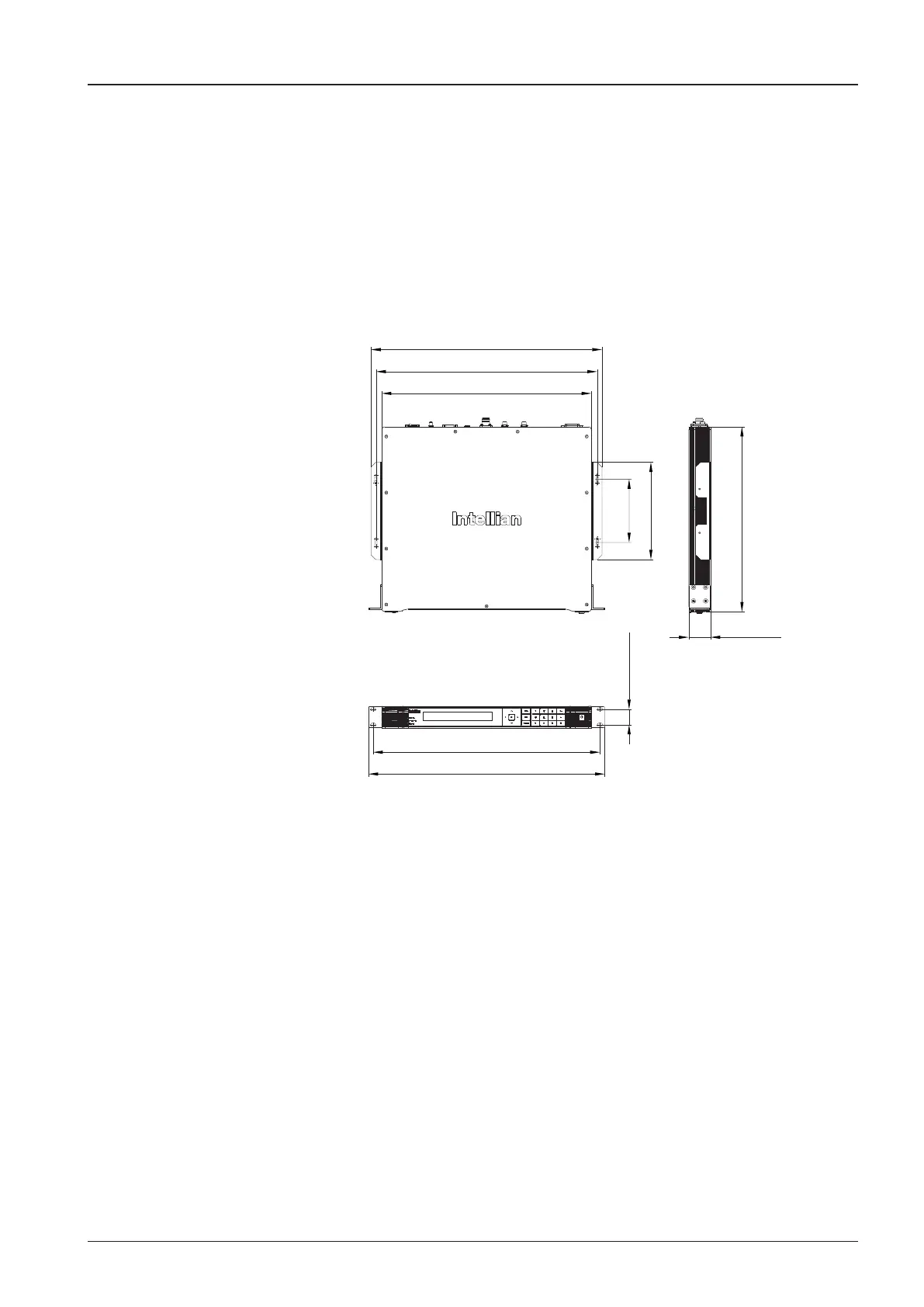

Figure 03. Dimension of ACU
13.0 cm (5.1")
43.1 cm (17")
45.5 cm (17.9")
47.5 cm (18.7")
20.0 cm (7.9")
46.6 cm (18.4")
3.2 cm (1.3")
48.5 cm (19.1")
4.4 cm (1.7")
38.0 cm (15")
